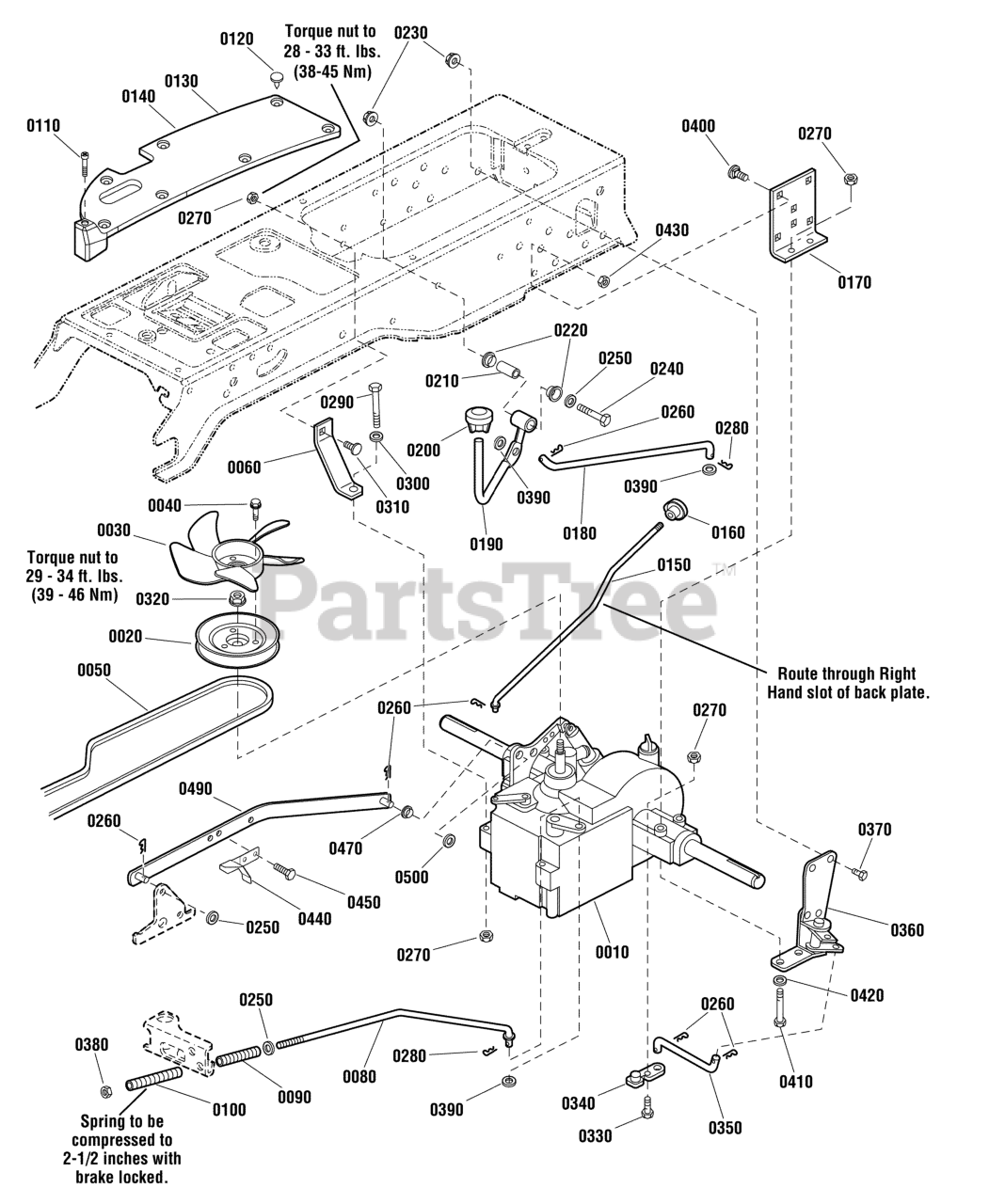

107.250060 (2691087-00) - Craftsman CTX9500 Series 52" Lawn Tractor, 26hp (2012) Transmission Group Parts Diagram

CTX9500 Series 52" Lawn Tractor, 26hp

Transmission Group Parts Diagram

  • Title

0010

Murray 1733941SM

TRANSMISSION ASSEMBLY, K66L Transmission

$2592.99

$

Usually ships in 2-12 days

0

0020

Murray 1722194SM

PULLEY & HUB ASSEMBLY, Transmission

$86.99

$

In Stock, only 1 left!

0

0030

Murray 1719233SM

FAN, 5 Blades, 3 Holes

$27.99

$

Usually ships in 2-12 days

0

0040

Murray 1933958SM

CAPSCREW, Hex Washer Head Taptite, 1/4-20 x 1-1/8

$4.49

$

In Stock, only 1 left!

0

0050

Murray 1721392SM

V-BELT

$54.99

$

In Stock, Qty 20+

0

0060

Murray 1721593ASM

STRAP, 4-1/4 Long

$32.99

$

Usually ships in 2-12 days

0

0080

Murray 1721424SM

ROD, Brake, 17-27/64 Long

$13.99

$

Usually ships in 2-12 days

0

0090

Murray 1722684SM

SPRING, Compression

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 1729277SM

SPRING, Compression

$6.99

$

In Stock, only 1 left!

0

0110

Murray 1960676SM

SCREW, Pan Head Torx Taptite, 1/4-20 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 1704351SM

FASTENER, 11/16" Long, Stem Plastic

$4.99

$

In Stock, only 4 left!

0

0130

Murray 1722174SM

PAD, Footrest, LH, Differential Lock

$30.99

$

Usually ships in 2-12 days

0

0140

Murray 1722173SM

PAD, Footrest, RH

$32.99

$

Usually ships in 2-12 days

0

0150

Murray 1721622SM

ROD, Free Wheel, 18-3/16 Long

$15.99

$

Usually ships in 2-12 days

0

0160

Murray 1723126SM

KNOB, 3 Sided Soft

$6.99

$

In Stock, only 2 left!

0

0170

Murray 1721728ASM

SUPPORT

$14.99

$

Usually ships in 2-12 days

0

0180

Murray 1722151SM

ROD, Differential Lock, 15-3/16 Long

$13.99

$

Usually ships in 2-12 days

0

0190

Murray 1721360SM

ROD & TUBE ASSEMBLY, Differential Lock Pedal
(Superseded to 1721360AYP)

$50.99

$

Usually ships in 2-12 days

0

0200

Murray 1716289SM

KNOB, Hole, 1/2 x 1-3/4, 2-11/16

$13.99

$

In Stock, only 1 left!

0

0210

Murray 1669105SM

SPACER, 25/64 x 5/8 x 1-1/2, Hardened

$13.99

$

In Stock, only 2 left!

0

0220

Murray 1676148SM

BUSHING, 5/8 x 3/4 x 13/32, Powder Metal

$5.99

$

In Stock, Qty 20+

0

0230

Murray 1928352SM

NUT, Hex Flange Whiz Lock, 3/8-16, Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

0240

Murray 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

0250

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0260

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0270

Murray 1960686SM

NUT, Hex Flagne ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0280

Murray 1918447SM

PIN, Cotter, 3/4, Black
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0290

Murray 1921719SM

CAPSCREW, Hex Head, 5/16-18 x 2-1/2
(Superseded to 703868)

$4.99

$

In Stock, only 3 left!

0

0300

Murray 1960141SM

WASHER, 5/16

$3.99

$

Usually ships in 2-12 days

0

0310

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Murray 1719968SM

NUT, Hex Flange, M10-1.5, Nylon Insert

$3.49

$

In Stock, only 1 left!

0

0330

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0340

Murray 1722383SM

ARM, Differential Lock

$11.99

$

In Stock, only 1 left!

0

0350

Murray 1722152SM

ROD, Differential Latch, 2 Bends, 6-3/16 Long

$11.99

$

Usually ships in 2-12 days

0

0360

Murray 1722903SM

PIVOT ASSEMBLY, Differential Lock
(Superseded to 1722903AYP)

$114.99

$

Usually ships in 2-12 days

0

0370

Murray 1921210SM

CAPSCREW, Hex Head, 3/8-16 x 1, Black
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

0380

Murray 1960687SM

NUT, Hex Flange ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

0390

Murray 1918267SM

WASHER, 7/16

$3.99

$

In Stock, only 1 left!

0

0400

Murray 1931350SM

CARRIAGE BOLT, 3/8-16 x 1
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

0410

Murray 1960590SM

CAPSCREW, Hex Head, 5/16-18 x 3
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0420

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0430

Murray 1960637SM

NUT, Hex KEPS, 3/8-16

$3.49

$

In Stock, only 1 left!

0

0440

Murray 1727215ASM

ACTUATOR, Switch

$21.99

$

Usually ships in 2-12 days

0

0450

Murray 1924856SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0470

Murray 1722648SM

BEARING, Nyliner

$6.99

$

Usually ships in 2-12 days

0

0490

Murray 1726757SM

ARM & WELD PINS ASSEMBLY, Control K66

$73.99

$

Usually ships in 2-12 days

0

0500

Murray 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0
