107.250060 (2691087-00) - Craftsman CTX9500 Series 52" Lawn Tractor, 26hp (2012) Hood, Grille & Dash Group Parts Diagram

CTX9500 Series 52" Lawn Tractor, 26hp

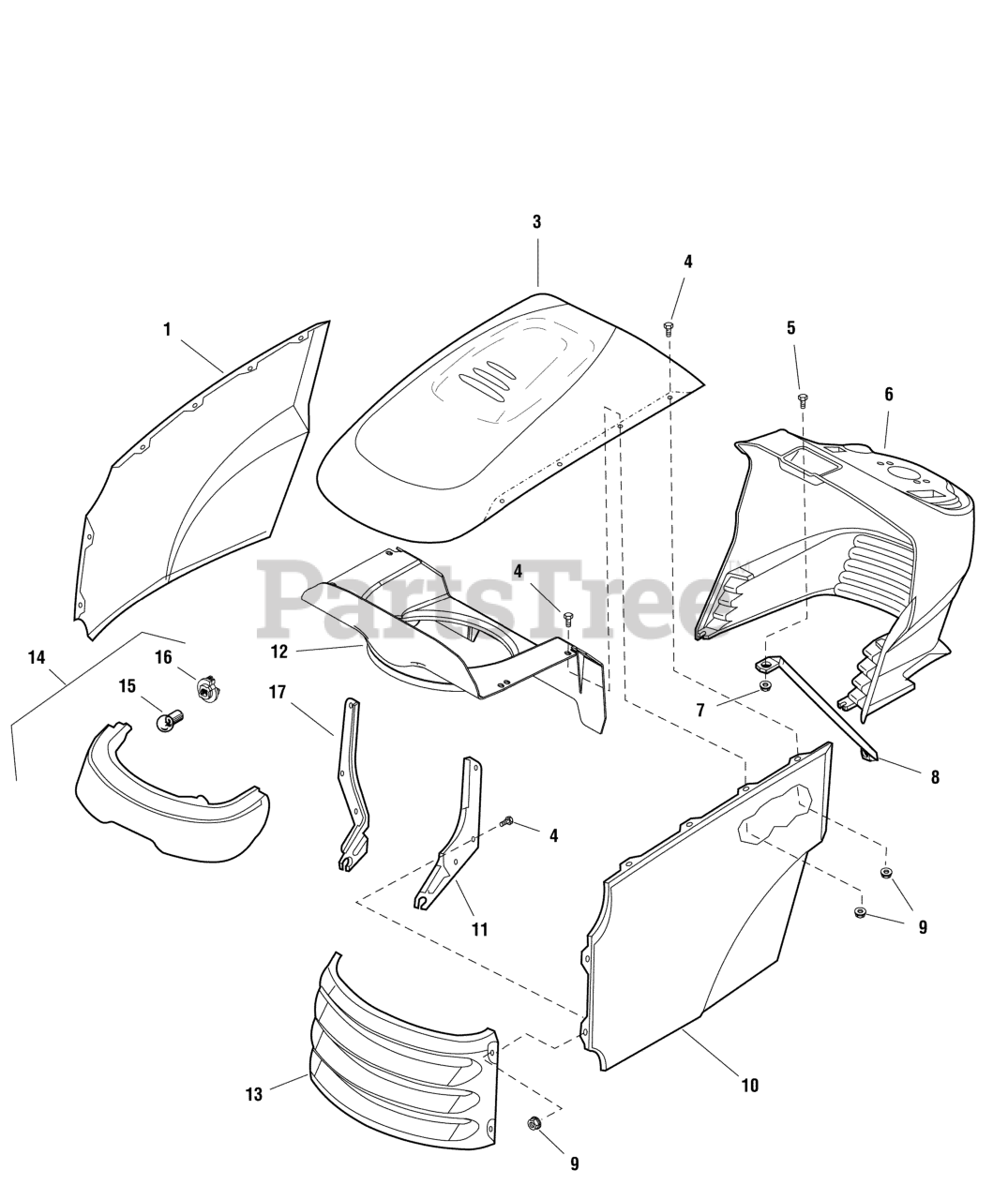

Hood, Grille & Dash Group Parts Diagram

  • Title

1

Murray 1721804ZYP

PANEL, RH Side

$185.99

$

Usually ships in 2-12 days

0

3

Murray 1722110ZYP

HOOD, with Louvers

$141.99

$

Usually ships in 2-12 days

0

4

Murray 1960295SM

CAPSCREW, Hex Head Flange Lock,1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

5

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

6

Murray 1687054SM

DASHBOARD, RMO, Black

$173.99

$

Usually ships in 2-12 days

0

7

Murray 1933896SM

NUT, Hex Nylock,#10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

8

Murray 1723123SM

ROD, Dash Support

$11.99

$

Usually ships in 2-12 days

0

9

Murray 1930641SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

10

Murray 1721803ZYP

PANEL, LH Side

$

$

Not available

11

Murray 1721808ASM

HINGE, LH

$29.99

$

In Stock, only 3 left!

0

12

Murray 1722391ASM

DUCT, Air Inlet
(Superseded to 7102326YP)

$131.99

$

In Stock, only 1 left!

0

13

Murray 1721802BRYP

GRILLE

$103.99

$

Usually ships in 2-12 days

0

14

Murray 1721810SM

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 15 & 16)

$164.99

$

Usually ships in 2-12 days

0

15

Murray 1677371SM

BULB, Headlight

Note: (Included with Ref. No. 14)

$30.99

$

In Stock, only 1 left!

0

16

Murray 1723451SM

SOCKET, Headlight

Note: (Included with Ref. No. 14)

$28.99

$

In Stock, only 1 left!

0

17

Murray 1721809ASM

HINGE, RH

$29.99

$

In Stock, only 1 left!

0
