107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) Lift Group - Manual Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

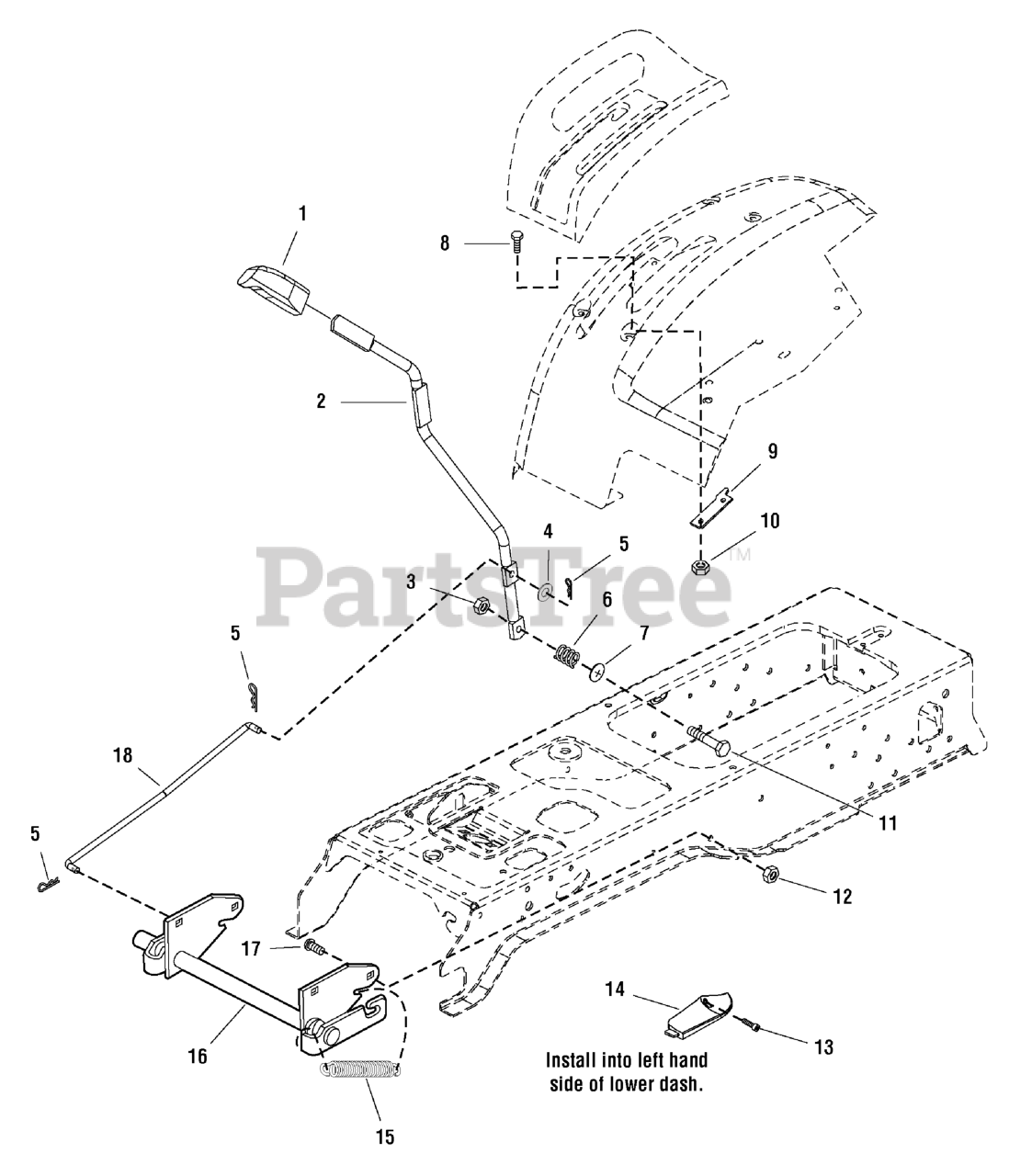

Lift Group - Manual Parts Diagram

  • Title

1

Murray 1722302SM

GRIP, Black Vinyl

$8.49

$

In Stock, Qty 10

0

2

Murray 1722024ASM

ROD, Lift Lever with Flats

$37.99

$

In Stock, only 1 left!

0

3

Murray 1930645SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Murray 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

6

Murray 2162085SM

SPRING, Compression

$6.99

$

In Stock, Qty 7

0

7

Murray 5025472YP

NUT, Push, 3/8
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0

8

Murray 1923341SM

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 8

0

9

Murray 1722284ASM

QUADRANT

$6.49

$

Usually ships in 2-12 days

0

10

Murray 1920397SM

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

12

Murray 1960636SM

NUT, KEPS Lock, 5/16-18

$4.99

$

In Stock, only 1 left!

0

13

Murray 1722607SM

SCREW, Torx Head, # 8-16 x 1/2

$3.99

$

In Stock, only 1 left!

0

14

Murray 1722285SM

COVER, Dash

$6.99

$

Usually ships in 2-12 days

0

15

Murray 2156302SM

SPRING, Extension, 4-1/8

$6.49

$

In Stock, Qty 20+

0

16

Murray 1727437ASM

LIFT SHAFT ASSEMBLY

$109.99

$

Usually ships in 2-12 days

0

17

Murray 1931333SM

CARIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Murray 1725638SM

ROD, Lift

$23.99

$

Usually ships in 2-12 days

0
