107.250050 (2691086-00) - Craftsman CTX9000 Series 46" Lawn Tractor, 22hp (2012) 46" Mower Deck - Housing, Arbors & Blades Parts Diagram

CTX9000 Series 46" Lawn Tractor, 22hp

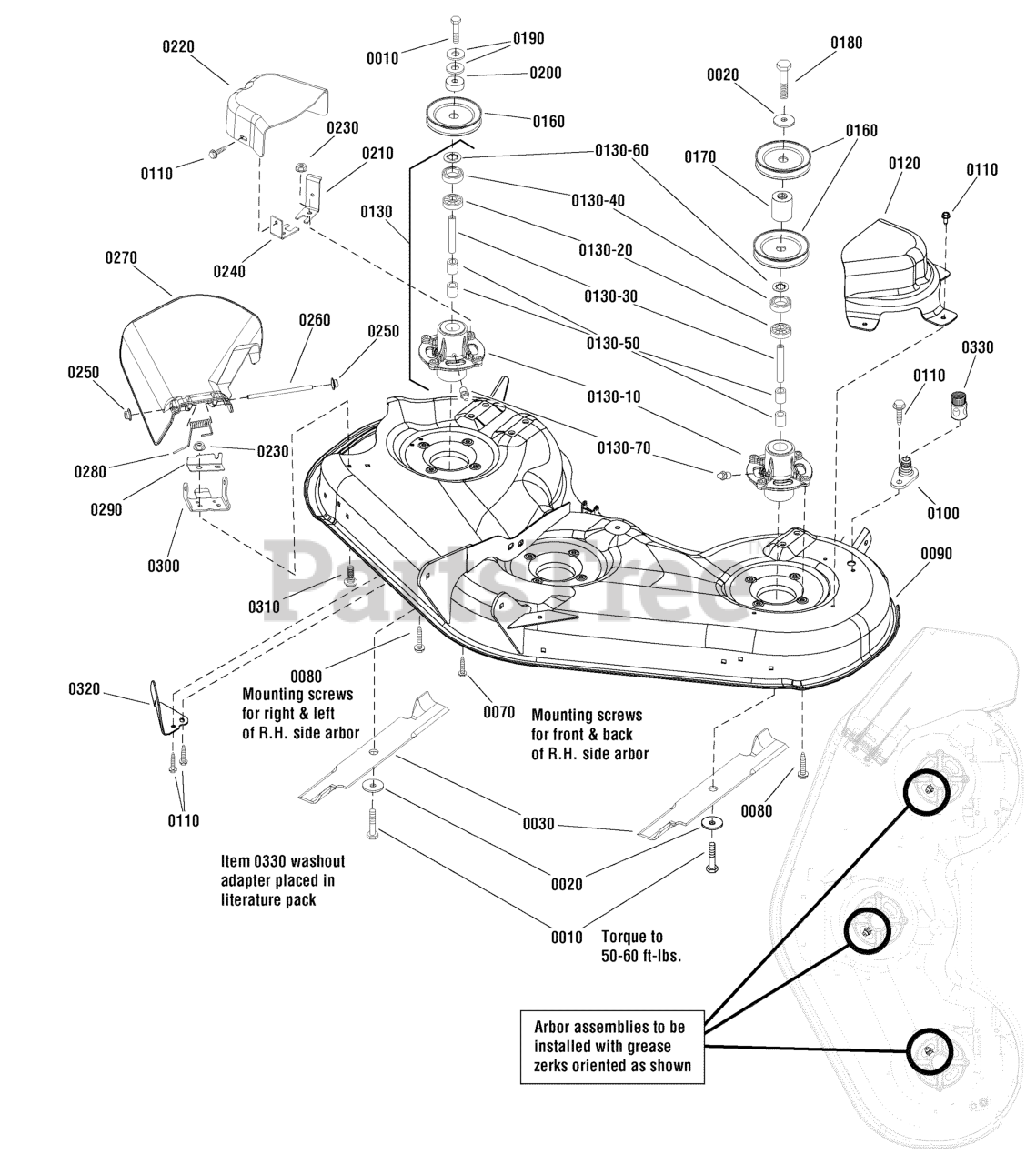

46" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

0010

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 16

0

0020

Murray 1656916SM

WASHER, Spring, 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0030

Murray 1737252AYP

BLADE, Mower, 18-1/2 Long
(Superseded to 1687440YP)

$

$

Not available

0070

Murray 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0080

Murray 1960373SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

0090

Murray 1753349ZYP

HOUSING ASSEMBLY, 46"
(Superseded to 1687674YP)

$1829.99

$

Usually ships in 2-12 days

0

0100

Murray 1735716YP

ADAPTER, Washout
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0110

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1735750YP

COVER, Belt, L.H.

$42.99

$

In Stock, only 1 left!

0

0130

Murray 5405811YP

SPINDLE ASSEMBLY
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0130-10

Murray 1737352YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

0130-20

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0130-30

Murray 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0130-40

Murray 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0130-50

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 1 left!

0

0130-60

Murray 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0130-70

Murray 1704314SM

FITTING, Lubrication
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0160

Murray 1735686YP

PULLEY, 4-5/8 OD

$19.99

$

In Stock, only 3 left!

0

0170

Murray 1739567YP

SPACER, Upper drive

$9.99

$

In Stock, Qty 5

0

0180

Murray 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4, G5

$6.49

$

In Stock, only 1 left!

0

0190

Murray 1960769YP

Washer, Belleville

$4.99

$

Usually ships in 2-12 days

0

0200

Murray 1735579YP

SPACER, Lower Drive

$7.49

$

In Stock, only 1 left!

0

0210

Murray 1736519AYP

BRACKET, Belt, Cover, Rear

$9.49

$

In Stock, only 1 left!

0

0220

Murray 1735752YP

COVER, Belt, R.H.

$29.99

$

Usually ships in 2-12 days

0

0230

Murray 1931277SM

NUT, Whix Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0240

Murray 1736518AYP

BRACKET, Belt, Cover, Front

$9.49

$

In Stock, only 1 left!

0

0250

Murray 7012542YP

PUSHNUT, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

0260

Murray 1736366YP

ROD, Deflector

$11.99

$

Usually ships in 2-12 days

0

0270

Murray 1735447YP

DEFLECTOR, Discharge
(Superseded to 1687750YP)

$37.99

$

In Stock, Qty 20+

0

0280

Murray 1736364YP

SPRING, Torsion

$8.49

$

Usually ships in 2-12 days

0

0290

Murray 1737359AYP

PLATE, Deflector, Close Off
(Superseded to 1737359BMYP)

$8.49

$

In Stock, only 3 left!

0

0300

Murray 1736365AYP

HINGE, Deflector
(Superseded to 1736365BMYP)

$12.99

$

In Stock, only 1 left!

0

0310

Murray 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0320

Murray 1737279AYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0330

Murray 1736898YP

WASHOUT PORT, Connector
(Superseded to 1756246YP)

$15.99

$

Usually ships in 2-12 days

0
