107.250040 (2691085-00) - Craftsman CTX9000 Series 42" Lawn Tractor, 20hp (2012) Transmission Group Parts Diagram

CTX9000 Series 42" Lawn Tractor, 20hp

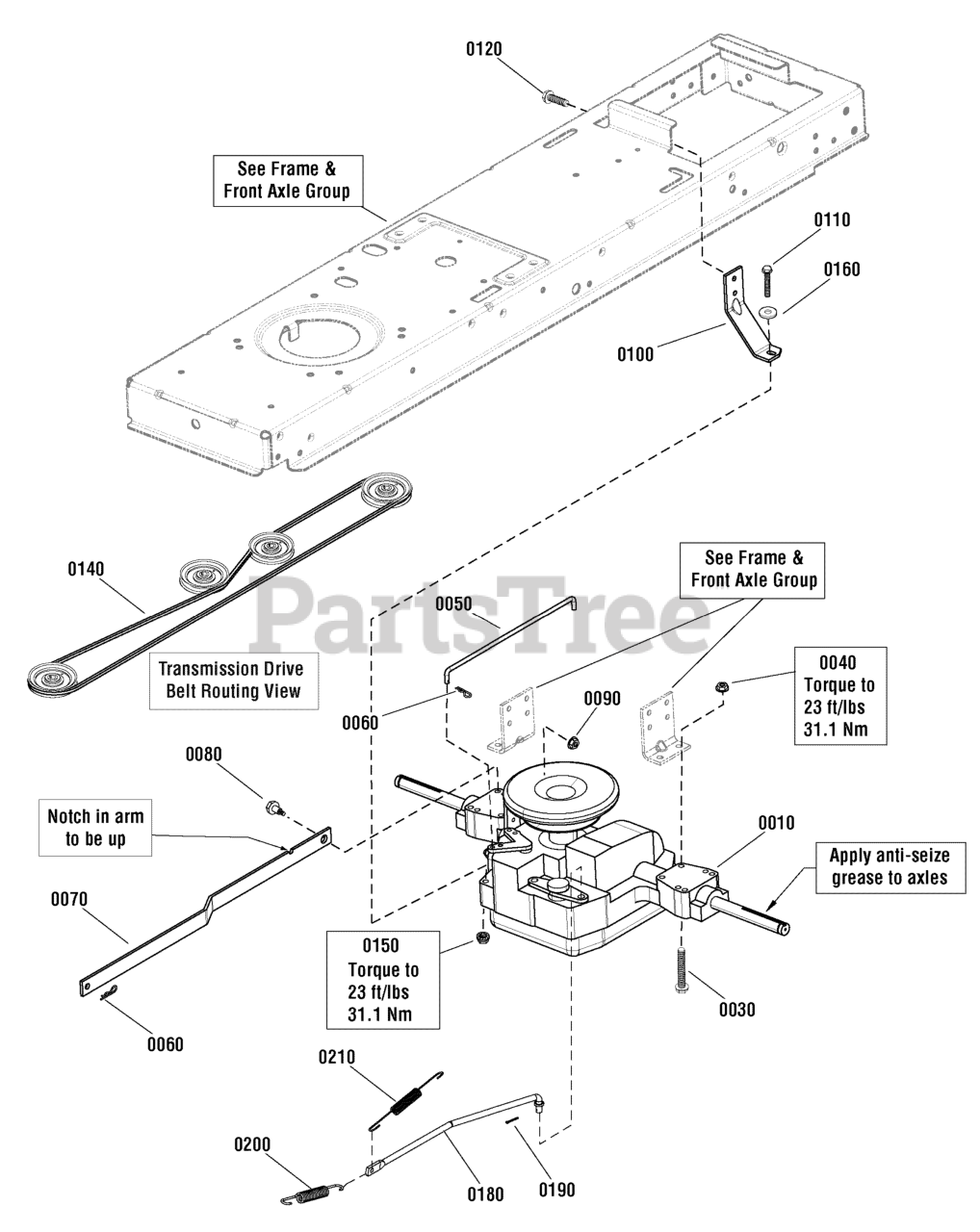

Transmission Group Parts Diagram

  • Title
0010

Murray 1729589SM

TRANSMISSION ASSEMBLY, Tuff Torque, K46BL
(Superseded to 1761325YP)

$1253.99

$

Usually ships in 2-12 days

0

0030

Murray 1960586SM

CAPSCREW, Hex, Whiz Lock, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1728120SM

ROD, Bypass, 1/4 x 11 7/16
(Superseded to 1758474YP)

$10.99

$

In Stock, only 1 left!

0

0060

Murray 1722460SM

PIN, Quick, 1-3/16 Long
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

0070

Murray 1727258ASM

ARM, Control
(Superseded to 1727258SM)

$22.99

$

In Stock, only 1 left!

0

0080

Murray 1732426SM

BOLT, Shoulder, 5/16-18 x 15/32, G5

$4.49

$

In Stock, only 1 left!

0

0090

Murray 1935048SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0100

Murray 1728043ASM

STRAP, Torque
(Superseded to 1754842BMYP)

$11.99

$

In Stock, Qty 20+

0

0110

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 1728008SM

V-BELT, HA, 89-1/4" Long

$47.99

$

In Stock, Qty 20+

0

0150

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1919381SM

WASHER, 5/16 x 1 OD
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 1727253SM

ROD, Brake, 15.1 LG

$16.99

$

Usually ships in 2-12 days

0

0190

Murray 1918447SM

PIN, Cotter, 3/4, Black
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1731262SM

SPRING, Extension, 11/16 x 3-3/8

$9.99

$

Usually ships in 2-12 days

0

0210

Murray 1721995SM

SPRING, Extension, 5/8 x 6-5/8

$8.49

$

Usually ships in 2-12 days

0
