107.249070 (1694842) - Craftsman Grass Catcher (2004) Hopper, Bag & Hitch Group (986501) Parts Diagram

Grass Catcher

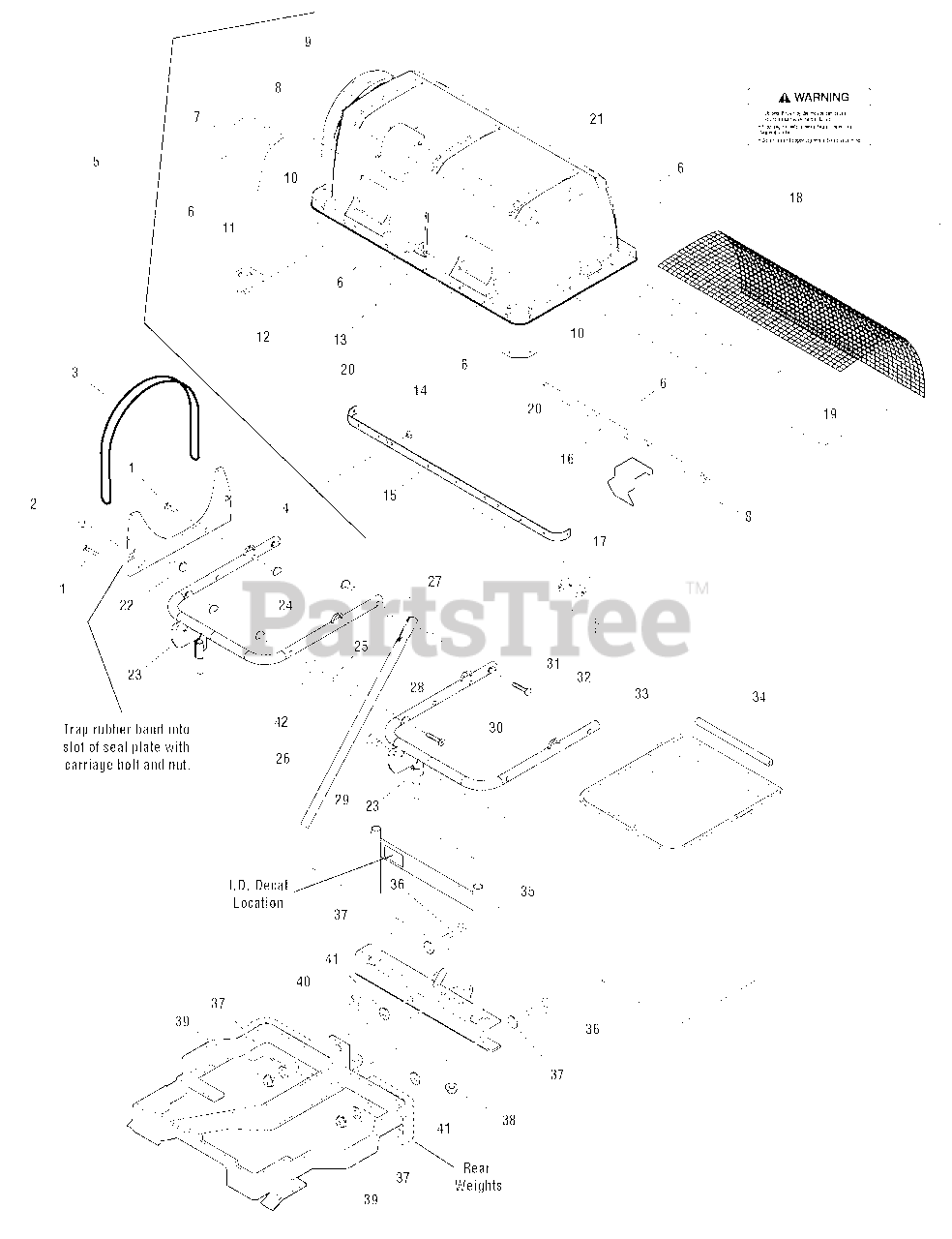

Hopper, Bag & Hitch Group (986501) Parts Diagram

  • Title

1

Murray 1960667SM

CAPSCREW, Hex Flange Whiz Lock Dog Point, 5/16-18 x 1

$4.99

$

Usually ships in 2-12 days

0

2

Murray 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8 G5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

3

Murray 1665872SM

STRAP, Black Rubber

$11.99

$

In Stock, Qty 7

0

4

Murray 1726812ASM

PLATE, Hopper Elbow Seal

$18.99

$

Usually ships in 2-12 days

0

5

Murray 1726362SM

HOPPER TOP ASSEMBLY,

Note: (Includes Ref. Nos. 6 thru 19)

$353.99

$

Usually ships in 2-12 days

0

6

Murray 1673320SM

RIVET, Pop

$4.49

$

In Stock, Qty 8

0

7

Murray 1679819SM

WINDOW, Clear PVC

$9.99

$

Usually ships in 2-12 days

0

8

Murray 1910531SM

WASHER, 3/16

$3.99

$

Usually ships in 2-12 days

0

9

Murray 1726363SM

TOP, Hopper Black Plastic

$132.99

$

Usually ships in 2-12 days

0

10

Murray 1679568SM

SEAL, Corner, Black Rubber

$4.49

$

Usually ships in 2-12 days

0

11

Murray 1726544ASM

HINGE, Hopper Top

$7.99

$

Usually ships in 2-12 days

0

12

Murray 1930594SM

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 3/4
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 1679569SM

SEAL, Center, Black Rubber

$4.49

$

Usually ships in 2-12 days

0

14

Murray 1960694SM

NUT, Hex Flange, 1/4-20 ESNA
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

15

Murray 1726548ASM

STIFFENER, Front Hopper

$19.99

$

Usually ships in 2-12 days

0

16

Murray 1679908ASM

STIFFENER, Rear, 24-13/16 Long

$25.99

$

Usually ships in 2-12 days

0

17

Murray 1726545ASM

LATCH, Hopper

$14.99

$

Usually ships in 2-12 days

0

18

Murray 1716561SM

SCREEN, 1/4 Mesh, 20 x 28

$21.99

$

Usually ships in 2-12 days

0

19

Murray 1679599SM

RETAINER, Screen, Nylon Push In Type

$3.49

$

Usually ships in 2-12 days

0

20

Murray 1960096SM

WASHER, 3/16 x 3/4

$3.99

$

Usually ships in 2-12 days

0

21

Murray 1732819SM

DECAL, Warning Objects Thrown by Mower

$18.99

$

Usually ships in 2-12 days

0

22

Murray 1960686SM

NUT, Hex Flange, 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

23

Murray 1726480ASM

PIPE & SHAFT ASSEMBLY, Support Grass Catcher

$100.99

$

Usually ships in 2-12 days

0

24

Murray 1726616SM

NUT, Pipe 5/16-18

$2.49

$

Usually ships in 2-12 days

0

25

Murray 1667811SM

SPACER, 5/16

$3.49

$

In Stock, Qty 20+

0

26

Murray 1726479ASM

BRACE, Tube Center

$17.99

$

Usually ships in 2-12 days

0

27

Murray 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

28

Murray 1960236SM

SPACER

$6.49

$

In Stock, only 1 left!

0

29

Murray 1672365SM

PIN, Round Head Drilled, 1/2 x 1

$33.99

$

Usually ships in 2-12 days

0

30

Murray 2860718SM

SCREW, Hex Flat Head, 5/16-18 x 2

$3.49

$

Usually ships in 2-12 days

0

31

Murray 1960170SM

WASHER, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

32

Murray 1960074SM

CLIP, Hair Pin Spring Wire, 1-5/8
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

33

Murray 1726367SM

BAG & RIM ASSEMBLY, Grass Catcher

$188.99

$

Usually ships in 2-12 days

0

34

Murray 1700864SM

EDGING, 13-1/8 Long, PVC Tube White

$5.99

$

Usually ships in 2-12 days

0

35

Murray 1726475ASM

HITCH ASSEMBLY, Grass Catcher

$199.99

$

Usually ships in 2-12 days

0

36

Murray 1921968SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/8 G5

Note: (Used on Models without Rear Weights)

$4.49

$

In Stock, only 3 left!

0

36

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2 G5
(Superseded to 703589)

Note: (Used on Models with Rear Weights)

$4.49

$

Usually ships in 2-12 days

0

37

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

38

Murray 1930644SM

NUT, Hex Flange Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

39

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

40

Murray 1921176SM

CAPSCREW, Hex Head, 1/2-13 x 1-1/4 G5

$4.99

$

In Stock, only 1 left!

0

41

Murray 1960071SM

WASHER, Flat

Note: (Used on Models without Rear Weights)

$8.49

$

In Stock, only 1 left!

0

42

Murray 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0
