107.248490 (1687032) - Craftsman Headlight Kit Headlight Kit Parts Diagram

Headlight Kit

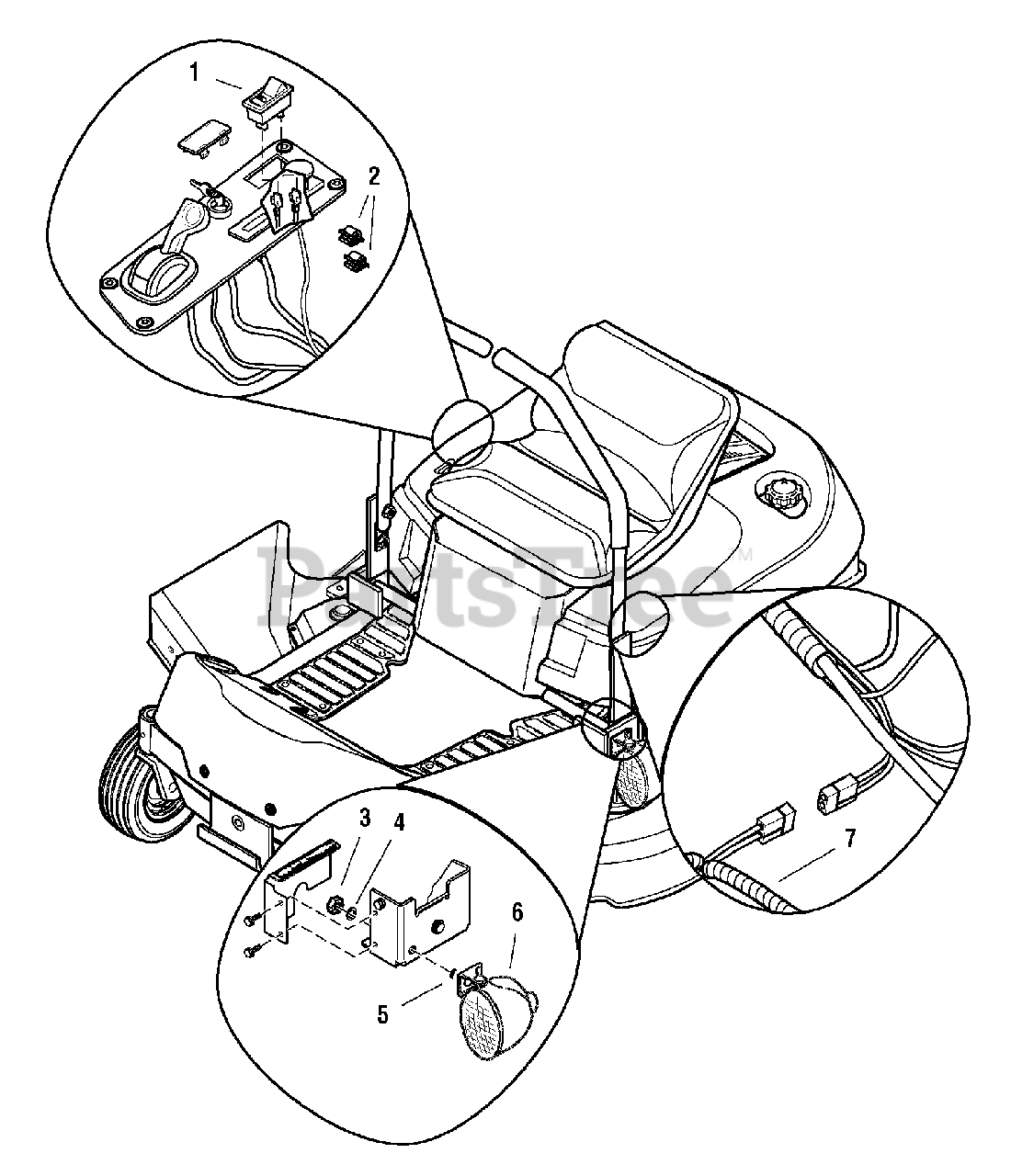

Headlight Kit Parts Diagram

  • Title
1

Murray 5341680

NUT, Hex Lock with Nylon Insert, 5/16-18

$

$

Not available

2

Murray 5640500

WASHER, Lock Helical Spring

$

$

Not available

3

Murray 5341580

BOLT, Carriage, 5/16 - 18 x 1

$

$

Not available

4

1726801

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 1, 2, & 3)

$

$

Not available

5

Murray 1716951

SWITCH, Headlights
(Superseded to 1716951SM)

$21.99

$

In Stock, Qty 6

0

6

Murray 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

7

Murray 1726796

HARNESS, Wire
(Superseded to 1726796SM)

$

$

Not available
