107-1892 - Toro Standard Suspension Seat Kit for Compact and Mid-Size Z Master Mowers SUSPENSION SEAT KIT ASSEMBLY NO. 107-1892 Parts Diagram

Standard Suspension Seat Kit for Compact and Mid-Size Z Master Mowers

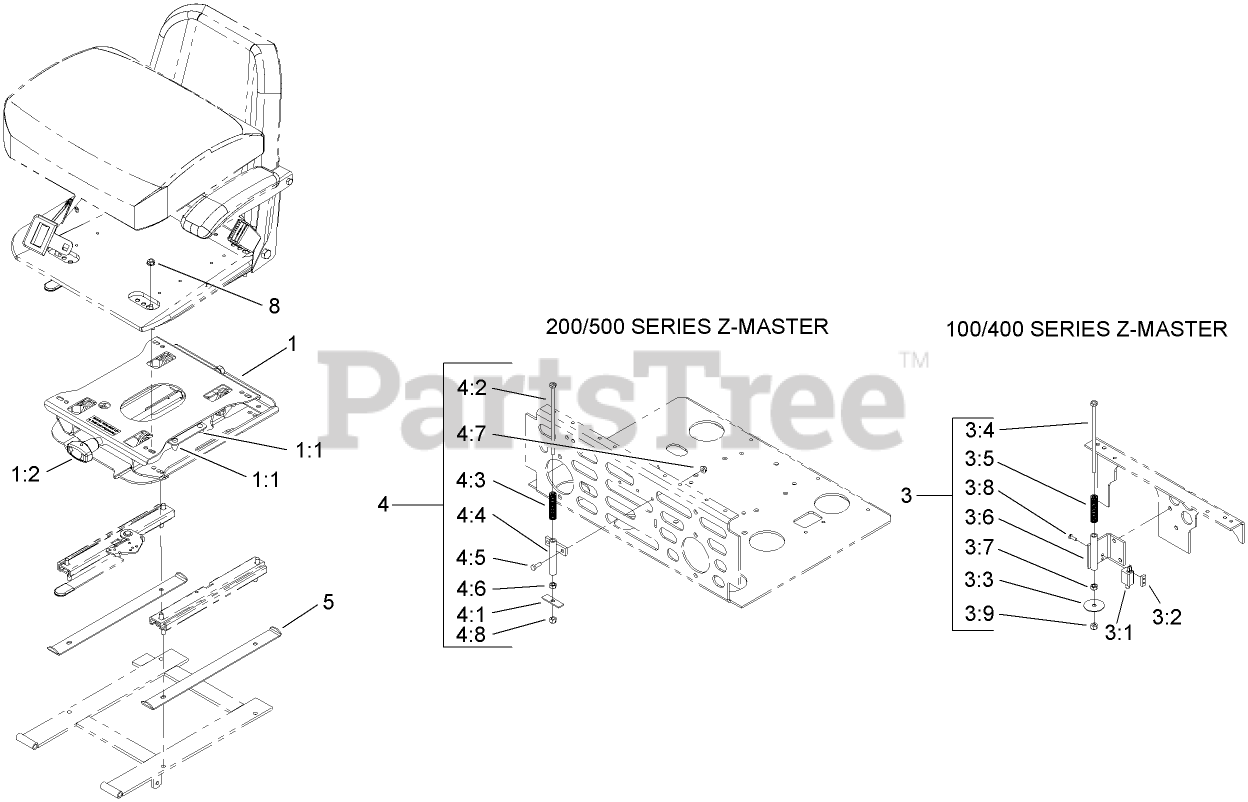

SUSPENSION SEAT KIT ASSEMBLY NO. 107-1892 Parts Diagram

  • Title

1

Toro 103-4755

SEAT-SUSPENSION

$289.99

$

Usually ships in 3-6 days

0

1:1

Toro 103-4757

RUBBER STOPS KIT

$41.99

$

Usually ships in 3-6 days

0

1:2

Toro 103-4758

ADJUSTMENT KNOB KIT

$84.99

$

Usually ships in 3-6 days

0

3

Toro 103-4881

SEAT SWITCH ASM

$123.99

$

Usually ships in 3-6 days

0

3:1

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$13.99

$

In Stock, Qty 15

0

3:2

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

3:3

Toro 1-653036

WASHER

$5.49

$

In Stock, only 2 left!

0

3:4

Toro 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

3:5

Toro 103-4792

SPRING-COMPRESSION

$39.99

$

Usually ships in 3-6 days

0

3:6

Toro 103-5224

BRACKET-SWITCH

$41.99

$

Usually ships in 3-6 days

0

3:7

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

3:8

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3:9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 103-4949

SEAT SWITCH ACTUATOR ASM

$110.99

$

Usually ships in 3-6 days

0

4:1

Toro 1-513180

PLATE-SWITCH, SEAT

$17.99

$

In Stock, only 3 left!

0

4:2

Toro 1-800282

SCREW-HH

$5.49

$

In Stock, only 1 left!

0

4:3

Toro 103-4792

SPRING-COMPRESSION

$39.99

$

Usually ships in 3-6 days

0

4:4

Toro 103-5225

MOUNT-SPRING, SEAT

$22.99

$

Usually ships in 3-6 days

0

4:5

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4:6

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

4:7

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

4:8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 1-633872-03

STOP-SEAT

$47.99

$

Usually ships in 3-6 days

0

8

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
