10697 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) BBC UPPER HANDLE ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

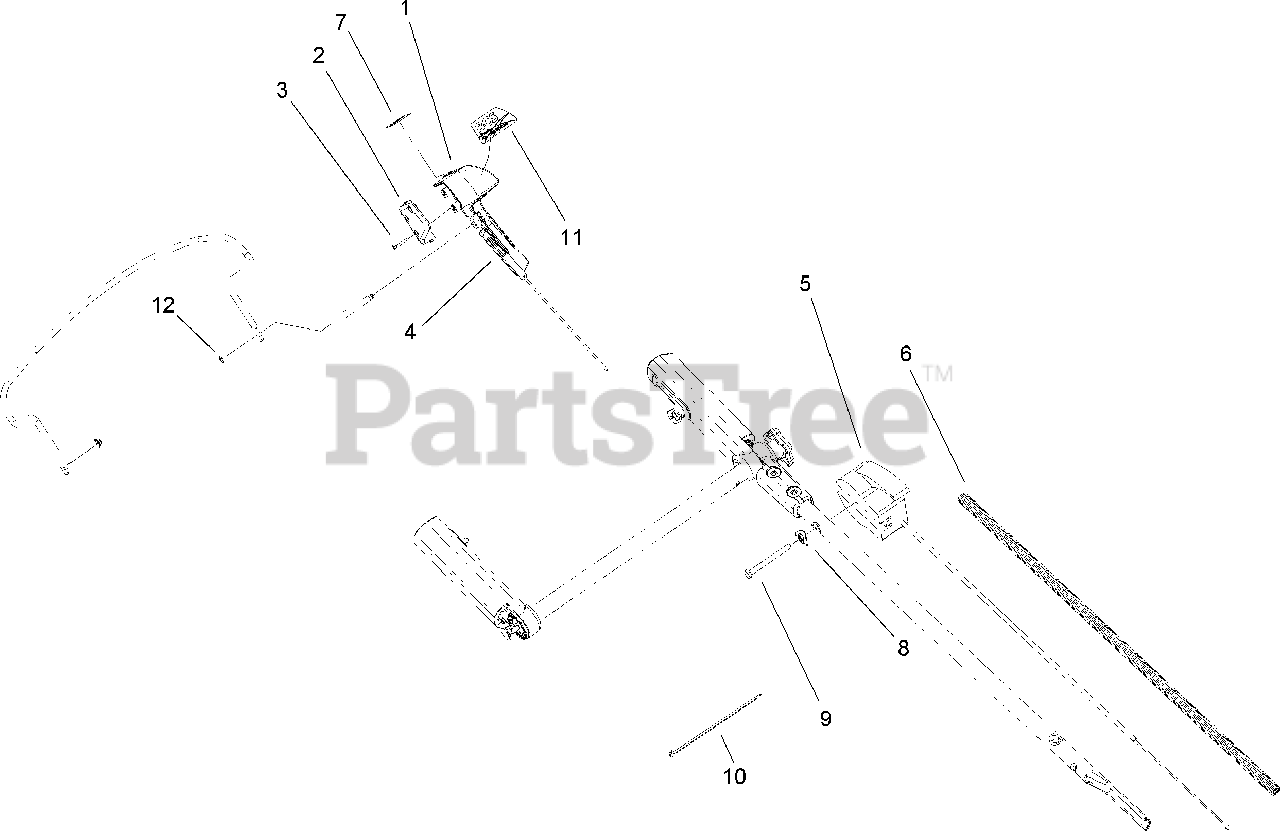

BBC UPPER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 108-9305

PIVOT ASM

$

$

Not available

2

Lawn-Boy 108-7532

COVER-SWITCH

$7.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 108-7520

CABLE-BRAKE

$55.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 108-9338

CABLE-THROTTLE
(Superseded to 119-0275)

$102.99

$

In Stock, only 1 left!

0

6

$

$

Not available

7

Lawn-Boy 108-9393

DECAL-BLADE, BBC

$

$

Not available

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 108-9394

DECAL-CONTROL, BLADE

$

$

Not available

12

Lawn-Boy 110-1758

RING-RETAINING

$1.49

$

In Stock, Qty 20+

0
