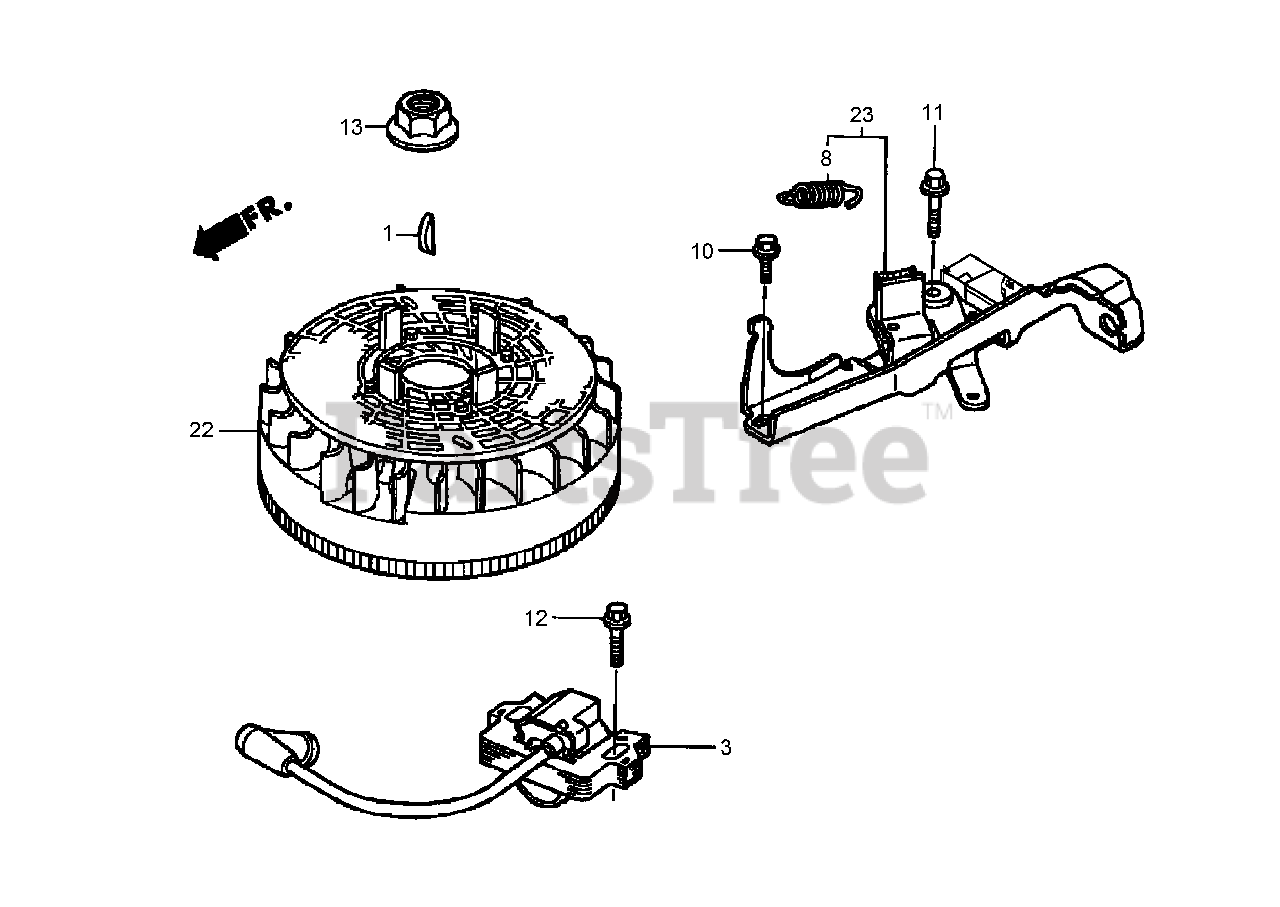

10696 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) FLYWHEEL ASSEMBLY HONDA GCV160A RTL1 Parts Diagram

Insight Gold Walk-Behind Mower

FLYWHEEL ASSEMBLY HONDA GCV160A RTL1 Parts Diagram

  • Title
1

Lawn-Boy 13331-357-000

KEY-WOODRUFF (25X18)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 30500-Z0J-003

IGNITION COIL ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 75113-ZM0-000

SPRING-LEVER, BRAKE

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

10

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

11

Lawn-Boy 90002-Z0L-820

BOLT-FLANGE (6X23) (CT200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

12

Lawn-Boy 90022-888-010

BOLT-FLANGE (6X20)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

13

Lawn-Boy 90201-878-003

NUT (14MM)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

22

Lawn-Boy 31105-Z0L-820

FLYWHEEL ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

23

Lawn-Boy 75110-Z0L-821

BRAKE SUB-ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
