10696 C - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) FRONT END AND TUNNEL ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

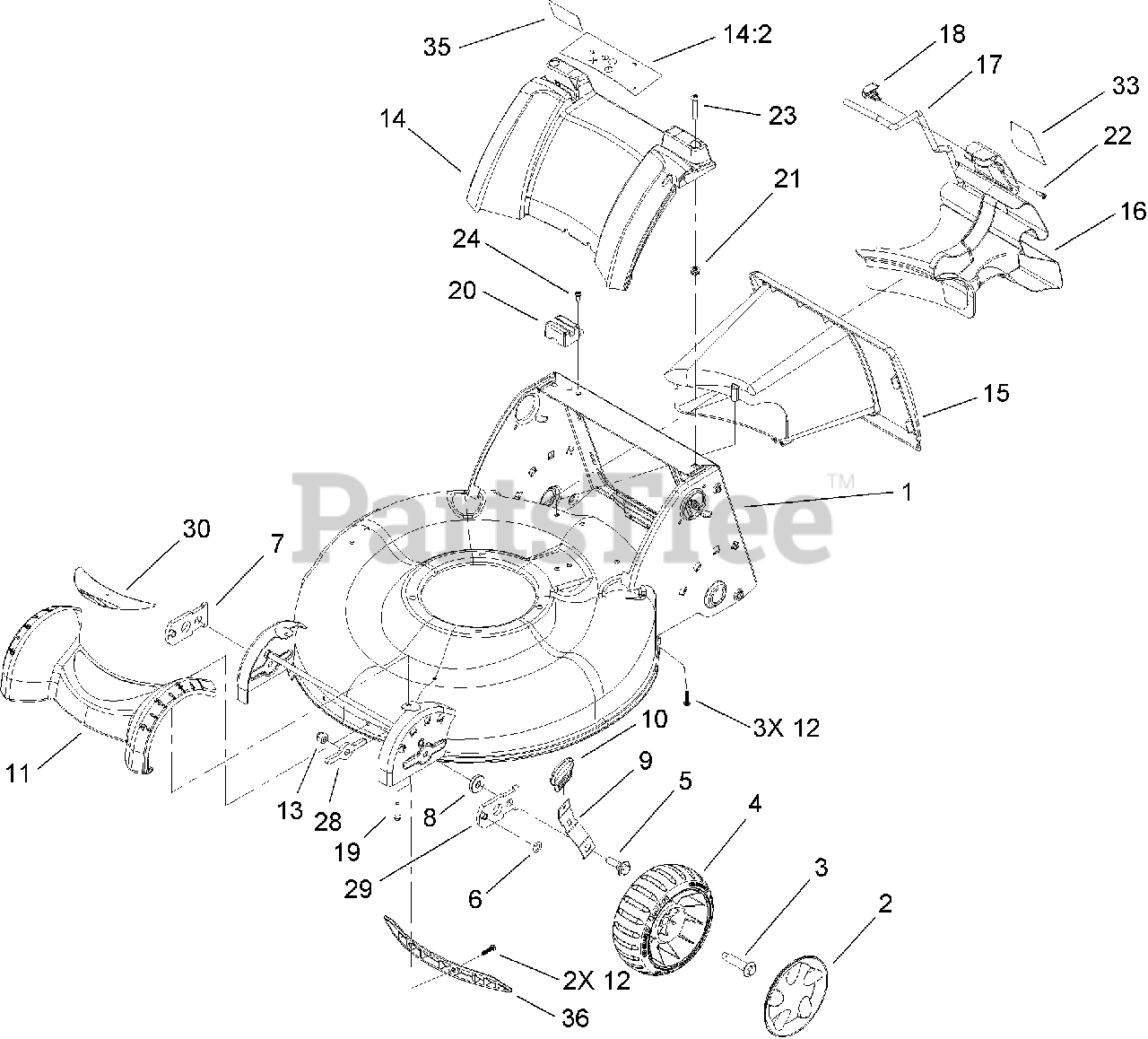

FRONT END AND TUNNEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 108-9346

HOUSING ASM
(Superseded to 114-2827)

$258.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 107-3886

COVER-WHEEL, 7 INCH
(Superseded to 117-5964)

$22.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

4

Lawn-Boy 107-3891

7 INCH WHEEL ASM
(Superseded to 117-5964)

$22.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, Qty 6

0

6

$2.99

$

In Stock, Qty 18

0

7

Lawn-Boy 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

8

$8.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 107-3878

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

11

Lawn-Boy 107-3926

COVER-FRONT

$42.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 10

0

13

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

14

Lawn-Boy 108-9395

COVER-REAR

$

$

Not available

14:2

Lawn-Boy 104-7909

DECAL-WARNING

$

$

Not available

15

Lawn-Boy 107-3881

TUNNEL
(Superseded to 110-9456)

$44.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 107-3907

PLUG-CHUTE

$32.99

$

In Stock, only 1 left!

0

17

Lawn-Boy 108-1038

LATCH-PLUG

$32.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 108-0956

RETAINER-LATCH

$2.99

$

In Stock, only 2 left!

0

19

Lawn-Boy 108-7475

SCREW-PLASTITE

$4.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 108-0990

MODULE-SWITCH
(Superseded to 110-1787)

$55.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 9

0

22

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 105-6849

SCREW-THREAD FORMING

$1.49

$

In Stock, only 3 left!

0

28

Lawn-Boy 108-1048

WASHER-SUPPORT, FRONT

$

$

Not available

29

Lawn-Boy 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

$5.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 107-1940

DECAL-MULCH PLUG, CE

$

$

Not available

35

Lawn-Boy 107-1939

DECAL-BAG ATTACHMENT, CE

$

$

Not available

36

Lawn-Boy 108-7502

INSERT-HOUSING

$11.99

$

In Stock, only 1 left!

0

39

Lawn-Boy 107-1948

MULCH PLUG ASM

Note: Not illustrated

$

$

Not available
