10694 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 270000001 - 270999999) (2007) BLADE AND ENGINE ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

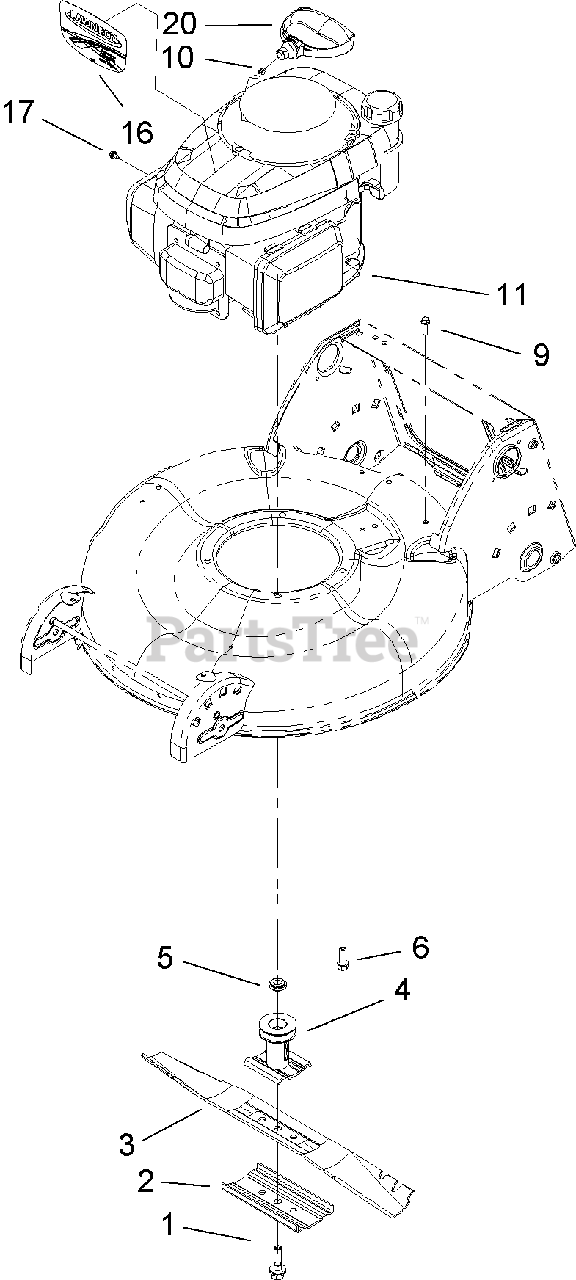

BLADE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$11.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-03)

$26.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$34.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1624

SCREW
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$8.49

$

Usually ships in 3-6 days

0

11

ENGINE-HONDA, GCV160A STL1

Note: Not serviced separately Obtain from your local Honda dealer

$

$

Not available

16

Lawn-Boy 108-7529

DECAL

$8.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 98-1394

SCREW-HWH

$4.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 110-1778

HANDLE-RECOIL

$32.99

$

In Stock, Qty 6

0
