10694 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 250000001 - 250999999) (2005) LOWER HANDLE ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

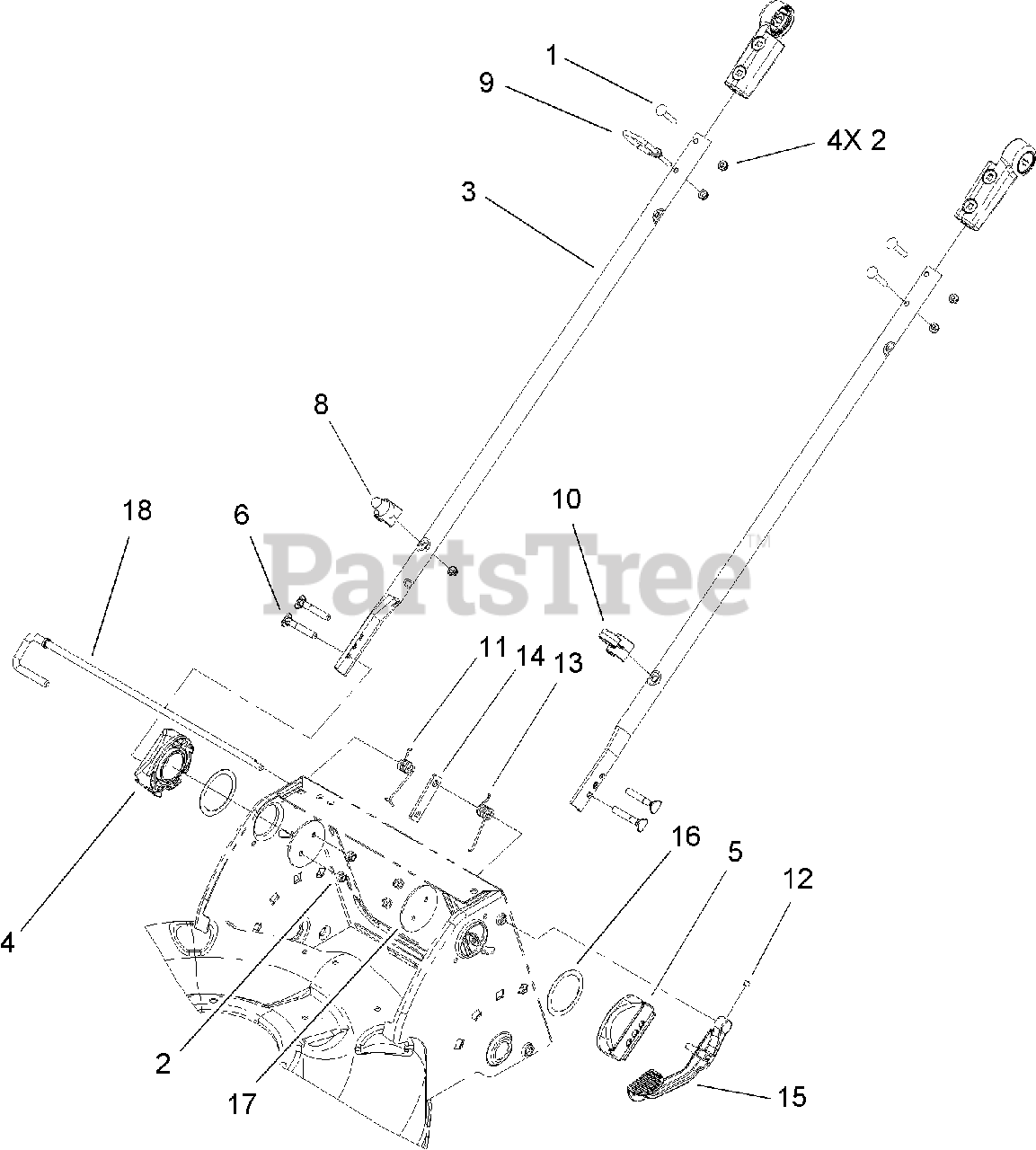

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

3

$30.99

$

In Stock, Qty 5

0

4

Lawn-Boy 108-9339-03

MOUNT-HANDLE, RH
(Superseded to 119-3847-03)

$17.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 108-9340-03

MOUNT-HANDLE, LH
(Superseded to 119-3847-03)

$17.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 108-0994

GUIDE-ROPE, LOWER
(Superseded to 117-4141)

$13.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

11

Lawn-Boy 108-0952

SPRING-TORSION, LH

$9.99

$

In Stock, only 1 left!

0

12

Lawn-Boy 108-0989

SCREW-SET

$1.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 108-0953

SPRING-TORSION, RH

$9.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 107-3946

PLATE-LOCK, HANDLE

$6.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 108-0985-03

LEVER-RELEASE
(Superseded to 112-1502)

$71.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 107-3947

WASHER-NYLON

$1.49

$

In Stock, Qty 8

0

$5.99

$

In Stock, Qty 8

0

18

Lawn-Boy 107-3892

ROD-RELEASE
(Superseded to 112-1502)

$71.99

$

In Stock, only 4 left!

0
