10687 - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362077D Parts Diagram

Insight Walk-Behind Mower

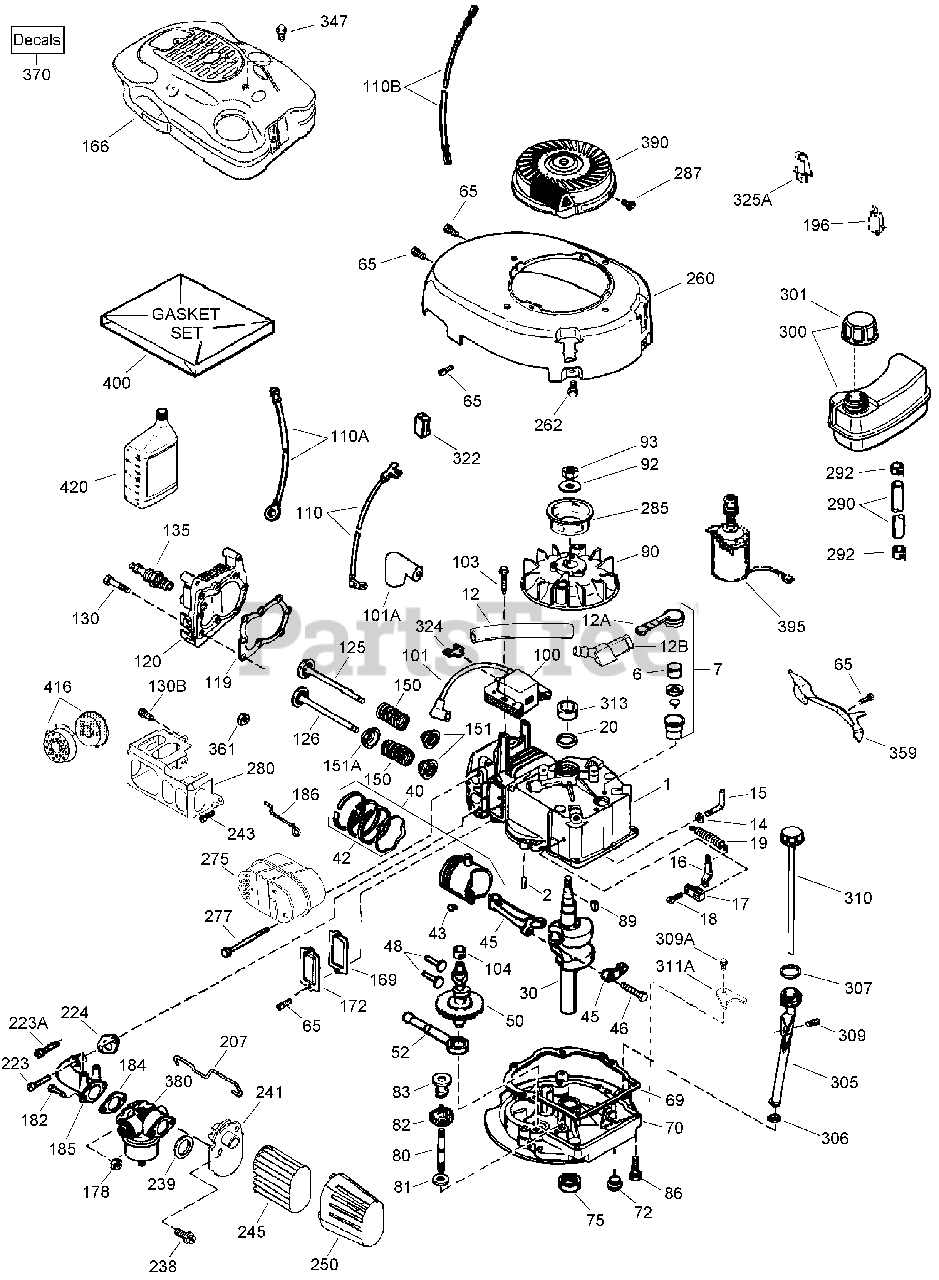

ENGINE ASSEMBLY NO. 2 TECUMSEH LV195EA-362077D Parts Diagram

  • Title

150

Lawn-Boy 31672

Spring-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve, Spring
(Superseded to 742357)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

151A

Lawn-Boy 40017

Seal-Valve, Intake

Note: Obtain from your local Tecumseh dealer

$

$

Not available

166

Lawn-Boy 37813A

Shroud-Engine (Green)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

169

Lawn-Boy 36783

Gasket-Cover, Valve

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

172

Lawn-Boy 36784

Cover-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Not available

178

Lawn-Boy 29752

Nut and Lock Washer (1/4-28)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw (1/4-28 x 7/8)
(Superseded to 111-1250)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

184

Lawn-Boy 26756

Gasket-Carburetor To Intake Pipe

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

185

Lawn-Boy 37466

Pipe-Intake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

186

Lawn-Boy 32653

Link-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

196

Lawn-Boy 35035A

Switch-Restart, Power

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

207

Lawn-Boy 34336A

Link-Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

223

Lawn-Boy 650451

Screw (1/4-20 x 1)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

223A

Lawn-Boy 651074

Stud-Pipe, Intake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

224

Lawn-Boy 36786

Gasket-Pipe, Intake

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

238

Lawn-Boy 650932

Screw (10-32 x 49/64)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

239

Lawn-Boy 34338

Gasket-Air Cleaner

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

241

Lawn-Boy 36919

Collar-Air Cleaner

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

243

Lawn-Boy 650902

Screw (10-32 x 7/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

245

Lawn-Boy 36905

Filter-Air Cleaner (also available in Packaged Part 740083)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

250

Lawn-Boy 37122

Cover-Air Cleaner

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

260

Lawn-Boy 37693A

Housing-Blower

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

262

Lawn-Boy 650831

Screw (1/4-20 x 1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

275

Lawn-Boy 37498

Muffler

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

277

Lawn-Boy 650988

Screw (1/4-20 x 2-9/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

280

Lawn-Boy 37618

Shield-Heat

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

285

Lawn-Boy 38000

Cup-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw (8-32 x 21/64)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

290

Lawn-Boy 37962

Line-Fuel (Low Permeation)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp-Line, Fuel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

300

Lawn-Boy 37947

Fuel Tank ASM (Includes 292 and 301)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

301

Lawn-Boy 37844

Cap-Fuel (Black) (1-1/2 ID) (also available in Packaged Part 740041B)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

305

Lawn-Boy 35647A

Tube-Fill, Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

306

Lawn-Boy 37610

O-Ring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

307

Lawn-Boy 35499

O-Ring

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

309

Lawn-Boy 650562

Screw (10-32 x 1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

309A

Lawn-Boy 650783

Screw (10-24 x 3/4)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

310

Lawn-Boy 35648

Dipstick
(Superseded to 700539)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

311A

Lawn-Boy 37611

Bracket-Holddown

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

322

Lawn-Boy 35013

Body-Connector

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

324

Lawn-Boy 33177

Terminal

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

325A

Lawn-Boy 35249

Clip-Actuator, Brake Switch

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

347

Lawn-Boy 650898A

Screw (10-32 x 27/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

359

Lawn-Boy 37876

Guard-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

361

Lawn-Boy 651075

Nut-Lock

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

370

Lawn-Boy 37695

Decal-Primer

Note: Obtain from your local Tecumseh dealer

$

$

Not available

370

Lawn-Boy 36534A

Instruction Decal - Caution - read owner's manual

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

380

Lawn-Boy 640350

Carburetor ASM (Includes 184)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

390

Lawn-Boy 590702

Starter-Recoil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

395

Lawn-Boy 37753

12-Volt Electric Starter Motor ASM

Note: Obtain from your local Tecumseh dealer

$

$

Not available

400

Lawn-Boy 37613A

Gasket Set

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

416

Lawn-Boy 37530

Spark Arrestor Kit (Includes 417)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

420

Lawn-Boy 730225A

Oil-Engine, SAE 30 (4-Cycle)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

421

Lawn-Boy 806174A

REPLACEMENT ENGINE ASM

Note: Not illustrated Obtain from your local Tecumseh dealer

$

$

Currently unavailable

422

Lawn-Boy 750876

Shortblock-Replacement

Note: Not illustrated Obtain from your local Tecumseh dealer

$

$

Currently unavailable

999

Lawn-Boy 730277

Summer Maintenance Kit (Includes SAE 30 Oil)

Note: Not illustrated Obtain from your local Tecumseh dealer

$

$

Currently unavailable
