10687 - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006) BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

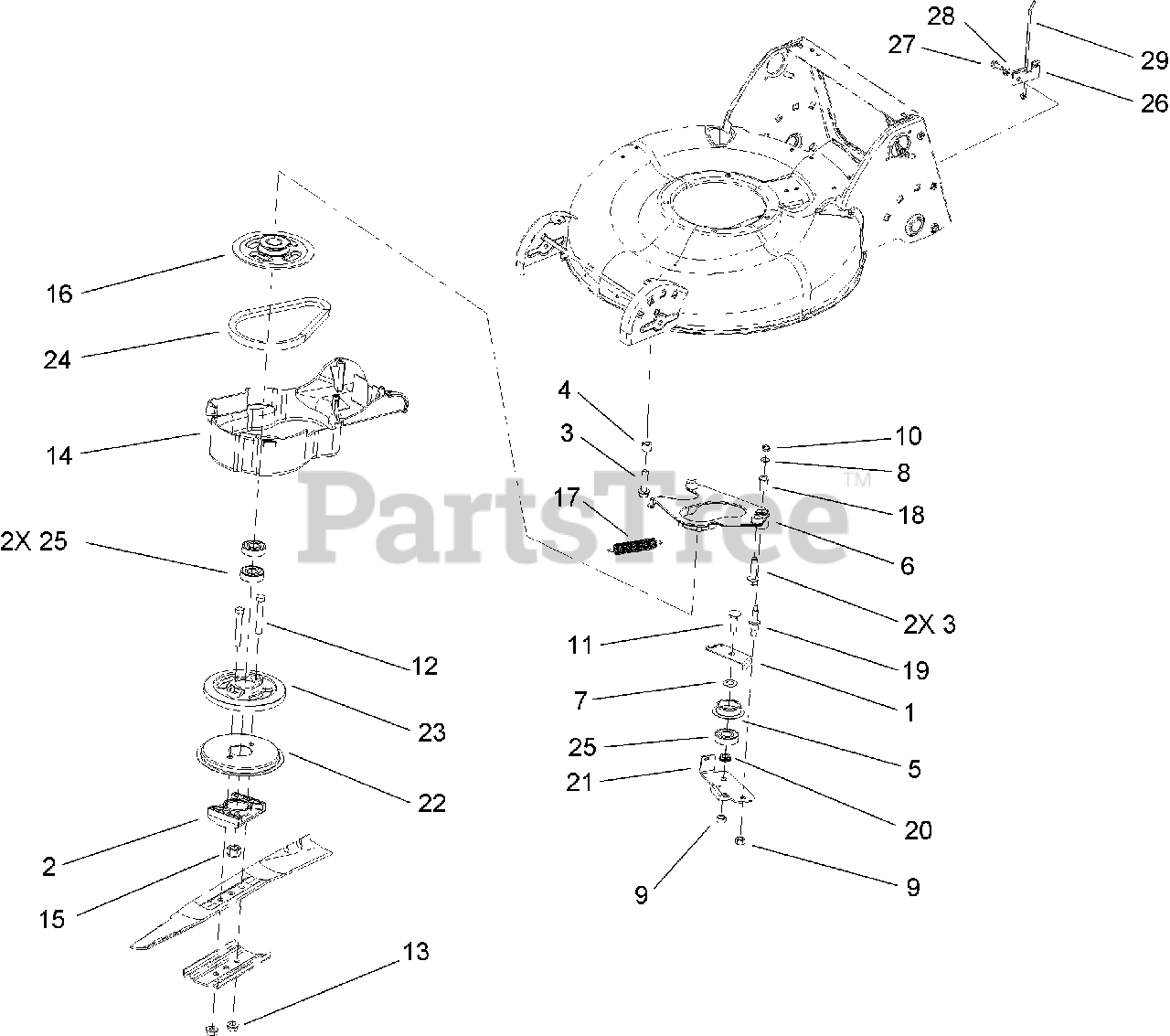

BLADE BRAKE CLUTCH ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 19

0

2

Lawn-Boy 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 3 left!

0

3

Lawn-Boy 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 100-6447

TUBE-SPACER

$

$

Not available

5

Lawn-Boy 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 108-9341

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

7

$2.99

$

In Stock, Qty 20+

0

8

Lawn-Boy 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

$2.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

11

Lawn-Boy 3231-25

SCREW-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 3211-42

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 112-1525

COVER-BBC

$56.99

$

Usually ships in 3-6 days

0

15

$5.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 110-7456

PULLEY-BBC

$55.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

18

$6.49

$

In Stock, Qty 5

0

19

Lawn-Boy 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 107-7477

BRAKE ARM ASM
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, Qty 5

0

23

Lawn-Boy 107-0754

DRUM
(Superseded to 126-8108)

$55.99

$

In Stock, Qty 6

0

24

$30.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 110-1780

CLAMP-CABLE, BBC

$19.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0
