10686 - Lawn-Boy Insight Walk-Behind Mower (SN: 250000001 - 250999999) (2005) BLADE AND ENGINE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

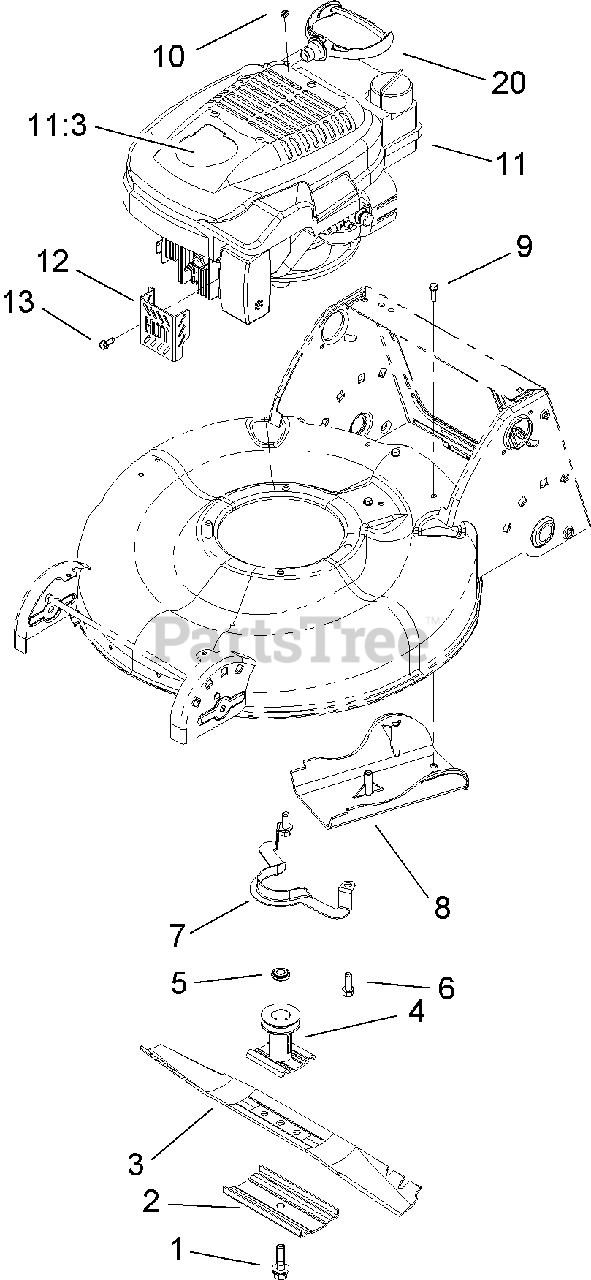

BLADE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0954-03

BLADE-21 IN
(Superseded to 133-8182-03)

$25.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$31.99

$

In Stock, Qty 19

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 92-1624

SCREW
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 107-3909

COVER-BELT
(Superseded to 110-1832)

$15.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

ENGINE-TECUMSEH, LV195EA-362045C

Note: Not serviced separately Obtain from your local Tecumseh dealer

$

$

Not available

11:3

Lawn-Boy 108-7452

DECAL-RECOIL

$

$

Not available

12

Lawn-Boy 106-8346

GUARD-MUFFLER
(Superseded to 106-8346-03)

$18.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 106-8345

HANDLE-RECOIL
(Superseded to 110-1778)

$31.99

$

In Stock, Qty 6

0
