10686 C - Lawn-Boy Insight Walk-Behind Mower (SN: 260000001 - 260999999) (2006) RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH LV195EA-362045C Parts Diagram

Insight Walk-Behind Mower

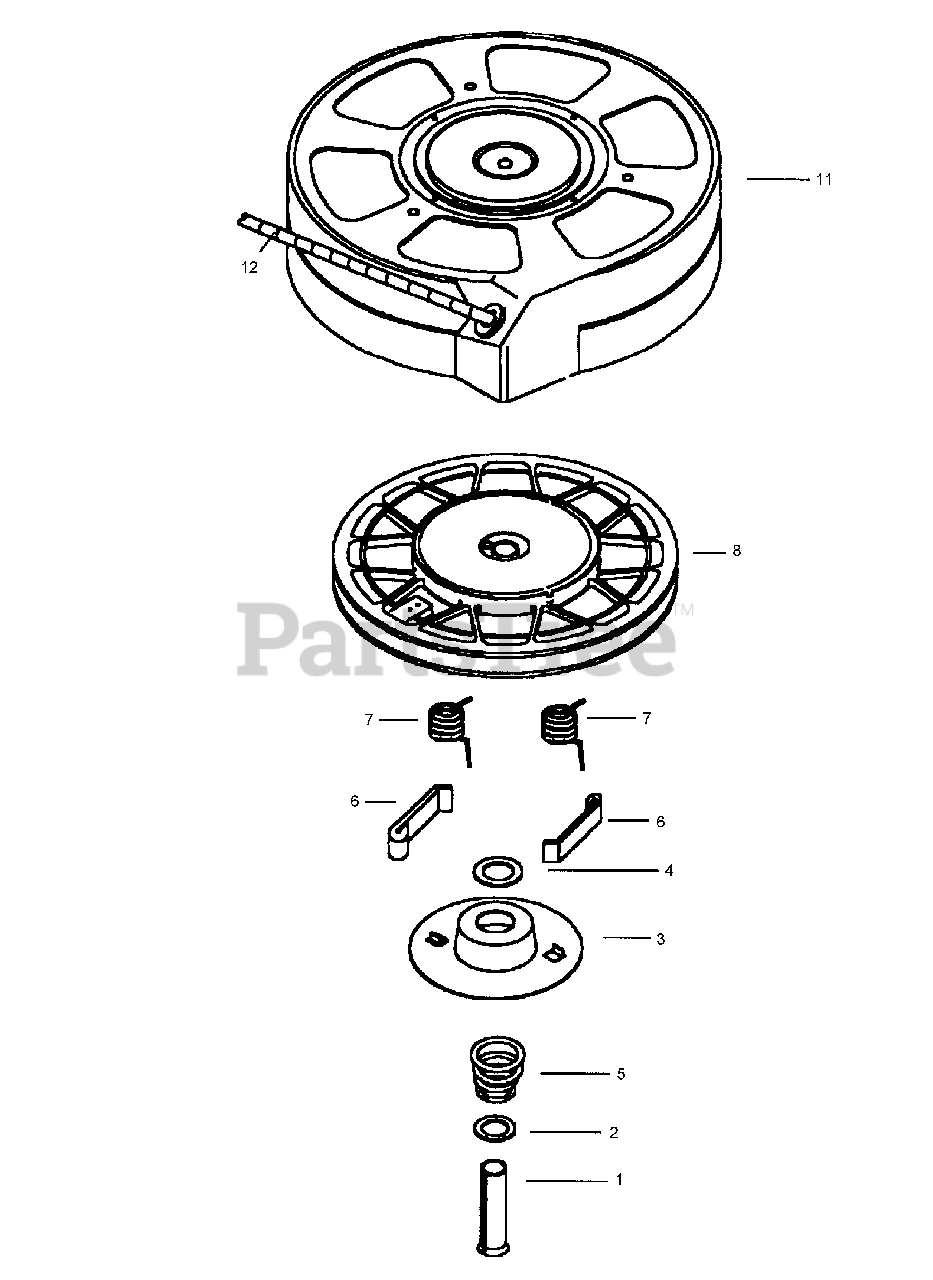

RECOIL STARTER ASSEMBLY NO. 590702 (OPTIONAL) TECUMSEH LV195EA-362045C Parts Diagram

  • Title

Lawn-Boy 590702

Starter-Recoil

Note: Obtain from your local Tecumseh dealer Optional Equipment

$

$

Currently unavailable

1

Lawn-Boy 590599A

Spring Pin ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 590600

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 590601

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

5

Lawn-Boy 590697

Spring-Brake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590698

Dog-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590699

Spring-Dog

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590700

Pulley and Rewind Spring ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590703A

Starter Housing ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

Rope-Starter (98in X 9/64in diameter)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
