10685 - Lawn-Boy Insight Walk-Behind Mower (SN: 280000001 - 280999999) (2008) BLADE AND ENGINE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

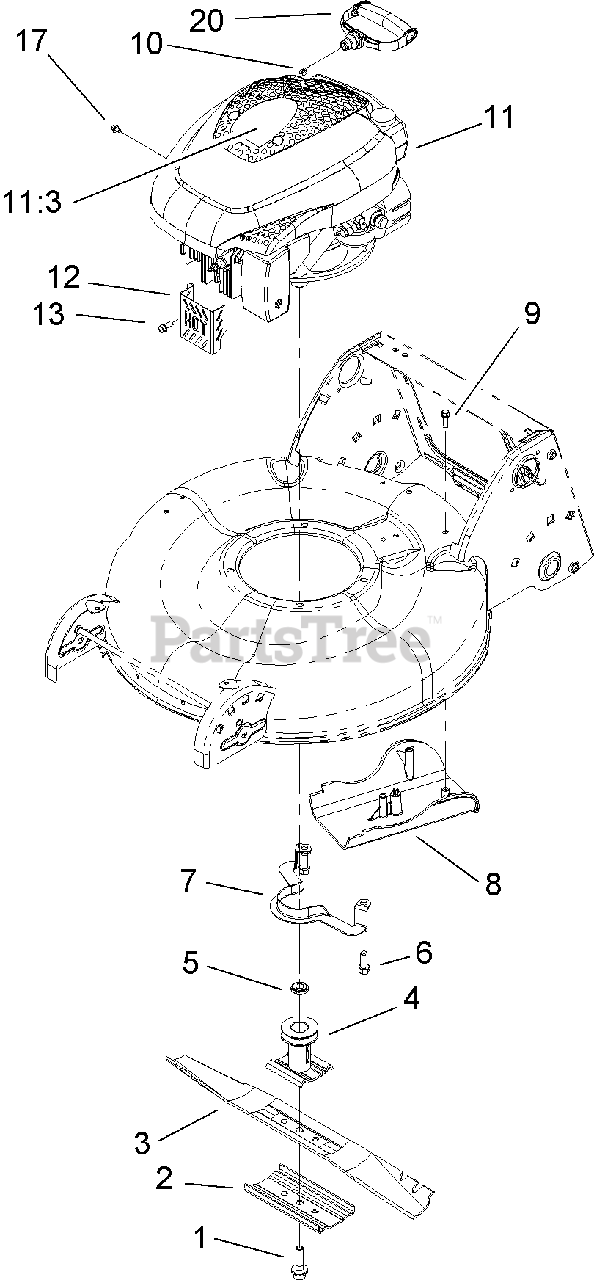

BLADE AND ENGINE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

3

Lawn-Boy 108-0954-03

BLADE-21 INCH
(Superseded to 133-8182-03)

$25.99

$

In Stock, Qty 13

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$30.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 92-1624

SCREW
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

Guide-Belt

$14.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 110-1832

COVER-BELT

$15.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

11

ENGINE-TECUMSEH, LV195EA-362044D

Note: Not serviced separately Obtain from your local Tecumseh dealer

$

$

Not available

11:3

Lawn-Boy 108-7452

DECAL-RECOIL

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 106-8346-03

GUARD-MUFFLER

$15.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 98-1394

SCREW-HWH

$4.49

$

In Stock, only 1 left!

0

20

Lawn-Boy 110-1778

HANDLE-RECOIL

$27.99

$

In Stock, Qty 6

0
