10684 C - Lawn-Boy Insight Walk-Behind Mower (SN: 250000001 - 250999999) (2005) SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

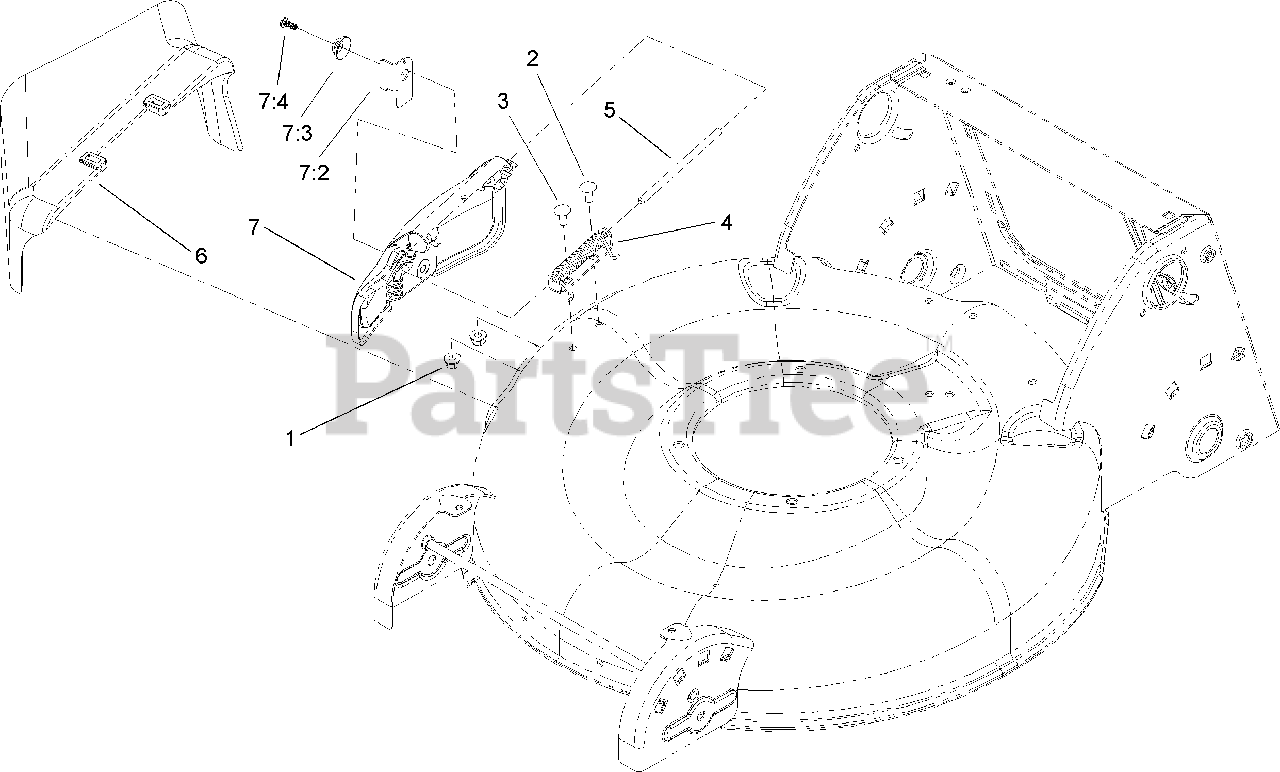

SIDE DISCHARGE CHUTE ASSEMBLY Parts Diagram

  • Title
1

$2.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

4

Lawn-Boy 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

5

Lawn-Boy 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

6

Lawn-Boy 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

7

Lawn-Boy 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

7:2

Lawn-Boy 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

7:3

Lawn-Boy 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

7:4

Lawn-Boy 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0
