10673 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 280000001 - 280999999) (2008) LOWER HANDLE ASSEMBLY Parts Diagram

Insight Gold Walk-Behind Mower

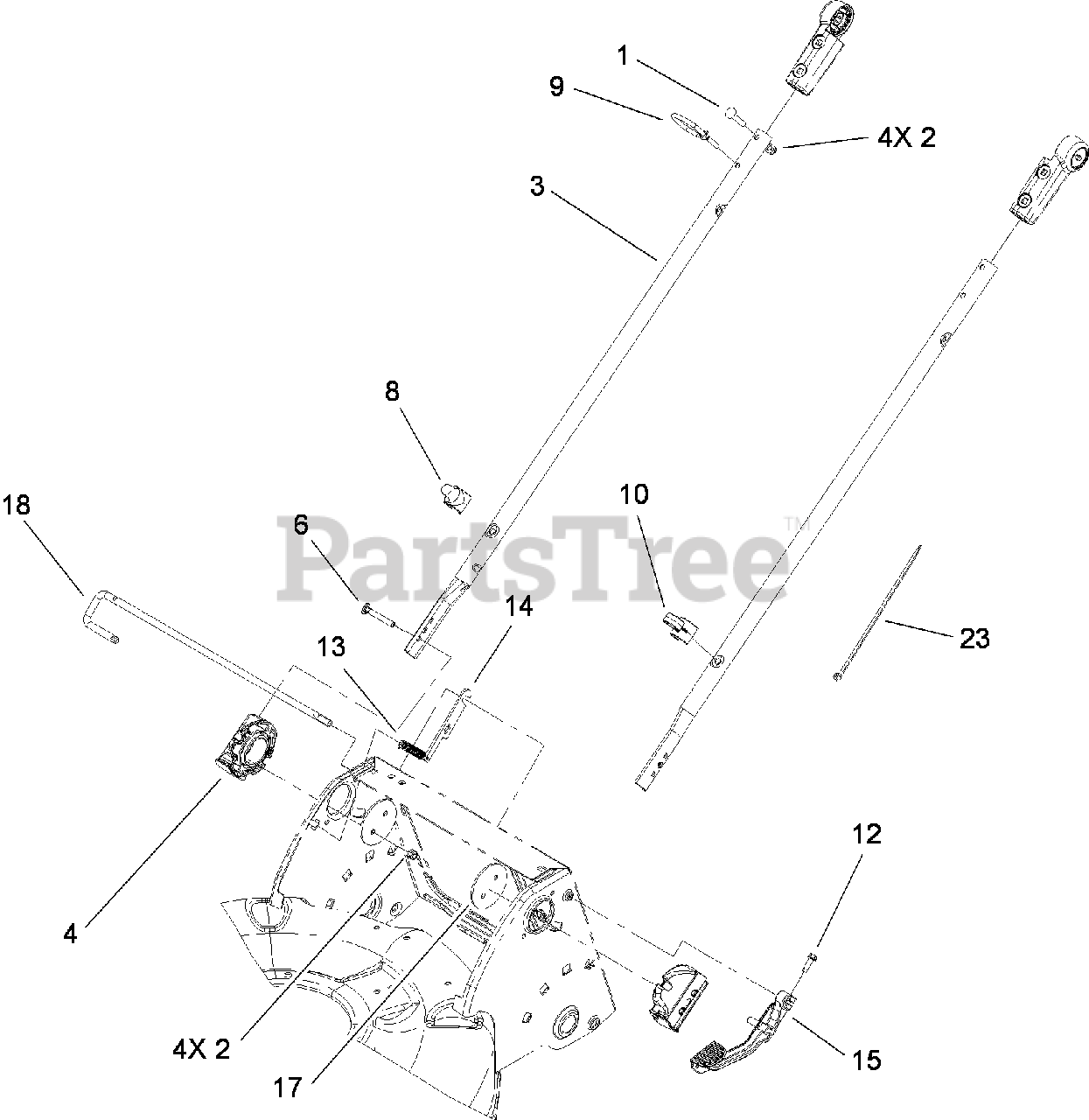

LOWER HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

3

$29.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 114-2791

HANDLE-MOUNT, LOWER
(Superseded to 119-3847-03)

$17.99

$

In Stock, only 1 left!

0

$3.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 108-0994

GUIDE-ROPE, LOWER
(Superseded to 117-4141)

$13.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, only 3 left!

0

10

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 12

0

12

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 112-1542

SPRING-EXTENSION

$2.49

$

In Stock, only 2 left!

0

14

Lawn-Boy 112-1539

PLATE-RELEASE ROD

$6.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 110-1823-03

LEVER-RELEASE

$41.99

$

In Stock, only 1 left!

0

$5.49

$

In Stock, Qty 8

0

18

Lawn-Boy 112-8755

ROD-HANDLE RELEASE

$23.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0
