10672 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 250000001 - 250999999) (2005) AIR CLEANER ASSEMBLY HONDA GCV160A STL1 Parts Diagram

Insight Gold Walk-Behind Mower

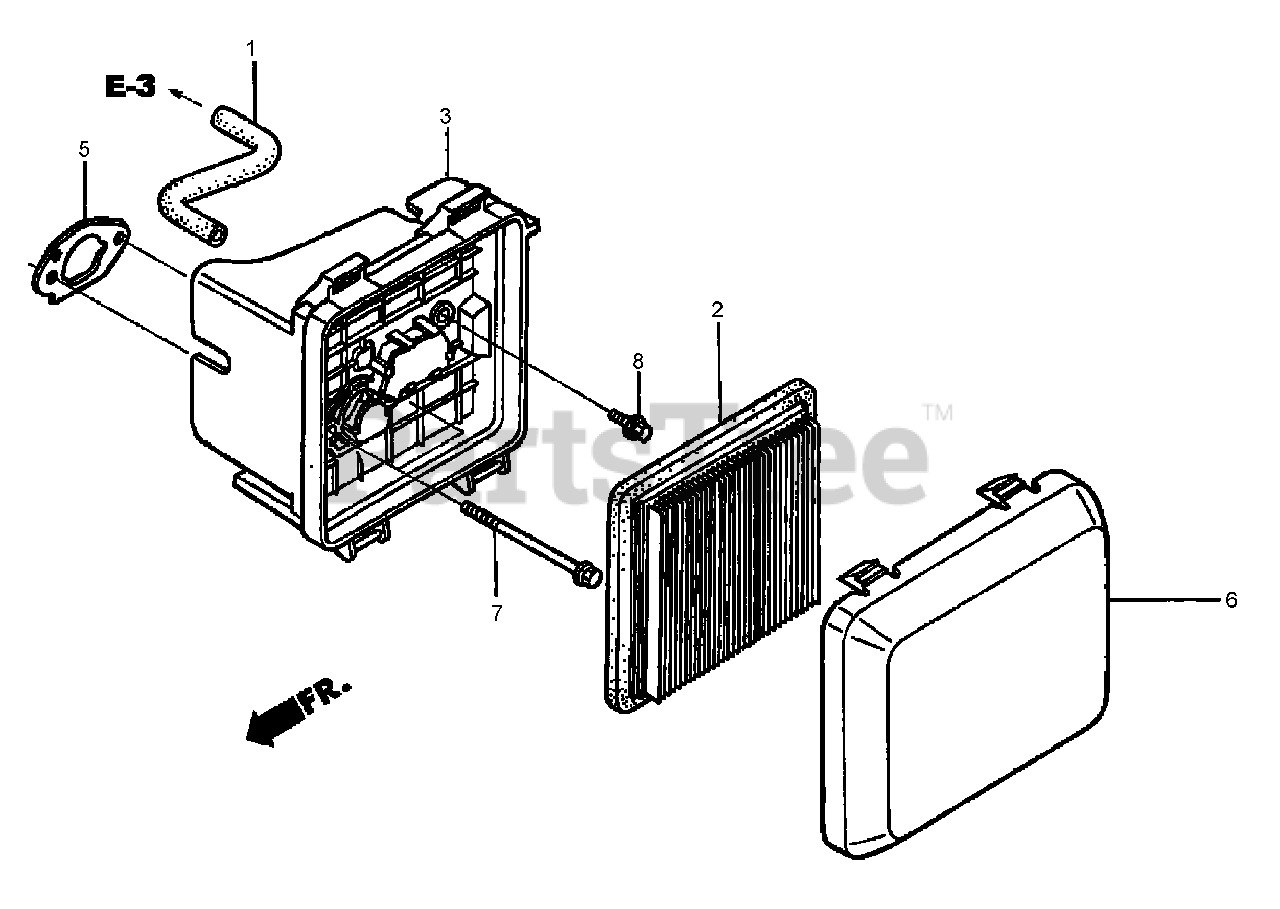

AIR CLEANER ASSEMBLY HONDA GCV160A STL1 Parts Diagram

  • Title
1

Lawn-Boy 15721-ZM0-000

TUBE-BREATHER

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

2

Lawn-Boy 17211-ZL8-013

ELEMENT-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

3

Lawn-Boy 17220-ZM0-000

AIR CLEANER CASE ASM

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

5

Lawn-Boy 17228-ZM0-000

GASKET-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

6

Lawn-Boy 17231-Z0L-030

COVER-CLEANER, AIR

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

7

Lawn-Boy 90003-ZM0-000

BOLT-FLANGE (6X86) (CT200)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable

8

Lawn-Boy 95701-06014-08

BOLT-FLANGE (6X14)

Note: Obtain from your local Honda dealer

$

$

Currently unavailable
