10670 C - Lawn-Boy Insight Walk-Behind Mower (SN: 280000001 - 280999999) (2008) REAR END ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

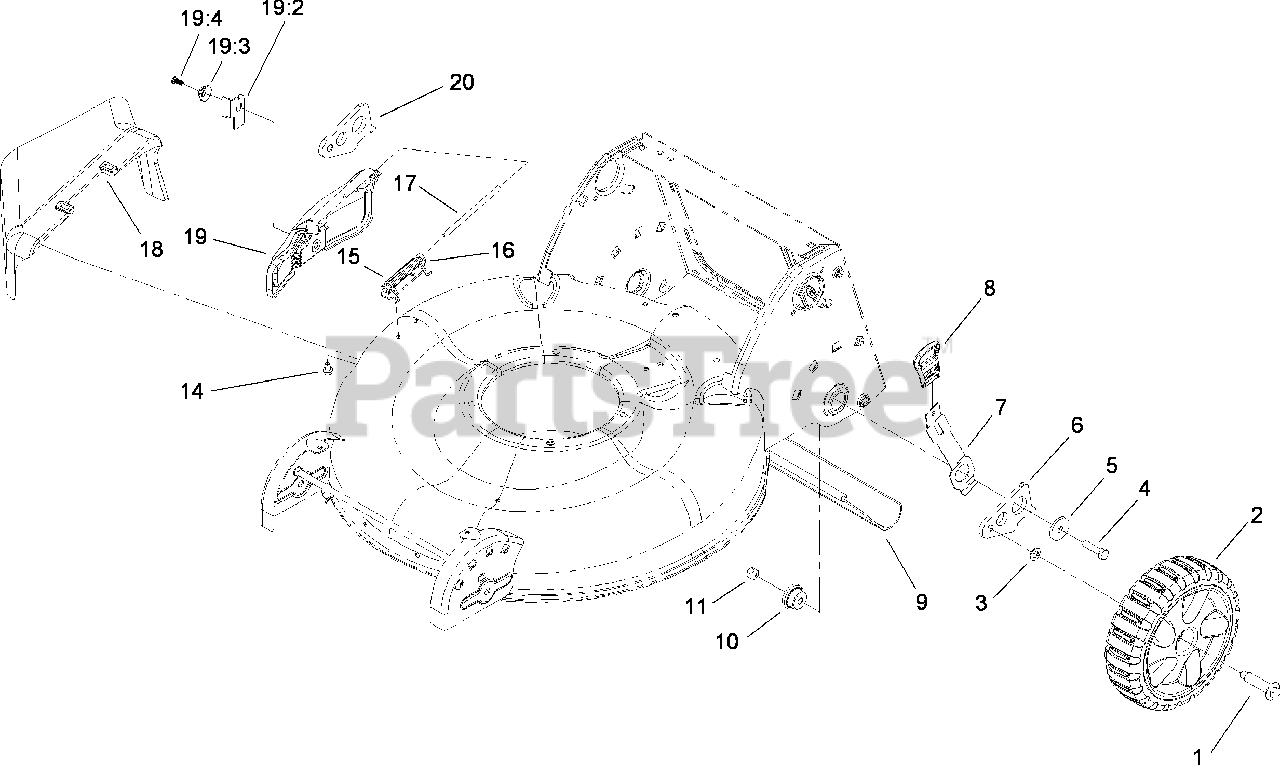

REAR END ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 6

0

2

Lawn-Boy 107-3898

8 INCH WHEEL ASM
(Superseded to 117-4103)

$36.99

$

In Stock, only 2 left!

0

3

$2.99

$

In Stock, Qty 18

0

4

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 12

0

6

Lawn-Boy 108-9344

ARM-REAR PIVOT, LH

$12.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 110-9445

ARM-SPRING, REAR

$12.99

$

In Stock, only 2 left!

0

8

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

11

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Lawn-Boy 99-8445

SCREW-HWH
(Superseded to 137-4795)

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

16

Lawn-Boy 112-6416

BRACKET-COVER

$2.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

18

Lawn-Boy 105-3028

CHUTE-DISCHARGE, SIDE

$11.99

$

In Stock, Qty 5

0

19

Lawn-Boy 106-8376

DISCHARGE DOOR ASM

$15.99

$

In Stock, only 1 left!

0

19:2

Lawn-Boy 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

19:3

Lawn-Boy 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

19:4

Lawn-Boy 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

20

Lawn-Boy 108-9343

ARM-REAR PIVOT, RH

$12.99

$

In Stock, only 1 left!

0
