10662 - Lawn-Boy Insight Walk-Behind Mower (SN: 290000001 - 290999999) (2009) DECK HOUSING, FRONT WHEEL AND TUNNEL ASSEMBLY Parts Diagram

Insight Walk-Behind Mower

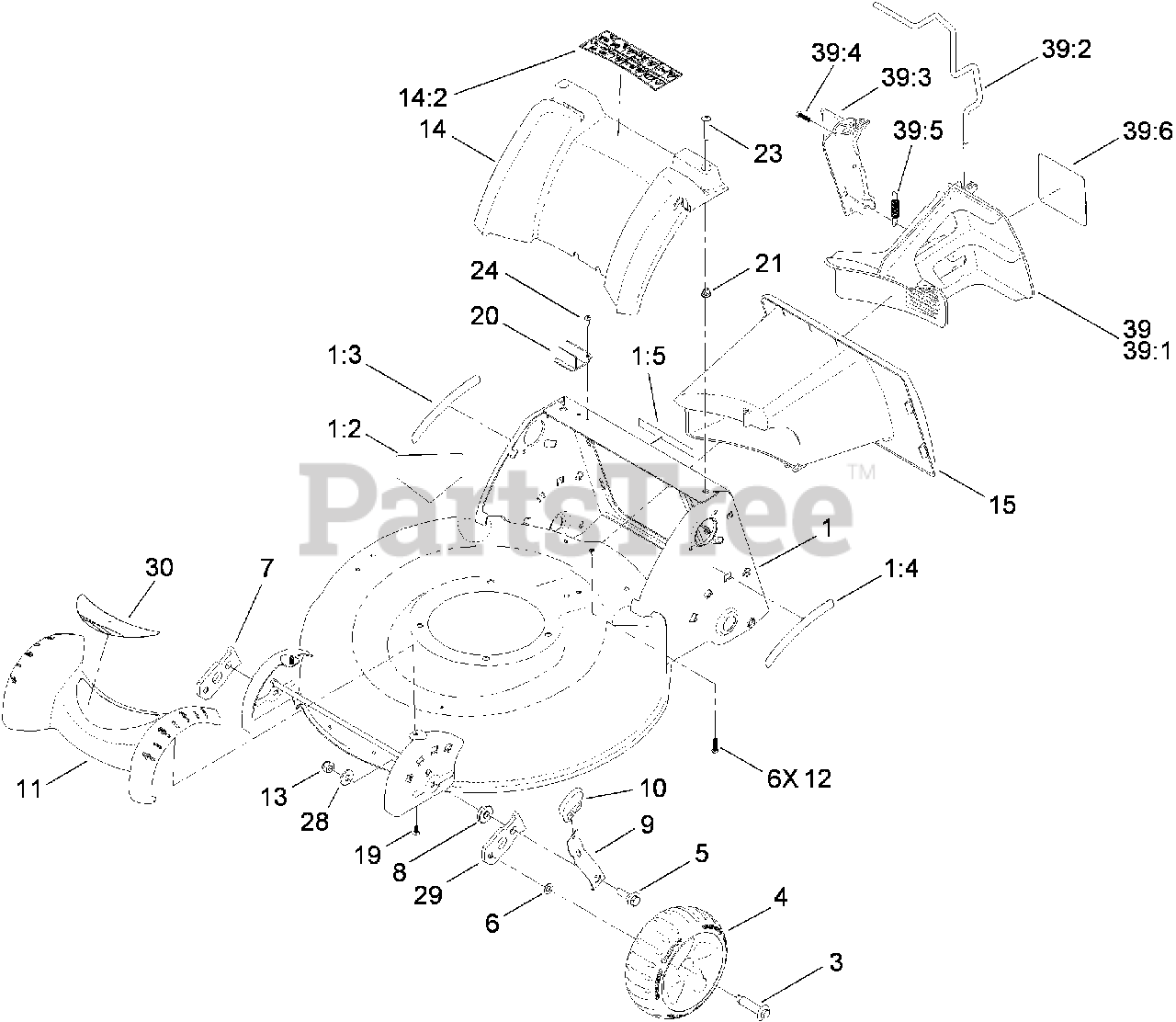

DECK HOUSING, FRONT WHEEL AND TUNNEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 114-2804

HOUSING ASM

$250.99

$

Usually ships in 3-6 days

0

1:2

Lawn-Boy 94-8072

DECAL-DANGER

$6.49

$

In Stock, Qty 11

0

1:3

Lawn-Boy 108-7450

DECAL-HOC, RH

$9.99

$

Usually ships in 3-6 days

0

1:4

Lawn-Boy 108-7451

DECAL-HOC, LH

$9.99

$

Usually ships in 3-6 days

0

1:5

Lawn-Boy 107-3889

DECAL-SAFETY
(Superseded to 114-2820)

$7.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 112-1548

7 INCH FRONT WHEEL ASM
(Superseded to 117-5964)

$22.99

$

In Stock, Qty 17

0

5

Lawn-Boy 614672

BOLT-SHOULDER

$2.99

$

In Stock, only 4 left!

0

6

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 107-3877

ARM-PIVOT, RH

$12.99

$

In Stock, only 2 left!

0

8

$8.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 107-3878

ARM-SPRING

$12.99

$

In Stock, only 3 left!

0

10

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 107-3926

COVER-FRONT

$42.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 115-3177

COVER-REAR

$50.99

$

Usually ships in 3-6 days

0

14:2

Lawn-Boy 114-2820

DECAL-WARNING

$7.49

$

Usually ships in 3-6 days

0

15

$44.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 108-7475

SCREW-PLASTITE

$4.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 108-0993

MODULE-SWITCH

$66.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-1610

NUT-CLIP

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 108-0965

SCREW-PTH

$1.49

$

In Stock, Qty 11

0

24

Lawn-Boy 105-6849

SCREW-THREAD FORMING

$1.49

$

In Stock, Qty 20+

0

28

Lawn-Boy 80-6990

WASHER-HARDENED

$5.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 108-1044

ARM-PIVOT, LH

$10.99

$

Usually ships in 3-6 days

0

$5.49

$

In Stock, Qty 12

0

39

Lawn-Boy 110-9468

MULCH PLUG ASM

$64.99

$

In Stock, only 1 left!

0

39:1

Lawn-Boy 110-9446

PLUG-MULCH, LH

$23.99

$

In Stock, only 4 left!

0

39:2

Lawn-Boy 110-9448

LATCH-PLUG, MULCH

$40.99

$

In Stock, only 1 left!

0

39:3

Lawn-Boy 110-9447

PLUG-MULCH, RH

$10.99

$

In Stock, only 4 left!

0

39:4

Lawn-Boy 108-7476

SCREW-PLASTITE

$0.99

$

In Stock, Qty 20+

0

39:5

Lawn-Boy 110-9458

SPRING-EXTENSION

$3.99

$

In Stock, Qty 7

0

39:6

Lawn-Boy 110-9457

DECAL-PLUG, MULCH

$9.99

$

Usually ships in 3-6 days
