10658 - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) ENGINE AND BLADE ASSEMBLY Parts Diagram

20" Walk-Behind Mower

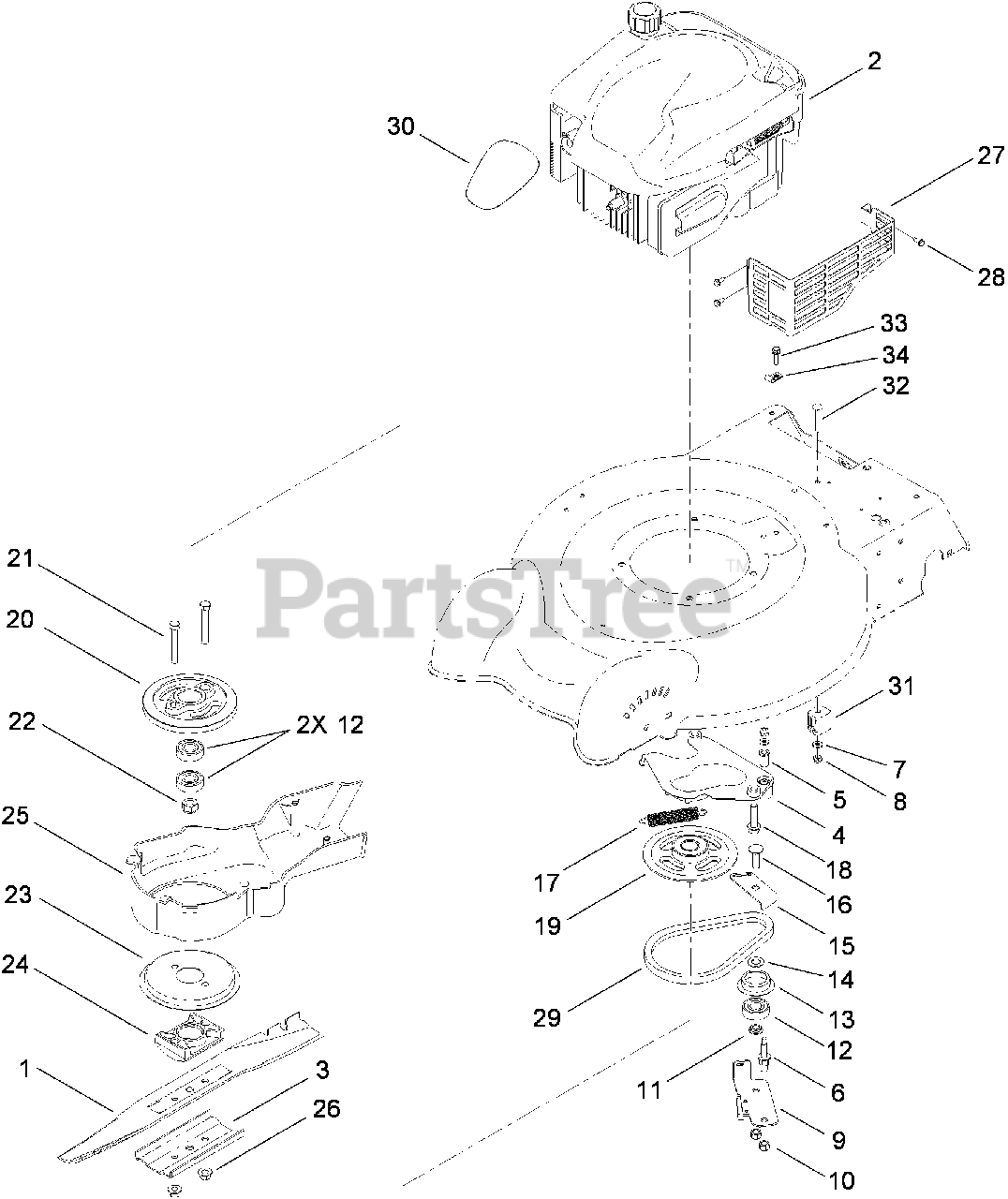

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

2

ENGINE-BRIGGS, 126T02-0379-B1

Note: Not serviced separately Obtain parts from www.briggsandstratton.com

$

$

Not available

3

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 11

0

4

Lawn-Boy 108-9341

PLATE-ANCHOR

$31.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 107-0797

BUSHING

$6.49

$

In Stock, Qty 8

0

6

Lawn-Boy 107-0759

BOLT-SHOULDER

$10.99

$

In Stock, Qty 5

0

7

Lawn-Boy 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

8

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

9

Lawn-Boy 107-7477

BRAKE ARM ASM
(Superseded to 125-1063)

$23.99

$

In Stock, Qty 9

0

10

Lawn-Boy 603773

NUT

$2.99

$

In Stock, Qty 8

0

11

Lawn-Boy 107-0758

SPACER-BEARING

$3.49

$

In Stock, Qty 6

0

12

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

13

Lawn-Boy 108-3790

RETAINER-BELT
(Superseded to 138-3217)

$3.49

$

In Stock, Qty 11

0

14

Lawn-Boy 605256

WASHER

$2.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 107-7471

PLATE-GUIDE
(Superseded to 138-3222)

$3.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3231-25

SCREW-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 15

0

17

Lawn-Boy 108-3792

SPRING-TENSION, BRAKE

$11.99

$

In Stock, Qty 11

0

18

Lawn-Boy 32144-102

SCREW-HWH

$3.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 117-5970

PULLEY-BBC

$41.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 107-0754

DRUM
(Superseded to 126-8108)

$55.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 3211-42

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

22

Lawn-Boy 108-9342

NUT-HEX

$5.49

$

In Stock, only 2 left!

0

23

Lawn-Boy 108-3787

DISC
(Superseded to 138-3225)

$12.99

$

In Stock, only 3 left!

0

24

Lawn-Boy 107-7487

SUPPORT-BLADE

$22.99

$

In Stock, only 1 left!

0

25

Lawn-Boy 119-7002

COVER-BBC

$

$

Not available

26

Lawn-Boy 54-9190

NUT-LOCK
(Superseded to 127-6852)

$2.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 110-1790

BELT-BBC

$30.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 119-3802

DECAL-SHROUD

$8.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 106-6801

ANCHOR-CABLE, BBC

$7.99

$

In Stock, Qty 7

0

32

Lawn-Boy 3229-5

SCREW-CARR

$1.49

$

In Stock, Qty 5

0

33

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 2412-72

CLIP-CLOSED, INSULATED

$2.49

$

In Stock, Qty 12

0
