10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) PISTON AND CONNECTING ROD ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

Gold Series Walk-Behind Mower

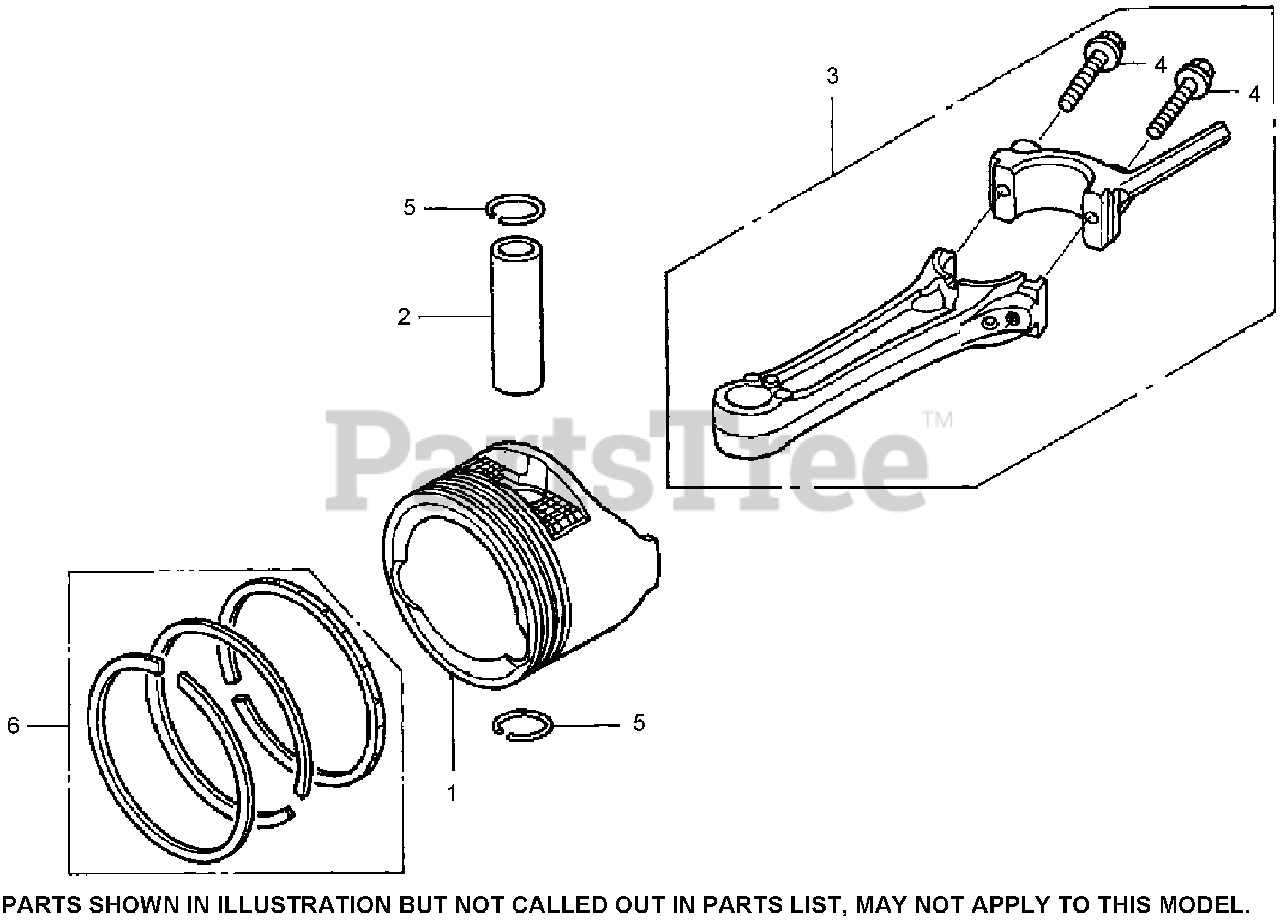

PISTON AND CONNECTING ROD ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

  • Title
1

Lawn-Boy 13101-ZL8-000

PISTON

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 13111-ZE0-000

PIN, PISTON

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 13200-ZL8-000

ROD ASM., CONNECTING

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 90001-ZE1-000

BOLT-CONNECTING ROD

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 90551-ZE0-000

CLIP, PISTON PIN (13MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 13010-ZL8-003

RING SET, PISTON (RIKEN)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

Lawn-Boy 13010-ZL8-024

RING SET, PISTON (TEIKOKU)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
