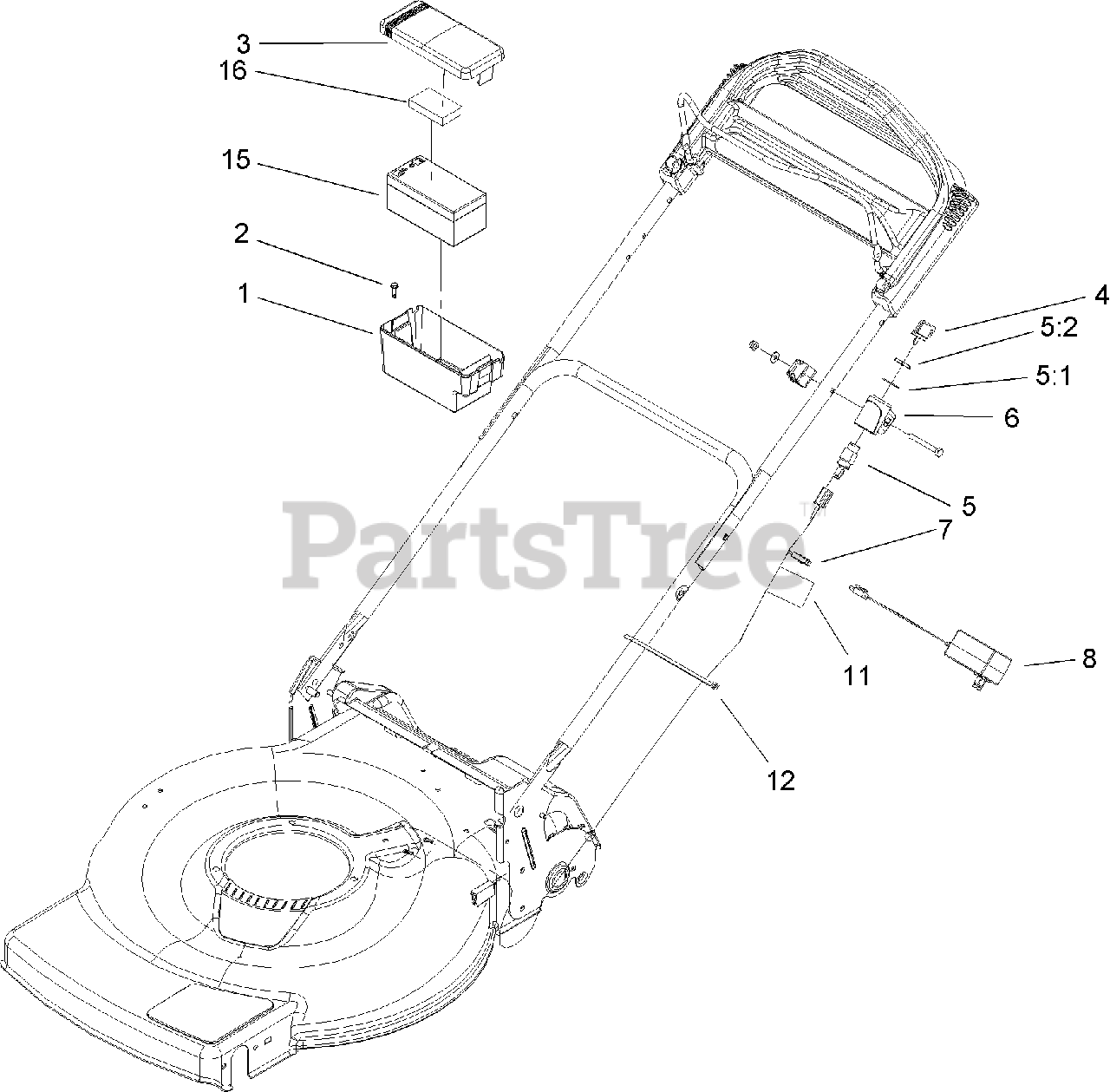

10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ELECTRIC START ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

ELECTRIC START ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 107-3757

BOX-BATTERY
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 104-7648

SCREW-TEK

$0.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 107-3758

COVER-BATTERY
(Superseded to 108-4844)

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0

5

Lawn-Boy 46-5780

SWITCH-STARTER

$29.99

$

In Stock, only 1 left!

0

5:1

Lawn-Boy 3254-5

WASHER-TOOTH

$1.49

$

In Stock, only 2 left!

0

5:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

6

Lawn-Boy 104-8692

Mount-Switch
(Superseded to 108-9760)

$5.99

$

In Stock, only 1 left!

0

7

Lawn-Boy 106-8395

HARNESS-WIRE

$

$

Not available

8

Lawn-Boy 104-7401

CHARGER-12 VOLT
(Superseded to 136-9126)

$41.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 104-7953

DECAL-HARNESS

$9.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

15

Lawn-Boy 106-8397

BATTERY-12 VOLT

$79.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

19

Lawn-Boy 99-6124

FUSE-40 AMP

Note: Not illustrated

$5.49

$

In Stock, Qty 8

0

99

Lawn-Boy 3256-51

WASHER-FLAT

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0

99

Lawn-Boy 47-2830

METRIC SCREW

Note: Not illustrated

$0.99

$

Usually ships in 3-6 days

0
