10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CYLINDER BARREL ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

Gold Series Walk-Behind Mower

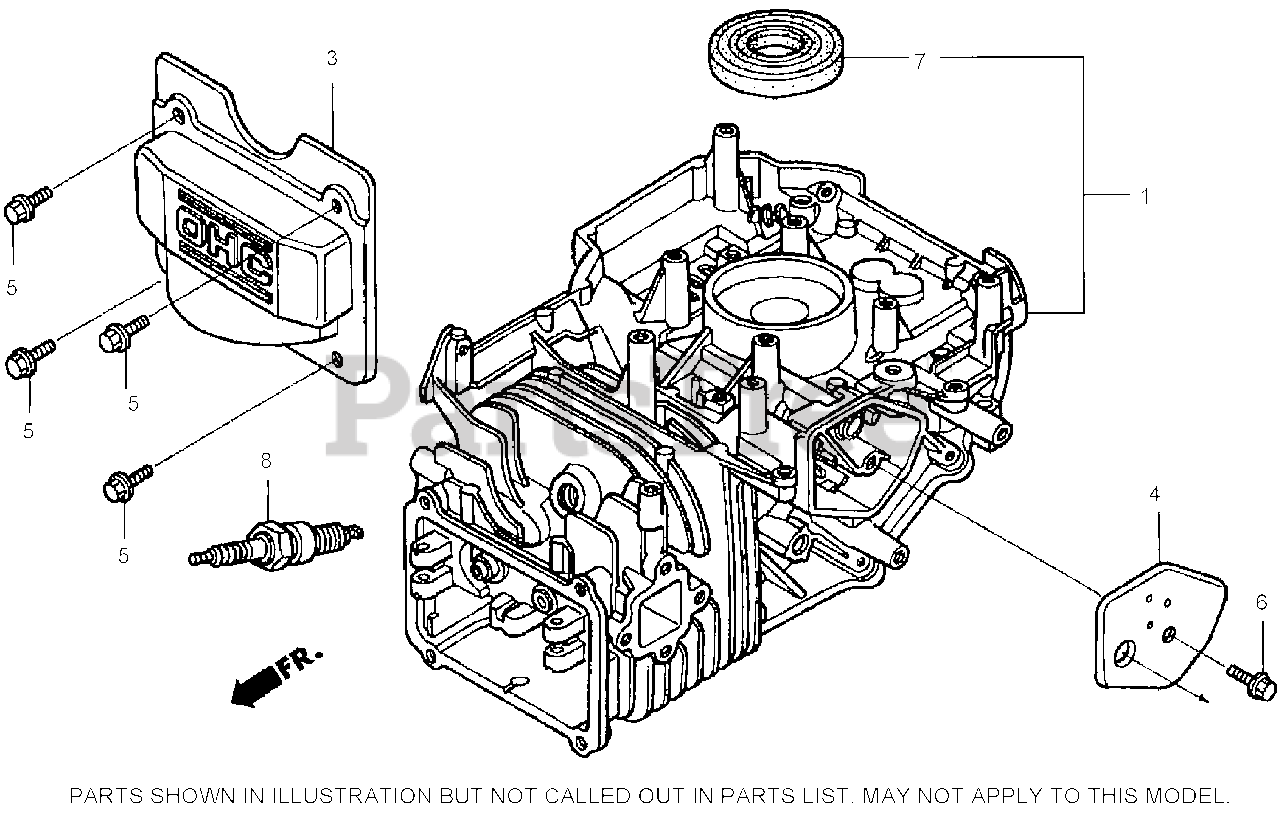

CYLINDER BARREL ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

  • Title
1

Lawn-Boy 12000-Z0L-405

CYLINDER ASM.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 12311-ZL8-000

COVER, HEAD

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASM.)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

7

Lawn-Boy 91201-ZL8-003

OIL SEAL (25.4X62X6)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 98079-56846

SPARK PLUG (BPR6ES)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
