10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CONTROL ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

Gold Series Walk-Behind Mower

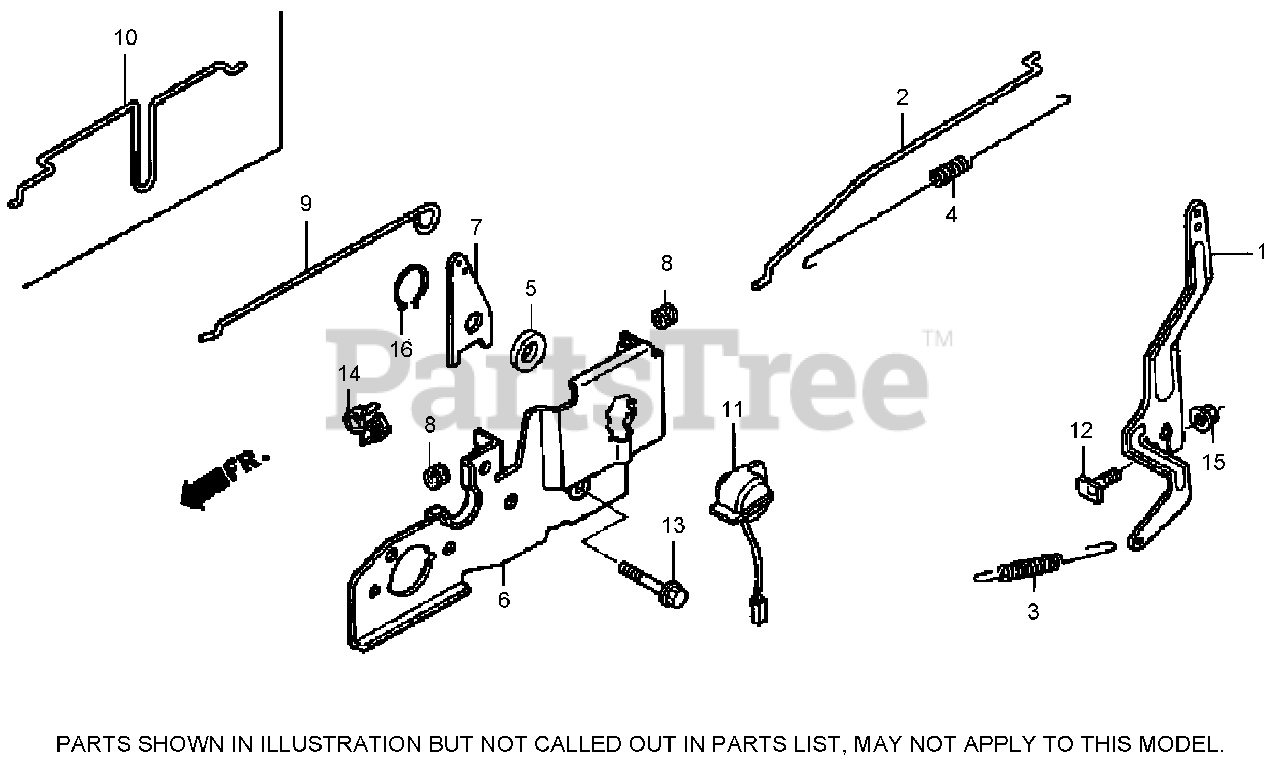

CONTROL ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

  • Title
1

Lawn-Boy 16551-ZM0-010

ARM, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 16555-Z0L-800

ROD, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 16561-Z0L-000

SPRING, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 16562-ZM0-000

SPRING, THROTTLE RETURN

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 16580-Z0L-810

BASE, CONTROL

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 90015-ZE5-010

BOLT-GOVERNOR ARM

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 90016-ZE8-000

BOLT, FLANGE (6X45)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

15

Lawn-Boy 94050-06000

NUT-FLANGE (6MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
