10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CARBURETOR ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

Gold Series Walk-Behind Mower

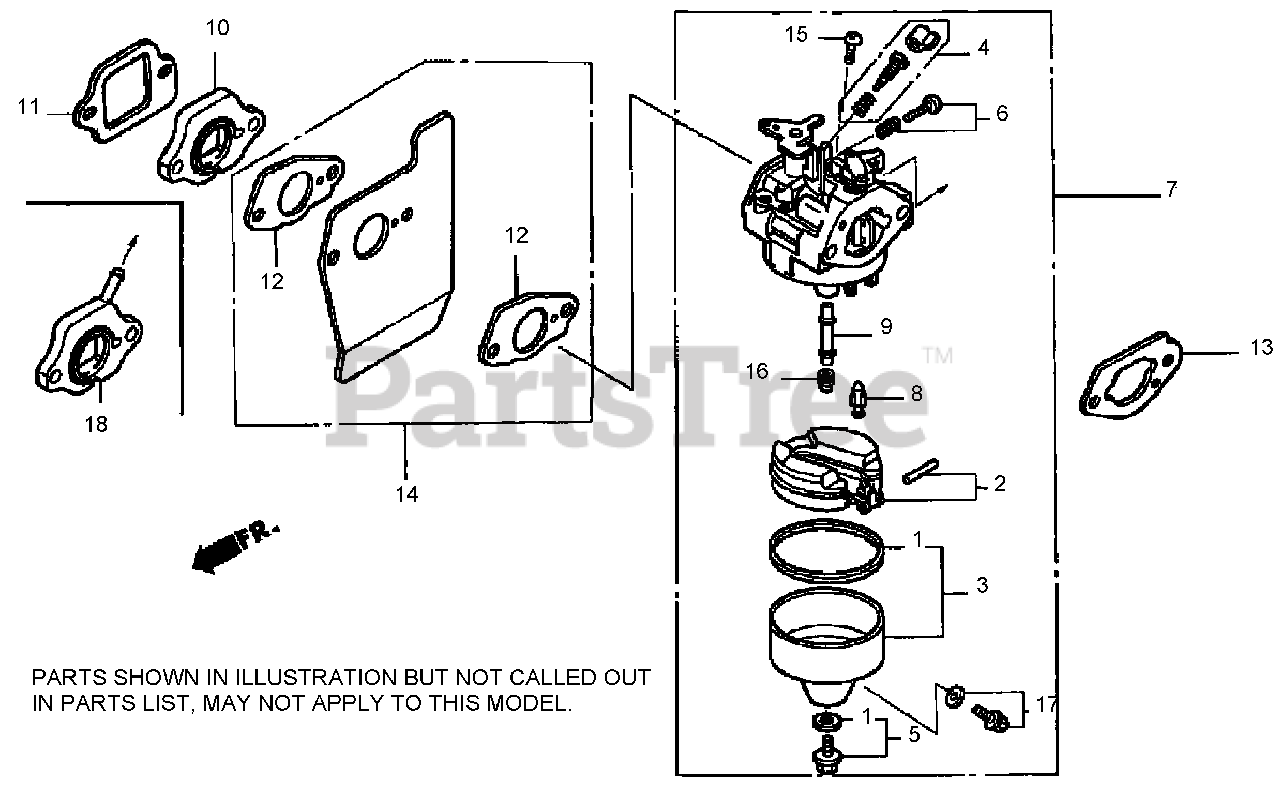

CARBURETOR ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

  • Title
1

Lawn-Boy 16010-883-015

GASKET SET

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 16013-ZL1-003

FLOAT SET

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 16015-887-782

CHAMBER SET, FLOAT

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 16028-ZE0-005

SCREW SET B

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

7

Lawn-Boy 16100-Z0L-801

CARBURETOR ASM. (BB62G A)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 16155-ZM0-003

VALVE, FLOAT

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy 16166-ZM0-003

NOZZLE, MAIN

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 16211-ZL8-000

INSULATOR, CARBURETOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 16212-ZL8-000

GASKET, INSULATOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 16221-883-800

GASKET, CARBURETOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 16228-ZL8-000

GASKET, CARBURETOR (CHOKE SIDE)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

14

Lawn-Boy 19650-ZM0-000

GUIDE, AIR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

15

Lawn-Boy 93500-05006-0H

SCREW, PAN (5X6)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

16

Lawn-Boy 99101-124-0600

JET, MAIN (#60)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

Lawn-Boy 99101-124-0620

JET, MAIN (#62)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

Lawn-Boy 99101-124-0650

JET, MAIN (#65)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

17

Lawn-Boy 16024-ZE1-811

SCREW SET, DRAIN

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
