10656 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) CAMSHAFT ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

Gold Series Walk-Behind Mower

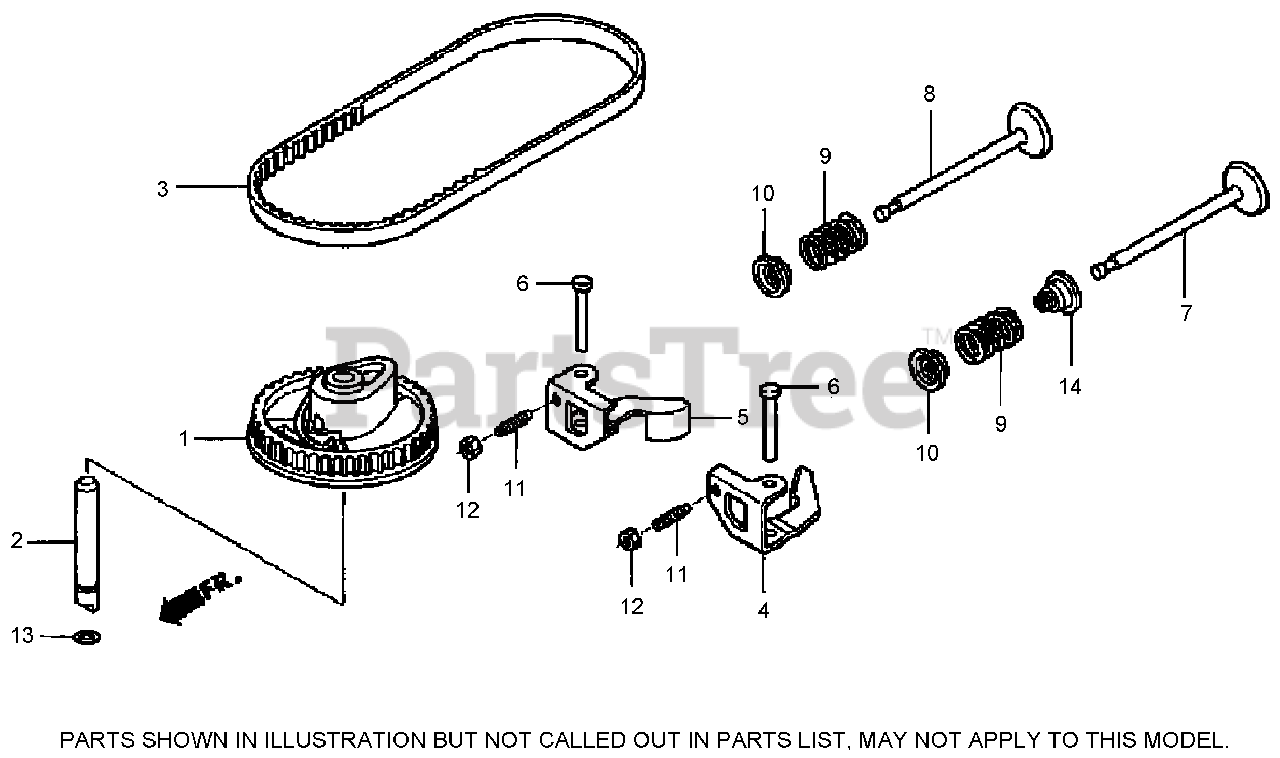

CAMSHAFT ASSEMBLY HONDA MODEL NO. GCV160AR3A1 Parts Diagram

  • Title
1

Lawn-Boy 14320-ZL8-010

PULLEY, CAMSHAFT

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 14324-ZL8-000

SHAFT, CAM PULLEY

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 14400-Z0J-014

BELT, TIMING (84HU7 G-

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 14431-Z0J-000

ARM, IN. VALVE ROCKER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 14441-Z0J-000

ARM, EX. VALVE ROCKER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 14461-ZL8-000

SHAFT, ROCKER ARM

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

7

Lawn-Boy 14711-ZL8-000

VALVE, IN.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 14721-ZL8-000

VALVE, EX.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy 14751-ZL8-000

SPRING, VALVE

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 14771-Z0J-000

RETAINER, VALVE SPRING

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 90012-333-000

SCREW, TAPPET ADJ.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 90206-001-000

NUT, TAPPET ADJ.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 91301-ZM0-V31

O-RING (6.8X1.9)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

14

Lawn-Boy 12209-ZM0-003

SEAL, VALVE STEM

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
