10655 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 250000001 - 250999999) (2005) TRANSMISSION ASSEMBLY 106-3956 Parts Diagram

Gold Series Walk-Behind Mower

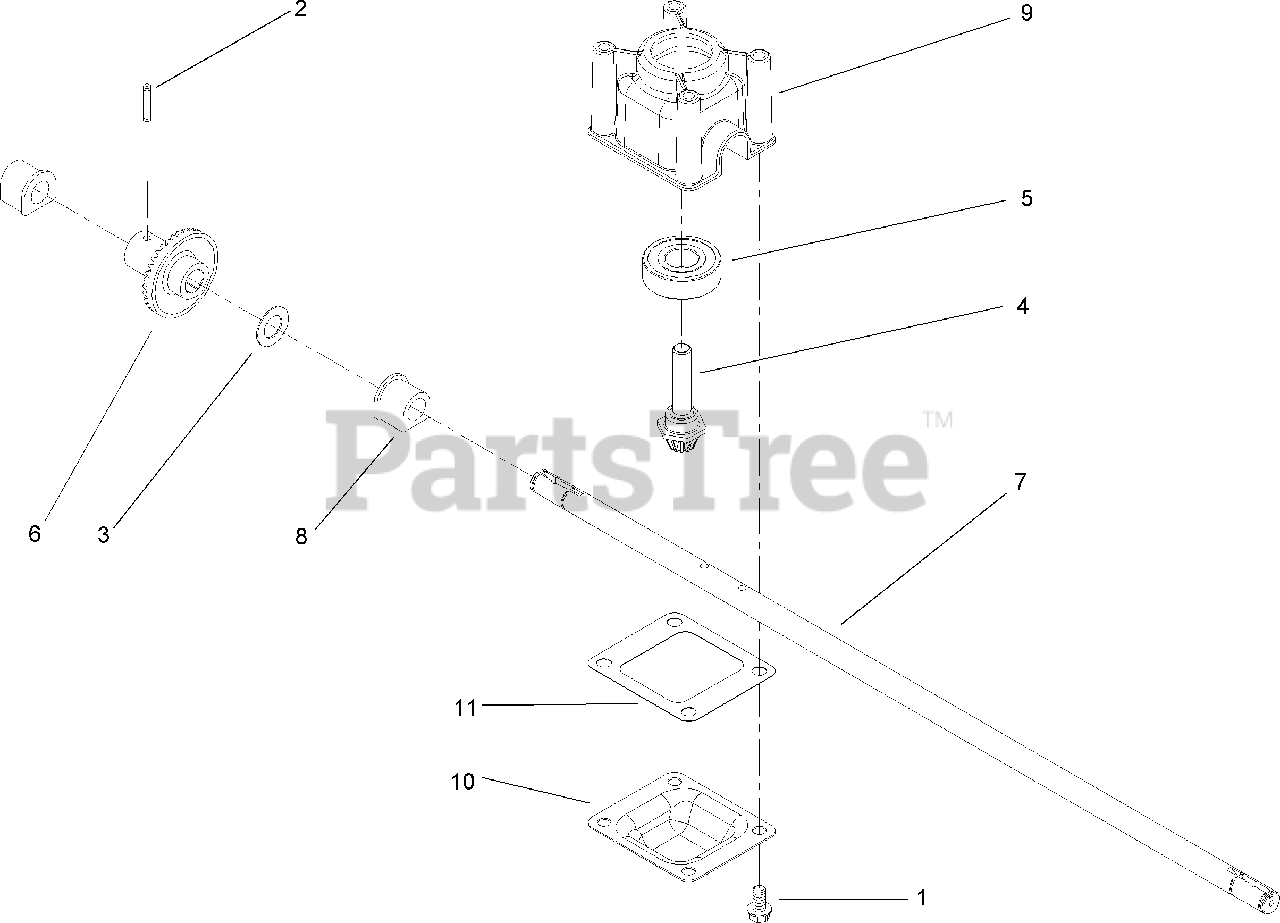

TRANSMISSION ASSEMBLY 106-3956 Parts Diagram

  • Title
1

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 3285-19

PIN-GROOVE

$2.99

$

In Stock, Qty 20+

0

3

$7.99

$

In Stock, Qty 20+

0

4

$16.99

$

In Stock, Qty 9

0

5

Lawn-Boy 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 104-8671

Gear-Bevel, 37t

$47.99

$

In Stock, only 4 left!

0

7

Lawn-Boy 106-3957

Shaft-Output

$91.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 104-8673

Bushing-Shaft, Output

$5.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 104-8674

Gearcase-Upper

$12.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 104-8675-03

Cover-Gearcase

$7.49

$

In Stock, only 2 left!

0

11

Lawn-Boy 105-6839

Gasket-Gearcase

$4.49

$

In Stock, Qty 14

0
