10655 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 250000001 - 250999999) (2005) P2P HANDLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

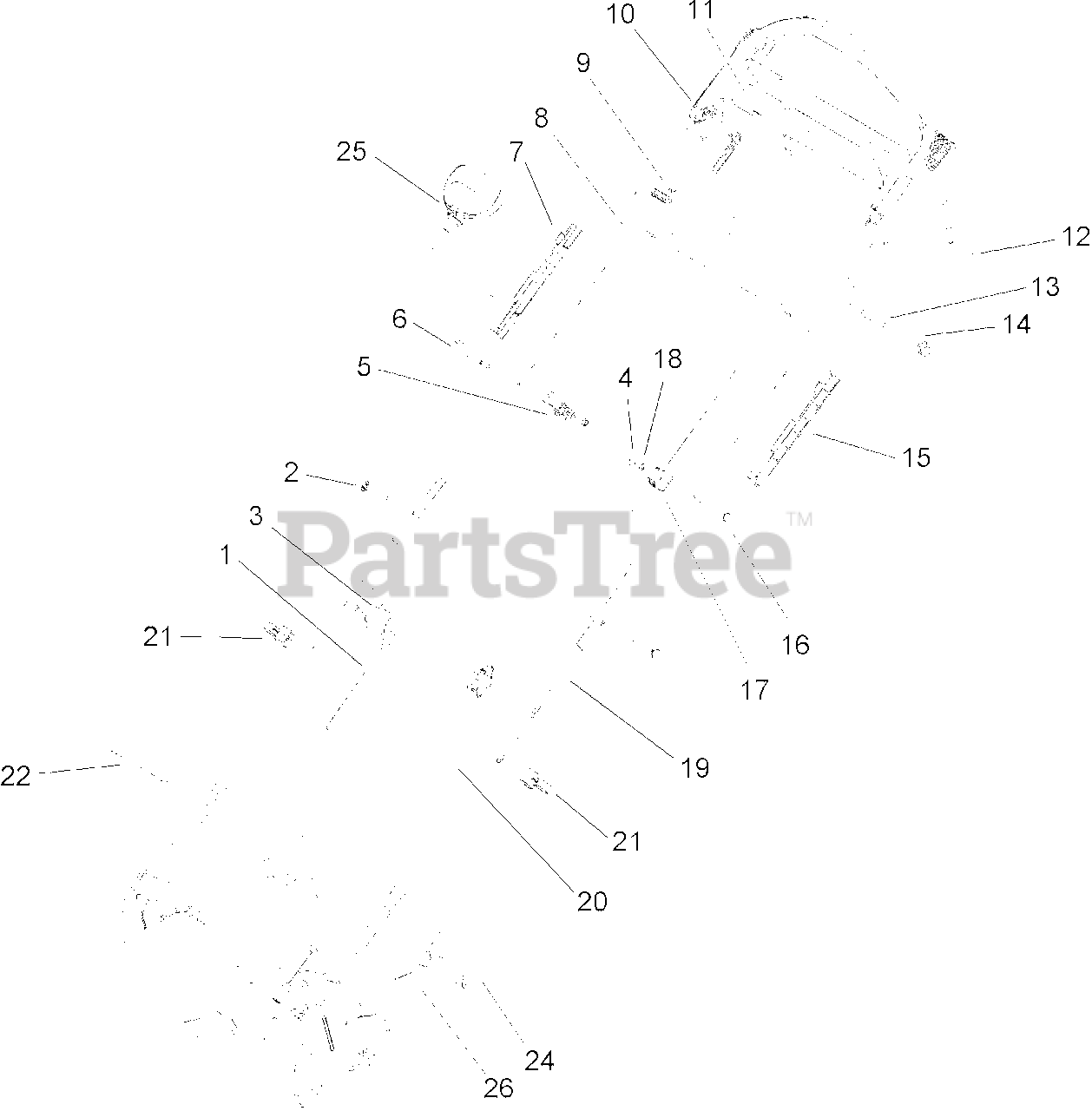

P2P HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 107-1902

CABLE-BRAKE

$67.99

$

In Stock, only 2 left!

0

2

Lawn-Boy 92-2260

SCREW-HANDLE

$3.99

$

In Stock, only 2 left!

0

3

Lawn-Boy 106-4161

KNOB-HANDLE

$5.49

$

In Stock, Qty 15

0

4

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

5

Lawn-Boy 106-8331

ANCHOR-CABLE

$5.99

$

In Stock, Qty 8

0

6

Lawn-Boy 107-1935

GUIDE-ROPE

$10.99

$

In Stock, only 3 left!

0

7

$8.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 104-8680-05

Handle-Upper

$74.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 104-8690

Spring-Torsion
(Superseded to 136-7166)

$3.49

$

In Stock, only 4 left!

0

10

Lawn-Boy 106-8337

HANDLE-CONTROL, GRAY

$

$

Not available

11

Lawn-Boy 106-8390

DECAL-HANDLE

$

$

Not available

12

Lawn-Boy 104-8679-03

Bail-Brake
(Superseded to 131-0880-03)

$25.99

$

In Stock, only 1 left!

0

13

Lawn-Boy 99-1588

BAR-CONTROL, TRACTION
(Superseded to 136-7150)

$17.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 99-1589

LEVER-TRACTION

$7.99

$

In Stock, Qty 15

0

15

$8.99

$

In Stock, only 3 left!

0

16

$3.49

$

In Stock, only 1 left!

0

17

Lawn-Boy 92-7729

ANCHOR-CABLE, UPPER

$4.99

$

In Stock, only 4 left!

0

18

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 107-0784-05

HANDLE-LOWER
(Superseded to 112-6440-05)

$67.99

$

In Stock, only 1 left!

0

20

Lawn-Boy 105-1844

Cable-Traction

$27.99

$

In Stock, only 4 left!

0

21

Lawn-Boy 106-6805

Guide-Cable
(Superseded to 114-7988)

$2.99

$

In Stock, Qty 7

0

22

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, Qty 6

0

24

Lawn-Boy 107-0768

RELEASE LEVER ASM

$

$

Not available

25

Lawn-Boy 106-8345

HANDLE-RECOIL
(Superseded to 110-1778)

$31.99

$

In Stock, Qty 6

0

26

Lawn-Boy 107-7472

SPRING-TORSION

$4.49

$

Usually ships in 3-6 days

0
