10655 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 250000001 - 250999999) (2005) OIL PAN ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

Gold Series Walk-Behind Mower

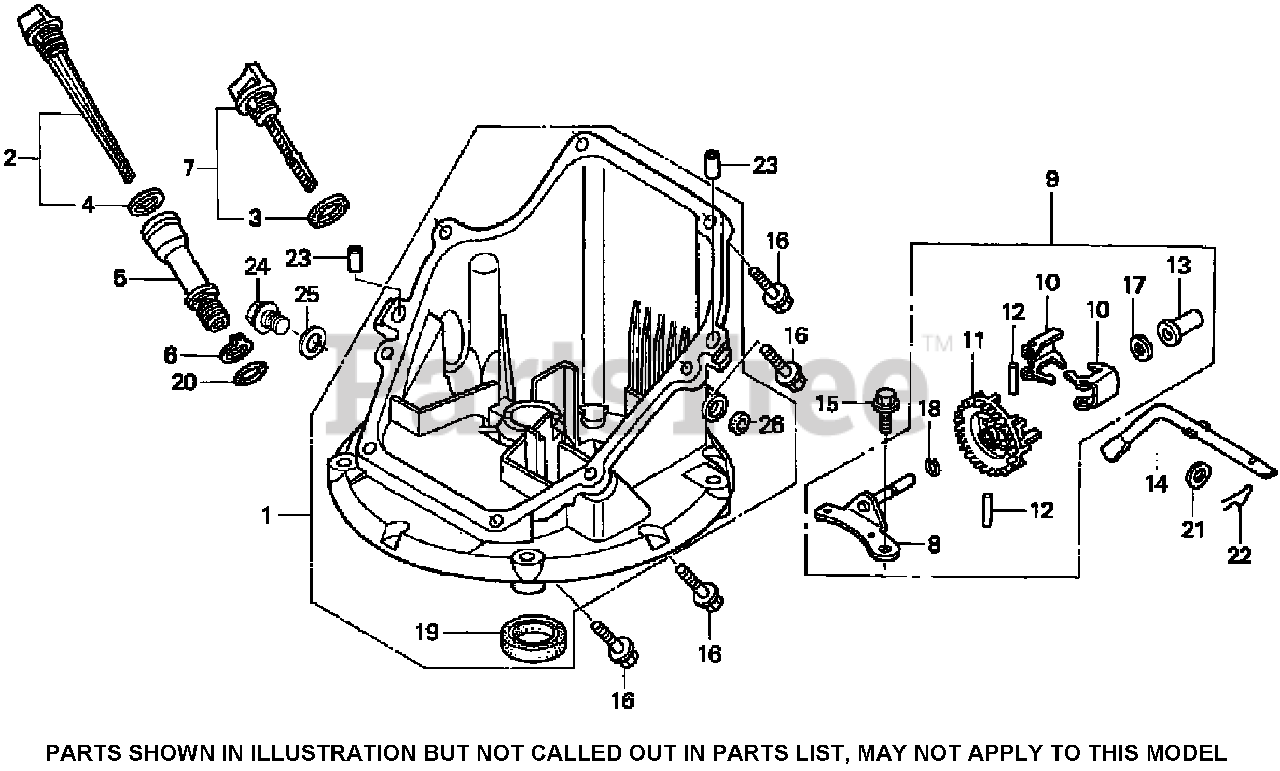

OIL PAN ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

  • Title
1

Lawn-Boy 11300-ZM0-811

PAN ASM., OIL

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 15650-ZM0-801

DIPSTICK-OIL

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 15625-ZE6-000

GASKET-CAP, OIL FILLER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 15631-ZM0-000

EXTENSION-FILLER, OIL

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 15639-ZM0-000

WASHER-LOCK, EXTENSION

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 16508-ZM0-010

SHAFT-HOLDER, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy 16510-ZM0-010

GOVERNOR ASM

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 16511-ZL8-000

WEIGHT-GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 16512-ZM0-000

HOLDER-WEIGHT, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 16513-ZE1-000

PIN-WEIGHT, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 16531-ZE1-000

SLIDER-GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

14

Lawn-Boy 16541-ZM0-000

SHAFT-ARM, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

15

Lawn-Boy 90014-952-000

BOLT-FLANGE (6X14)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

16

Lawn-Boy 90121-952-000

BOLT-FLANGE (6X25)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

17

Lawn-Boy 90451-ZE1-000

WASHER-THRUST (6MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

18

Lawn-Boy 90602-ZE1-000

CLIP-HOLDER, GOVERNOR

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

19

Lawn-Boy 91202-ZL8-003

SEAL-OIL (28X41.25X6)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

20

Lawn-Boy 91356-MA6-005

O-RING

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

21

Lawn-Boy 94101-06800

WASHER-PLAIN (6MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

22

Lawn-Boy 94251-08000

PIN-LOCK (8MM)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

23

Lawn-Boy 94301-08200

PIN-DOWEL (8X20)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
