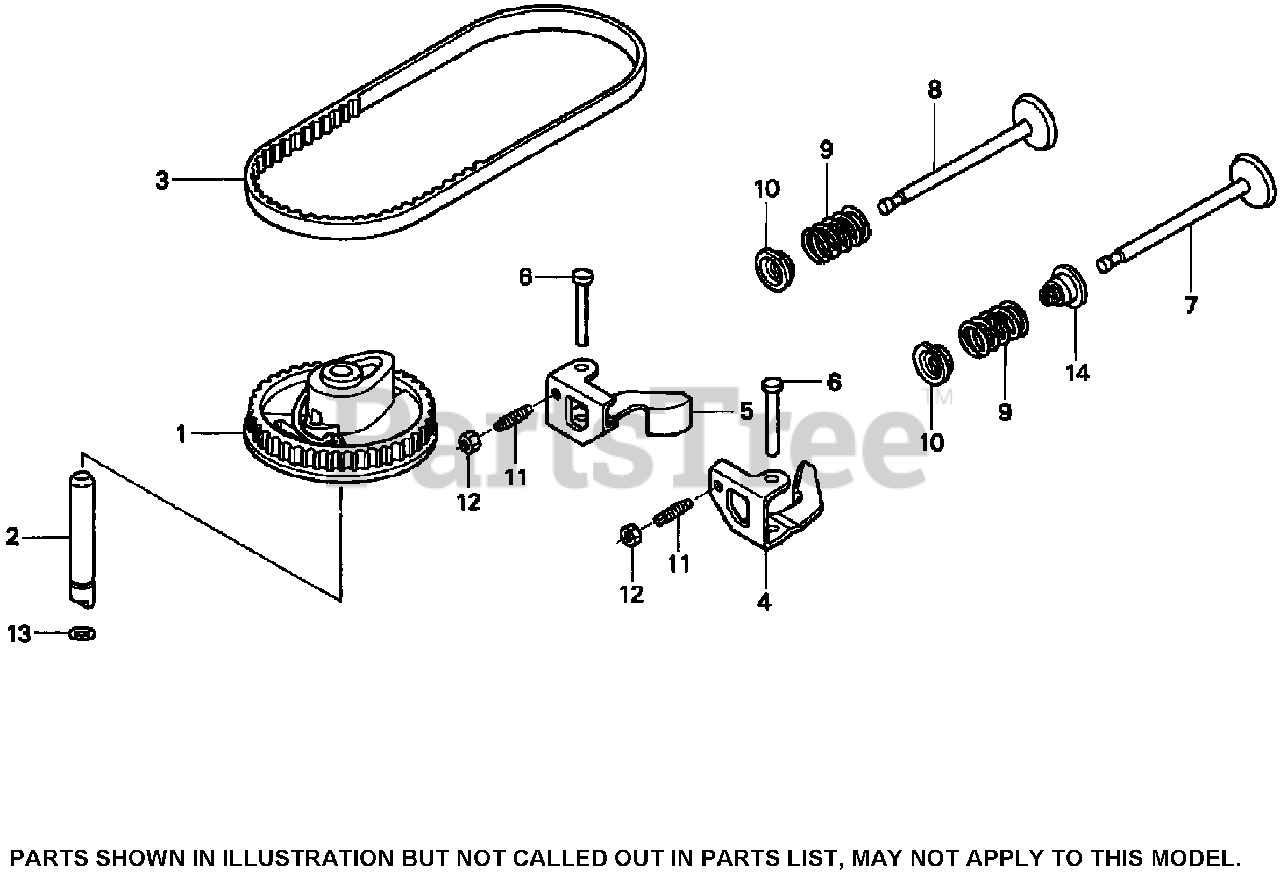

10655 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 250000001 - 250999999) (2005) CAMSHAFT PULLEY ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

Gold Series Walk-Behind Mower

CAMSHAFT PULLEY ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

  • Title
1

Lawn-Boy 14320-ZL8-010

PULLEY-CAMSHAFT

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 14324-ZL8-000

SHAFT-PULLEY

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 14400-Z0J-014

BELT-TIMING (84HU7 G-200)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 14431-ZOJ-000

ARM-IN. VALVE ROCKER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 14441-Z0J-000

ROCKER ARM-VALVE, EXHAUST

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

6

Lawn-Boy 14461-ZL8-000

SHAFT-ARM, ROCKER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

7

Lawn-Boy 14711-ZL8-000

VALVE, IN.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

8

Lawn-Boy 14721-ZL8-000

VALVE-EXHAUST

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy 14751-ZL8-000

SPRING-VALVE

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 14771-ZOJ-000

RETAINER-VALVE SPRING

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 90012-333-000

SCREW-TAPPET, ADJ.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

12

Lawn-Boy 90206-001-000

NUT-TAPPET, ADJ.

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

13

Lawn-Boy 91301-ZM0-V31

O-RING (6.8X1.9)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

14

Lawn-Boy 12209-ZM0-003

SEAL-STEM, VALVE

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
