10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) REAR AXLE AND LOW WHEEL ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

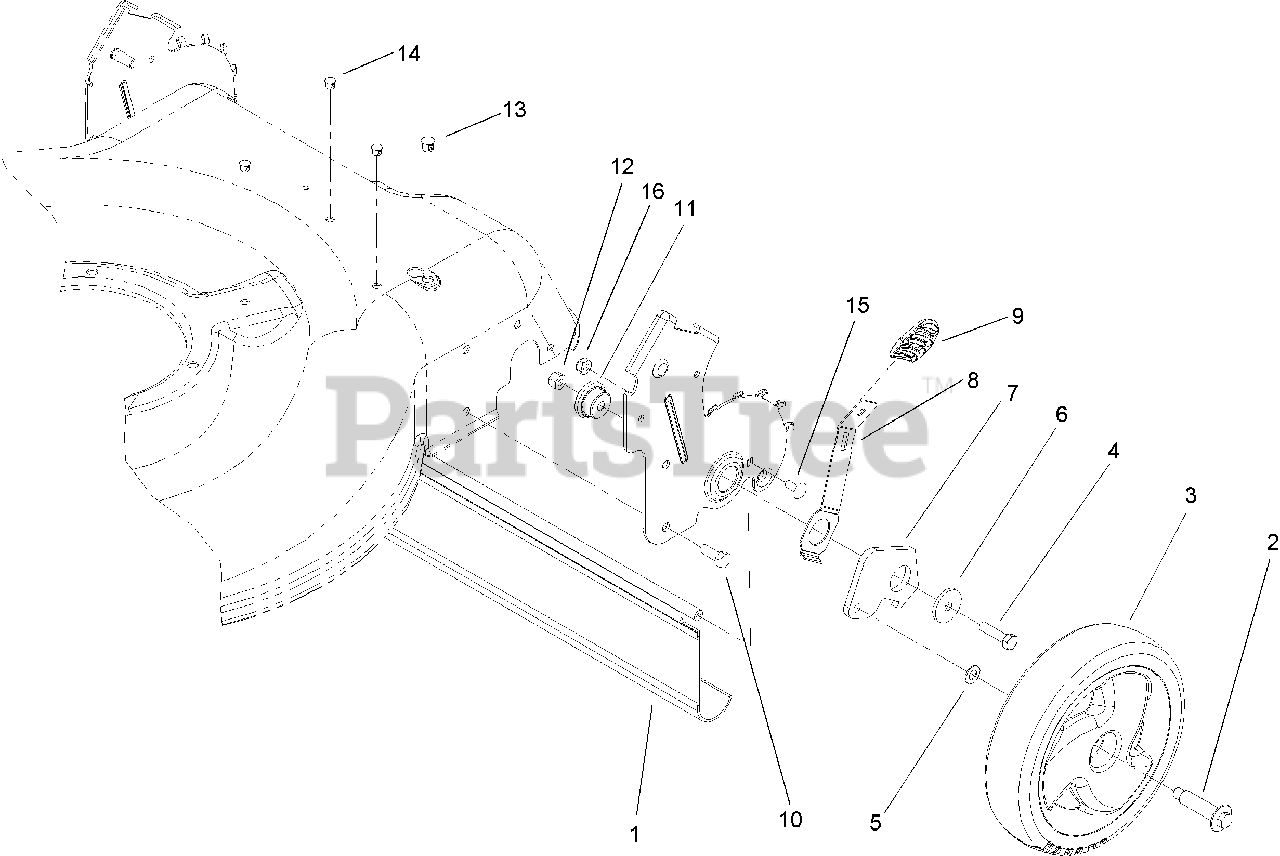

REAR AXLE AND LOW WHEEL ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 105-1843

Shield-Trailing
(Superseded to 114-1585)

$25.99

$

In Stock, only 4 left!

0

2

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 9

0

3

Lawn-Boy 107-1916

8IN WHEEL ASM
(Superseded to 137-4834)

$34.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

5

$2.99

$

In Stock, Qty 18

0

6

Lawn-Boy 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 12

0

7

Lawn-Boy 105-1819

Arm-Pivot, Rear

$12.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 105-1809

Arm-Spring

$11.99

$

In Stock, only 2 left!

0

9

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

10

Lawn-Boy 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

12

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 104-9368

Plug-Dome

$0.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 104-9373

Plug-Dome

$1.99

$

In Stock, only 3 left!

0

15

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0
