10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) MUFFLER ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

Gold Series Walk-Behind Mower

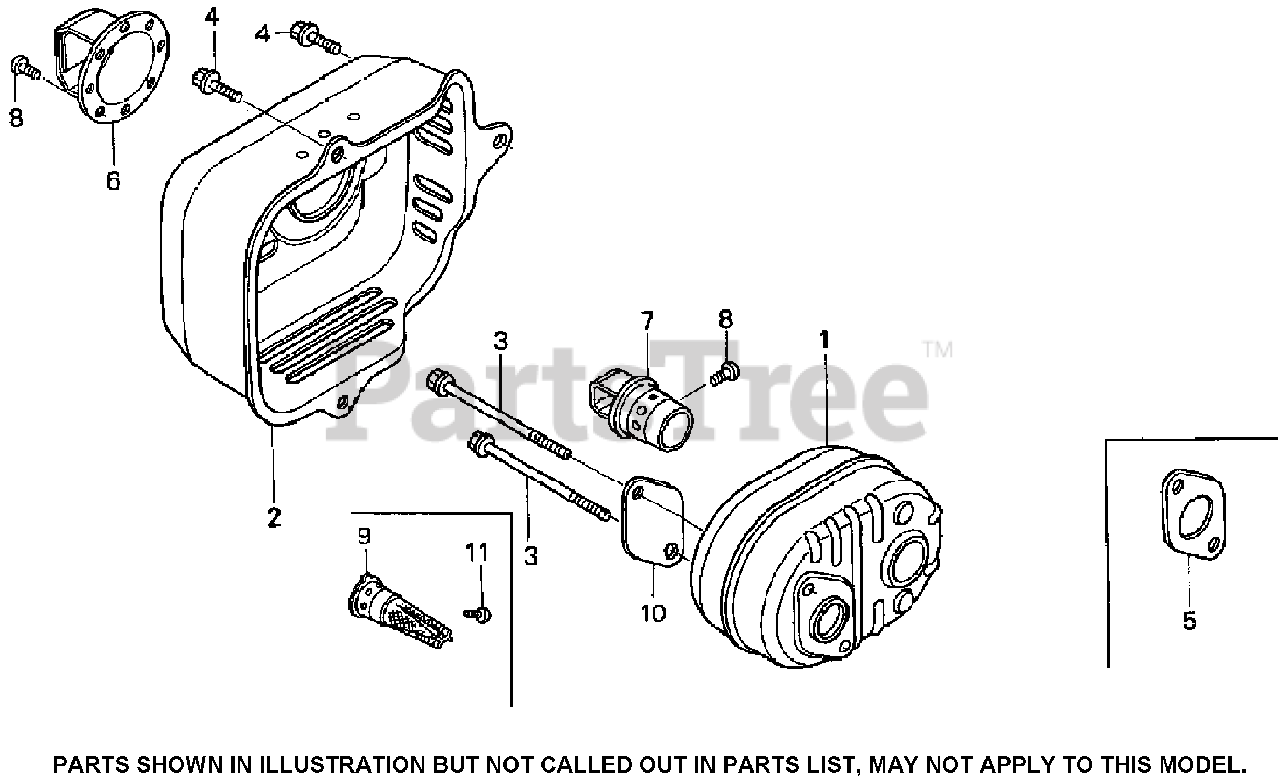

MUFFLER ASSEMBLY HONDA MODEL NO. GCV160A STA1 Parts Diagram

  • Title
1

Lawn-Boy 18310-ZM0-000

MUFFLER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

2

Lawn-Boy 18321-Z0L-J00

PROTECTOR, MUFFLER (CBU)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

3

Lawn-Boy 90004-ZL8-000

BOLT, FLANGE (6X79) (CT200)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

4

Lawn-Boy 90013-883-000

BOLT-FLANGE (6X12)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

5

Lawn-Boy 18381-ZL8-305

GASKET, MUFFLER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

9

Lawn-Boy A8350-ZL8-000

ARRESTER-SPARK

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

10

Lawn-Boy 18356-ZL8-000

PLATE, ARRESTER NUMBER

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable

11

Lawn-Boy 90055-ZE1-000

SCREW-TAPPING (4X6)

Note: Obtain parts from your local Honda dealer.

$

$

Currently unavailable
