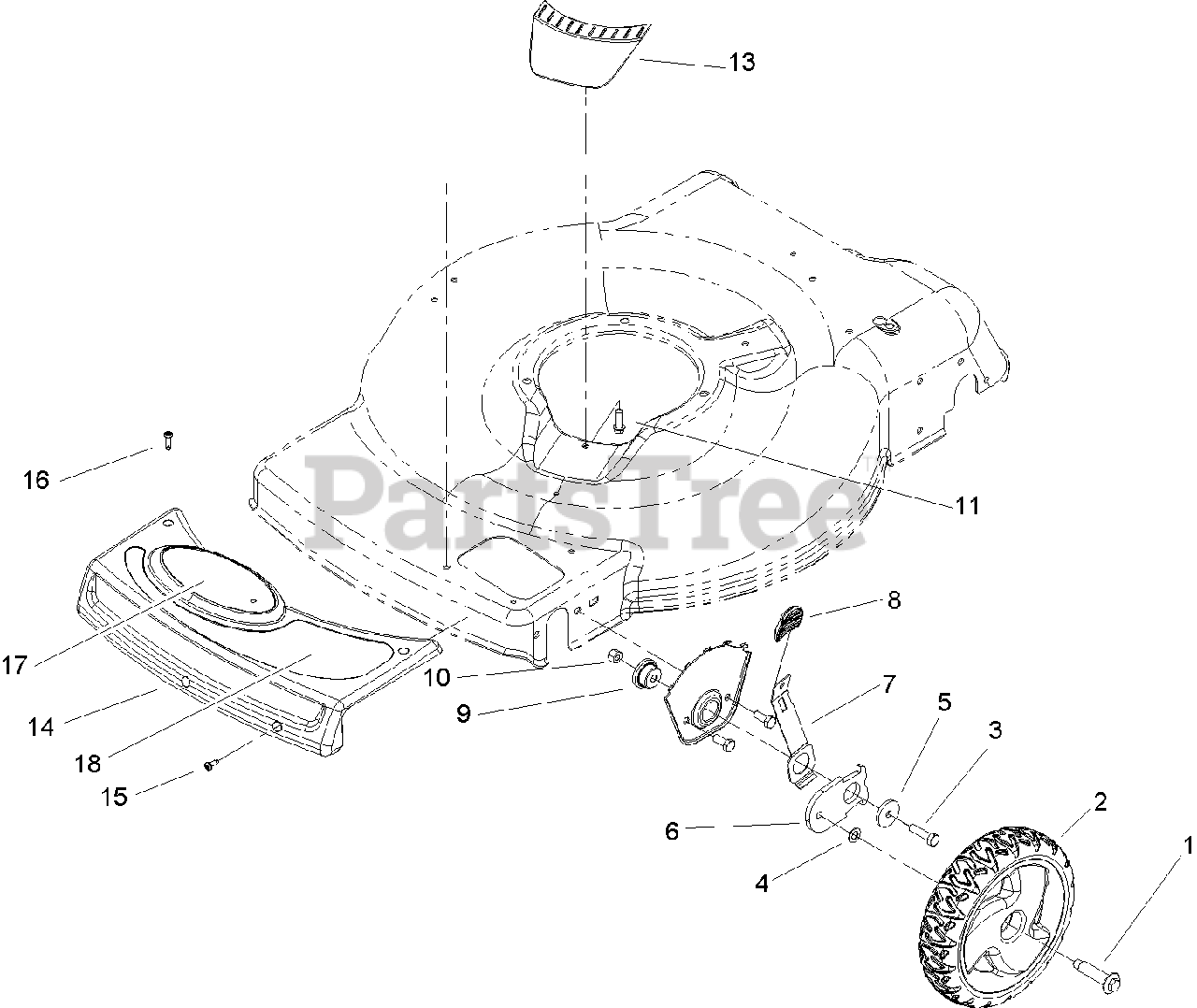

10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) FRONT AXLE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

FRONT AXLE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 107-1916

8IN WHEEL ASM
(Superseded to 137-4834)

$30.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 11

0

6

Lawn-Boy 105-1807

ARM-PIVOT, FRONT
(Superseded to 137-9128)

$6.99

$

In Stock, Qty 6

0

7

Lawn-Boy 105-1809

Arm-Spring

$11.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 107-1904

KNOB-LEVER, HOC

$

$

Not available

9

Lawn-Boy 105-1818

Bushing-Mount, HOC

$4.99

$

In Stock, Qty 9

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

11

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 105-3005

COVER-BELT OPENING

$6.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 107-1908

BUMPER-WPM

$

$

Not available

15

Lawn-Boy 105-6849

SCREW-THREAD FORMING

$1.49

$

In Stock, only 3 left!

0

16

Lawn-Boy 105-6828

Screw

$2.49

$

Usually ships in 3-6 days

0

17

Lawn-Boy 107-3764

DECAL-HOUSING

$

$

Not available

18

Lawn-Boy 107-3763

DECAL-HOUSING

$26.99

$

Usually ships in 3-6 days

0
