10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) ENGINE AND BLADE ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

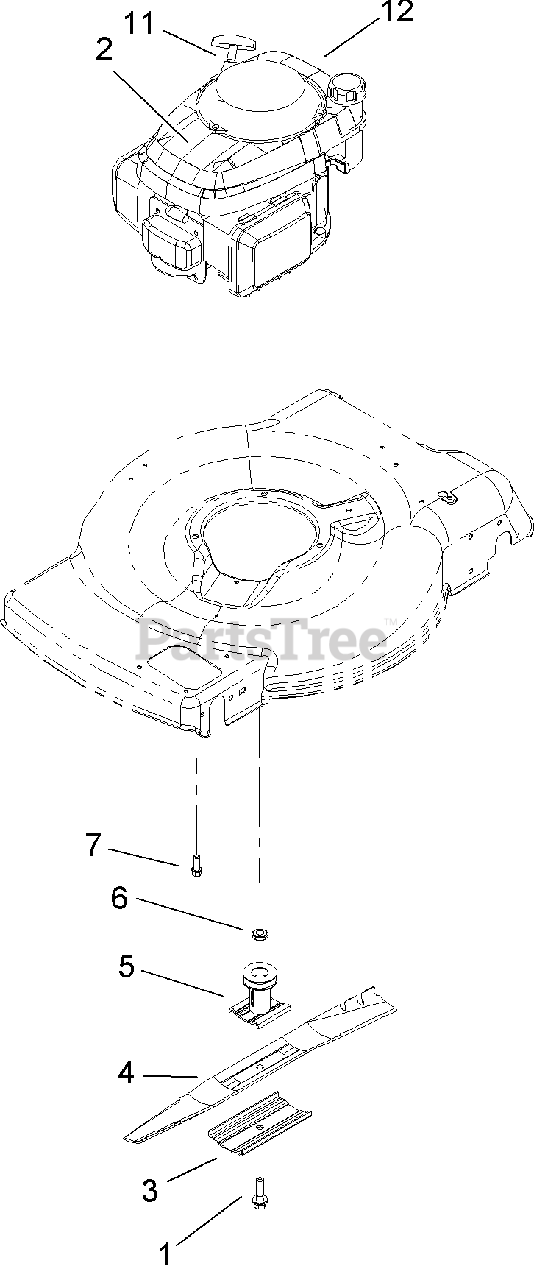

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 107-3760

DECAL-RECOIL

$

$

Not available

3

Lawn-Boy 105-3029-03

Support-Blade
(Superseded to 108-3766-03)

$10.99

$

In Stock, Qty 9

0

4

Lawn-Boy 104-8697-03

BLADE-22 INCH
(Superseded to 131-4547-03)

$22.99

$

In Stock, Qty 19

0

5

Lawn-Boy 106-3987

BLADE DRIVER ASM

$31.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

7

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 92-1701

STOP-ROPE
(Superseded to 2210-316)

$7.99

$

Usually ships in 3-6 days

0

12

ENGINE-HONDA MODEL NO.GCV 160A STA1

Note: Not serviced separately

$

$

Not available
