10654 - Lawn-Boy Gold Series Walk-Behind Mower (SN: 240000001 - 240999999) (2004) DECK, SIDE CHUTE, AND REAR DOOR ASSEMBLY Parts Diagram

Gold Series Walk-Behind Mower

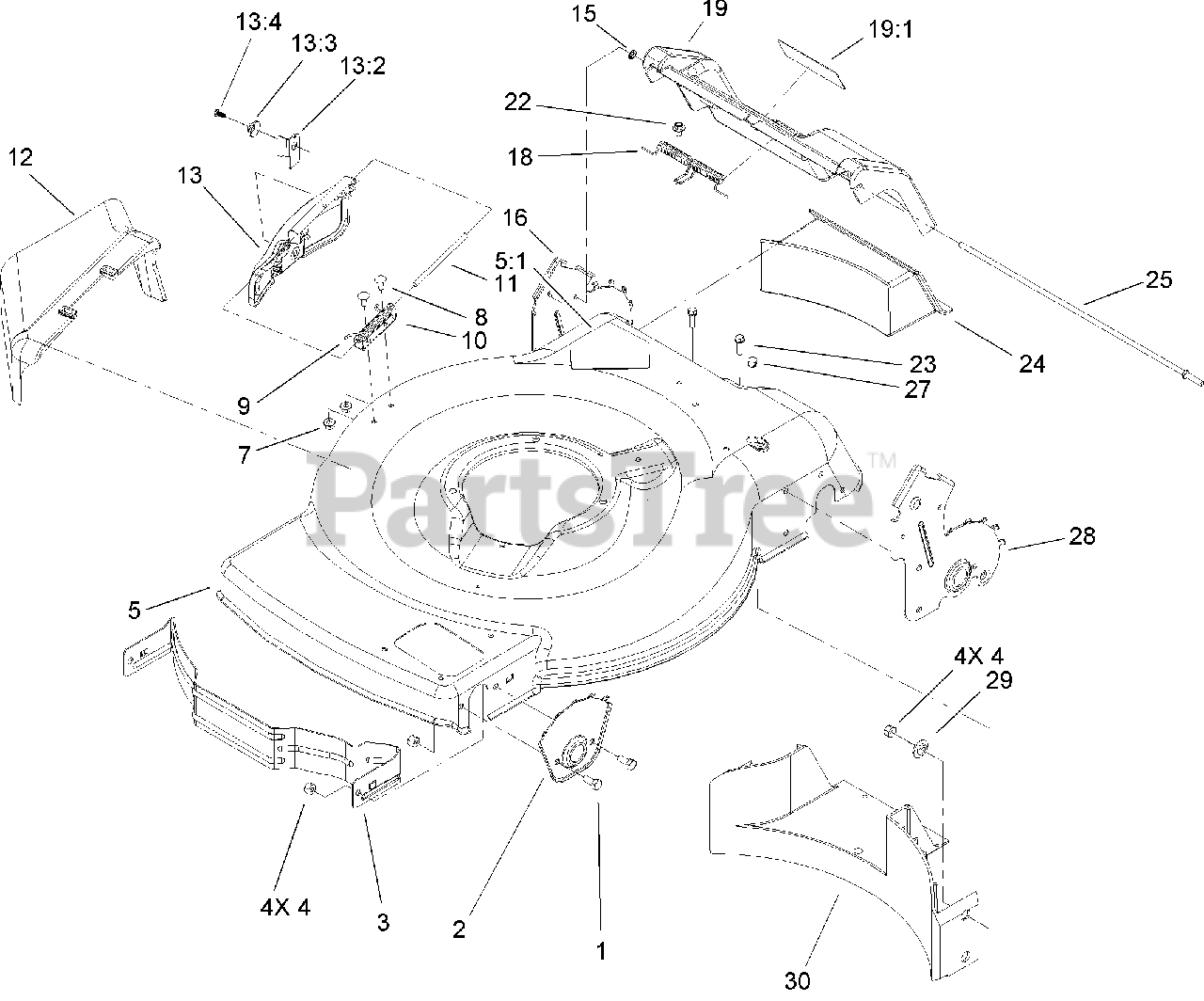

DECK, SIDE CHUTE, AND REAR DOOR ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

2

Lawn-Boy 105-1808-03

Plate-HOC, Front

$

$

Not available

3

Lawn-Boy 104-8694-03

Baffle-Front

$112.99

$

In Stock, only 3 left!

0

4

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 106-8343

HOUSING ASM

$

$

Not available

5:1

Lawn-Boy 105-6838

DECAL-DANGER

$6.99

$

In Stock, only 2 left!

0

7

$2.99

$

In Stock, only 2 left!

0

8

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 99-5293

SPRING-TORSION

$10.99

$

In Stock, only 4 left!

0

10

Lawn-Boy 99-5292

BRACKET-COVER
(Superseded to 119-7079)

$12.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 13

0

12

Lawn-Boy 105-3028

CHUTE-SIDE DISCHARGE

$11.99

$

In Stock, Qty 5

0

13

Lawn-Boy 106-8394

DISCHARGE DOOR ASM

$21.99

$

Usually ships in 3-6 days

0

13:2

Lawn-Boy 107-0795

LATCH-DOOR

$1.49

$

In Stock, only 3 left!

0

13:3

Lawn-Boy 107-7456

CAP-DOOR
(Superseded to 138-3242)

$3.99

$

In Stock, only 4 left!

0

13:4

Lawn-Boy 107-7461

SCREW-PLASTITE

$1.49

$

In Stock, Qty 8

0

15

$6.49

$

In Stock, only 4 left!

0

16

Lawn-Boy 107-0790

RH REAR HOC PLATE ASM
(Superseded to 112-6441)

$

$

Not available

18

Lawn-Boy 105-3032

Spring-Door, Rear

$21.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 106-8389

DOOR ASM-SERVICE

$

$

Not available

19:1

Lawn-Boy 106-8388

DECAL-WARNING, DOOR

$

$

Not available

22

Lawn-Boy 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 105-1842

Plug-Discharge, Rear

$12.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 105-1827

Rod-Pivot, Rear Door

$12.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 104-9369

Plug-Dome

$1.49

$

In Stock, only 1 left!

0

28

Lawn-Boy 107-0783

LH REAR HOC PLATE ASM
(Superseded to 112-6443)

$31.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 105-3006

Washer-Stepped

$2.99

$

In Stock, only 1 left!

0

30

Lawn-Boy 105-3047

Baffle-Rear

$

$

Not available
