10651 - Lawn-Boy Walk-Behind Mower (SN: 006900001 - 006999999) (1996) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

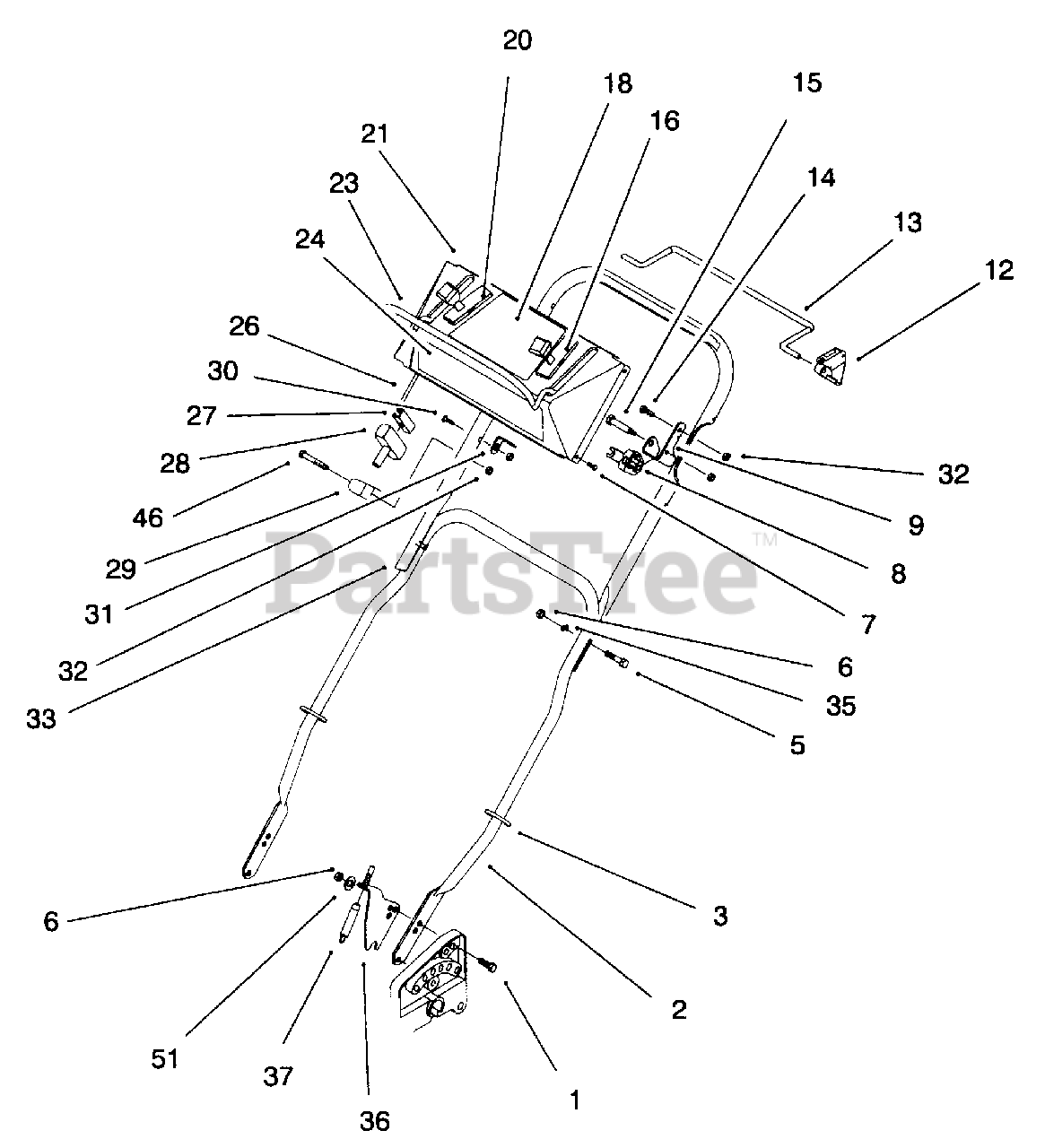

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 3230-29

Bolt-Carriage

$2.99

$

In Stock, Qty 12

0

2

Lawn-Boy 92-6537

Handle-Section Lower
(Superseded to 92-6537-05)

$

$

Not available

3

Lawn-Boy 614249

Tie Strap

$1.49

$

In Stock, Qty 6

0

5

Lawn-Boy 322-9

Screw-Hex Hd.

$3.49

$

In Stock, only 3 left!

0

6

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

7

Lawn-Boy 92-9665

Screw-Phillips Hd.

$6.99

$

In Stock, only 4 left!

0

8

Lawn-Boy 92-1078

Cam-Brake

$52.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 92-1094

Bracket-Bail Stop

$37.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-5412

Stop-Pivot
(Superseded to 107-0757)

$5.49

$

In Stock, only 1 left!

0

13

Lawn-Boy 92-1617

Bail-SP Control
(Superseded to 92-1001-03)

$58.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 321-4

Screw-Hex Hd. Cap

$1.49

$

In Stock, Qty 20+

0

15

$

$

Not available

16

Lawn-Boy 93-3683

Cable-Throttle

$99.99

$

In Stock, only 1 left!

0

18

Lawn-Boy 93-6624

Decal-Control Panel

$

$

Not available

20

Lawn-Boy 92-8926

Control-Speed Ground

$95.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 16-8929

Panel-Control (Incl. Ref. #18)

$

$

Not available

23

Lawn-Boy 92-1093

Bail-Engine Control

$

$

Not available

24

Lawn-Boy 93-0297

Decal-Console Front

$32.99

$

In Stock, Qty 9

0

26

Lawn-Boy 93-3248

Cable-Control

$115.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612824

Clip-Rope Insert

$4.49

$

In Stock, Qty 10

0

28

Lawn-Boy 612825

Handle-Starter
(Superseded to 81-1630)

$21.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 93-7383

Guide-Rope
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 5

0

30

Lawn-Boy 92-2268

Screw-Handle

$2.99

$

In Stock, only 1 left!

0

31

Lawn-Boy 92-2928

Bracket-Cable Anchor

$15.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 3296-73

Nut-Lock

$5.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$

$

Not available

35

$3.49

$

In Stock, Qty 8

0

36

Lawn-Boy 92-7899

Bracket-Traction Cable
(Superseded to 92-7899-03)

$11.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 92-6518

Cable-Traction

$51.99

$

In Stock, only 2 left!

0

46

Lawn-Boy 321-51

Screw-Hex Hd. Cap

$1.49

$

In Stock, only 2 left!

0

49

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

51

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0
