10651 - Lawn-Boy Walk-Behind Mower (SN: 006900001 - 006999999) (1996) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

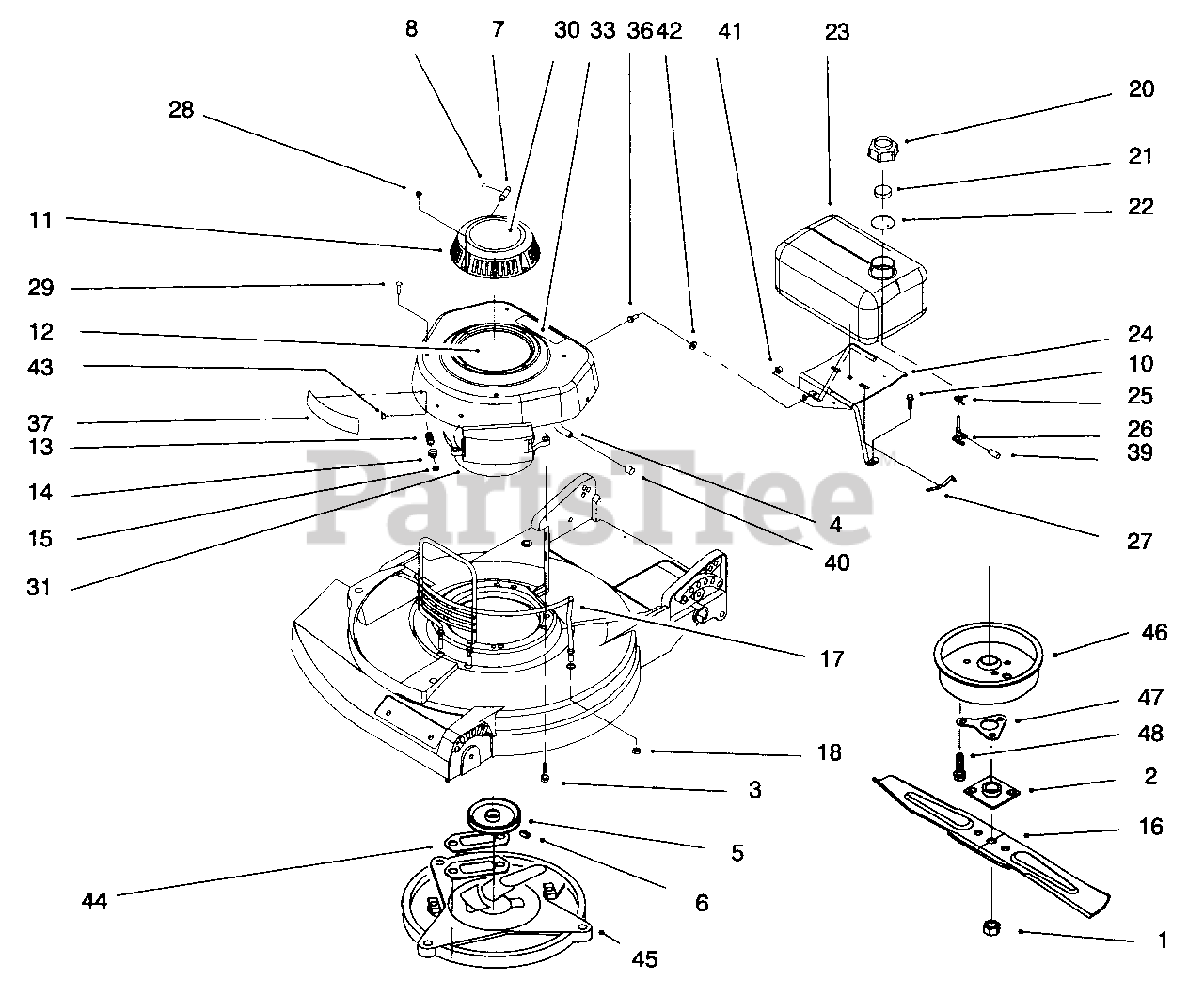

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, only 1 left!

0

2

Lawn-Boy 677525

Plate & Collar Assembly

$51.99

$

In Stock, only 1 left!

0

3

Lawn-Boy 92-1648

Screw-Engine Mount
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 612784

Hose-Gas

$10.99

$

Usually ships in 3-6 days

0

5

$109.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 610345

Screw-Set

$9.49

$

In Stock, Qty 5

0

7

Lawn-Boy 47-2480

Rope-Stop

$

$

Not available

8

Staple

Note: Obtain Locally

$

$

Not available

10

Lawn-Boy 32144-3

Screw-Hex Washer Hd.
(Superseded to 32144-10)

$4.99

$

In Stock, Qty 6

0

11

Lawn-Boy 684622

Housing-Starter

$

$

Not available

12

Lawn-Boy 683638

Shroud Assembly

$

$

Not available

13

$9.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 611509

Actuator-Brake Lever

$5.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 611213

Retainer

$2.49

$

In Stock, only 4 left!

0

16

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$33.99

$

In Stock, only 3 left!

0

17

Lawn-Boy 94-1618

Guard-Engine

$

$

Not available

18

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 611327

Cap-Fuel
(Superseded to 682755)

$25.99

$

In Stock, only 1 left!

0

21

Lawn-Boy 609150

Foam-Baffle

$6.49

$

In Stock, Qty 11

0

22

$1.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 145476

Tank-Fuel

$

$

Not available

24

Lawn-Boy 94-4252

Leg & Saddle Assembly
(Superseded to 94-4252-03)

$

$

Not available

25

Lawn-Boy 312387

Clamp-Hose

$1.49

$

In Stock, Qty 8

0

26

Lawn-Boy 677052

Valve & Screen

$23.99

$

In Stock, only 2 left!

0

27

$5.49

$

In Stock, Qty 6

0

28

Lawn-Boy 612428

Screw-Sems

$2.49

$

In Stock, only 4 left!

0

29

Lawn-Boy 32144-53

Screw-Thr'd Form

$3.99

$

In Stock, Qty 10

0

30

Lawn-Boy 93-0296

Decal-Recoil

$

$

Not available

31

Engine-2 Cycle

$

$

Not available

33

Lawn-Boy 612753

Decal-Oil

$

$

Not available

36

Lawn-Boy 3229-22

Screw-Carriage
(Superseded to 3229-11)

$1.49

$

In Stock, Qty 20+

0

37

Lawn-Boy 612754

Applique

$

$

Not available

39

Lawn-Boy 2410-77

Plug-Fuel Valve

$

$

Not available

40

Lawn-Boy 2410-76

Plug-Fuel Line

$1.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 602315

Nut-Lock

$4.99

$

In Stock, only 2 left!

0

42

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

43

Lawn-Boy 145945

Retainer-Applique

$

$

Not available

44

Lawn-Boy 93-1233

Gasket-Muffler

$1.99

$

In Stock, Qty 6

0

45

Lawn-Boy 92-1054

Plate-Muffler

$121.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 682876

Muffler Cover Assembly

$165.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 609786

Support-Crankshatt

$23.99

$

In Stock, only 2 left!

0

48

$4.99

$

In Stock, Qty 14

0
