10650 - Lawn-Boy Walk-Behind Mower (SN: 004900001 - 004999999) (1994) Engine Assembly Parts Diagram

Walk-Behind Mower

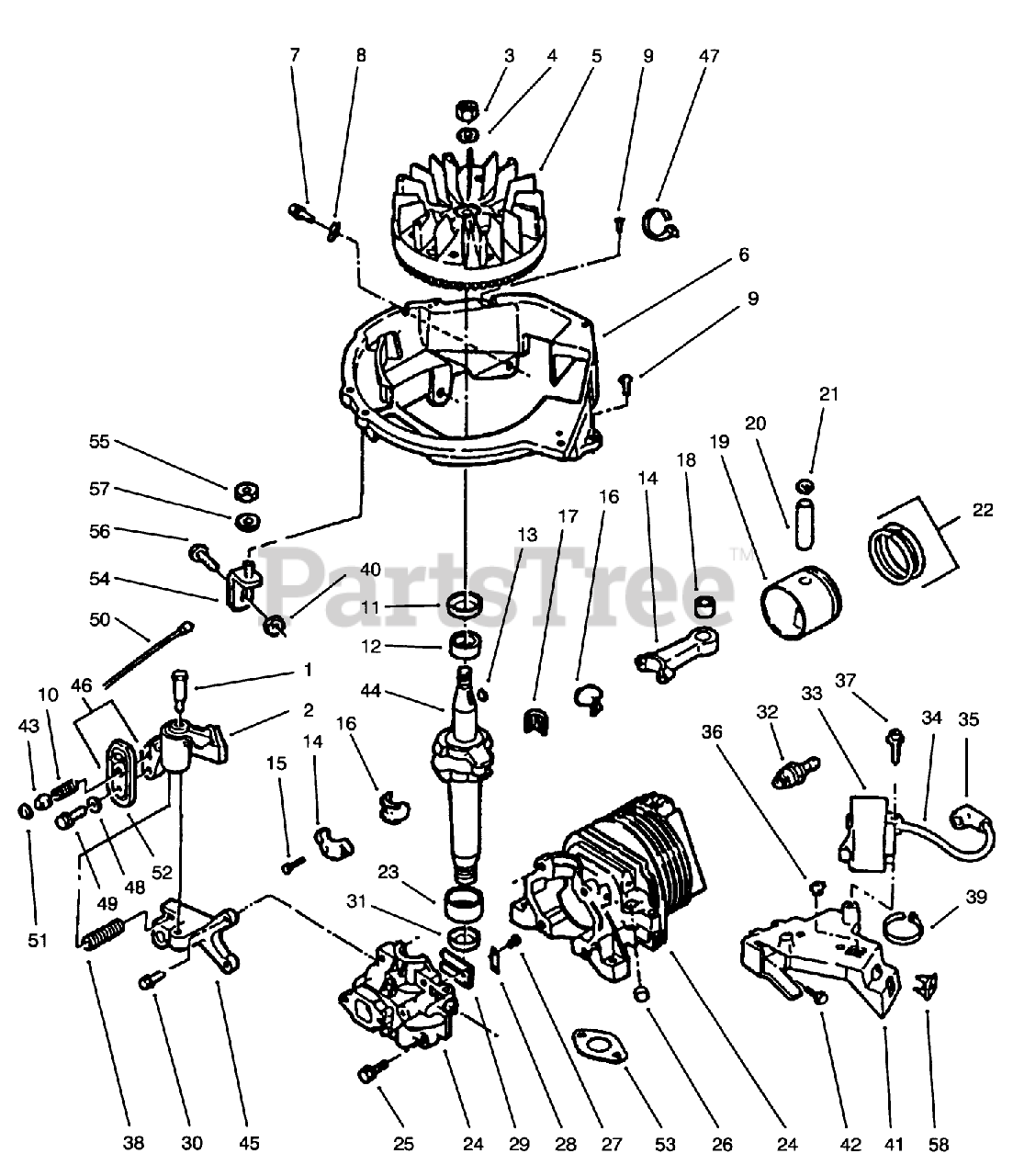

Engine Assembly Parts Diagram

  • Title
1

Lawn-Boy 613529

SCREW-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 682683

DISCONTINUED

$

$

Not available

$3.49

$

In Stock, Qty 6

0

4

Lawn-Boy 316959

See Supercession: 3253-6
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 683580

FLYWHEEL ASSY F

$318.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 612427

BASE SHROUD F

$

$

Not available

7

Lawn-Boy 609947

SCREW-SEMS

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611191

DISCONTINUED

$

$

Not available

9

Lawn-Boy 609808

SCREW F

$11.99

$

Usually ships in 3-6 days

0

10

$9.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 611396

SEAL-OIL

$6.99

$

In Stock, Qty 19

0

12

Lawn-Boy 681830

BEARING V

$41.99

$

In Stock, only 1 left!

0

$5.49

$

In Stock, Qty 9

0

Lawn-Boy 682677

DISCONTINUED
(Superseded to 92-4925)

$

$

Not available

14

Lawn-Boy 682970

NEEDS DESCRIPTION
(Superseded to 92-4921)

$241.99

$

In Stock, only 2 left!

0

15

Lawn-Boy 611393

SCREW-HSH

$22.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 677982

LINER ASM

$46.99

$

In Stock, only 4 left!

0

17

Lawn-Boy 683911

BEARING-NEEDLE

$23.99

$

In Stock, Qty 5

0

18

Lawn-Boy 92-4927

BEARING XEV

$

$

Not available

19

Lawn-Boy 92-4923

DISCONTINUED

$

$

Not available

20

Lawn-Boy 606608

See Supercession: 94-5774
(Superseded to 94-5774)

$11.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 303712

RING-RETAINING

$3.49

$

In Stock, Qty 11

0

22

Lawn-Boy 681737

DISCONTINUED

$

$

Not available

23

Lawn-Boy 681831

BEARING V

$24.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 683702

DISCONTINUED

$

$

Not available

Lawn-Boy 610372

SEALER-LOCTITE (6 ML TUBE)

$27.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 613110

SCREW-H.W.HD. F

$

$

Not available

26

Lawn-Boy 609123

PLUG-CORE VF

$3.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 612872

SCREW-HH

$2.49

$

In Stock, Qty 5

0

28

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

29

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

30

$4.49

$

Usually ships in 3-6 days

0

31

Lawn-Boy 611396

SEAL-OIL

$6.99

$

In Stock, Qty 19

0

32

Lawn-Boy 614009

SPARK PLUG

$6.49

$

In Stock, only 2 left!

0

33

Lawn-Boy 693215

C. D. Ignition Module Lead Assy. (Inc. 34-35)
(Superseded to 100-2948)

$125.99

$

In Stock, only 4 left!

0

34

Lawn-Boy 681678

HT LEAD&COVER XEV

$24.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 684698

COVER & TERM. AY S

$7.49

$

Usually ships in 3-6 days

0

36

Lawn-Boy 605120

NUT-CLIP

$4.49

$

In Stock, Qty 7

0

37

Lawn-Boy 607526

See Supercession: 32105-12
(Superseded to 32105-12)

$2.99

$

In Stock, only 2 left!

0

38

Lawn-Boy 611211

SPRING-BRAKE

$15.99

$

Usually ships in 3-6 days

0

39

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

40

Lawn-Boy 608311

NUT-LOCK F

$3.49

$

In Stock, only 3 left!

0

41

Lawn-Boy 613073

C.D. BRKT F

$

$

Not available

42

Lawn-Boy 614343

SCREW F

$3.49

$

In Stock, only 4 left!

0

43

Lawn-Boy 611509

ACTUATOR-LEVER, BRAKE

$5.49

$

In Stock, only 3 left!

0

44

Lawn-Boy 92-6375

See Supercession: 94-5713
(Superseded to 94-5713)

$292.99

$

Usually ships in 3-6 days

0

45

Lawn-Boy 611192

BRACKET-BRAKE F

$129.99

$

Usually ships in 3-6 days

0

46

Lawn-Boy 683968

See Supercession: 93-4307
(Superseded to 93-4307)

$50.99

$

Usually ships in 3-6 days

0

47

Lawn-Boy 317893

DISCONTINUED

$

$

Not available

48

Lawn-Boy 306407

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

49

Lawn-Boy 609891

See Supercession: 700138
(Superseded to 700138)

$

$

Not available

50

Lawn-Boy 683821

WIRE LEAD AY F

$

$

Not available

51

Lawn-Boy 611213

RETAINER S

$2.49

$

In Stock, Qty 14

0

52

Lawn-Boy 683819

See Supercession: 93-4301
(Superseded to 93-4301)

$16.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 609420

See Supercession: 93-1233
(Superseded to 93-1233)

$1.99

$

In Stock, Qty 20+

0

54

Lawn-Boy 683581

BRACE AY F

$23.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 602315

LOCKNUT E

$4.99

$

In Stock, only 2 left!

0

56

$

$

Not available

57

Lawn-Boy 306407

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

58

Lawn-Boy 609900

NUT-SPEED

$9.49

$

Usually ships in 3-6 days

0

Lawn-Boy 92-6253

Short Block Assembly

Note: Not illustrated

$

$

Currently unavailable
