10648 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HOUSING AND REAR DOOR ASSEMBLY Parts Diagram
20" Walk-Behind Mower

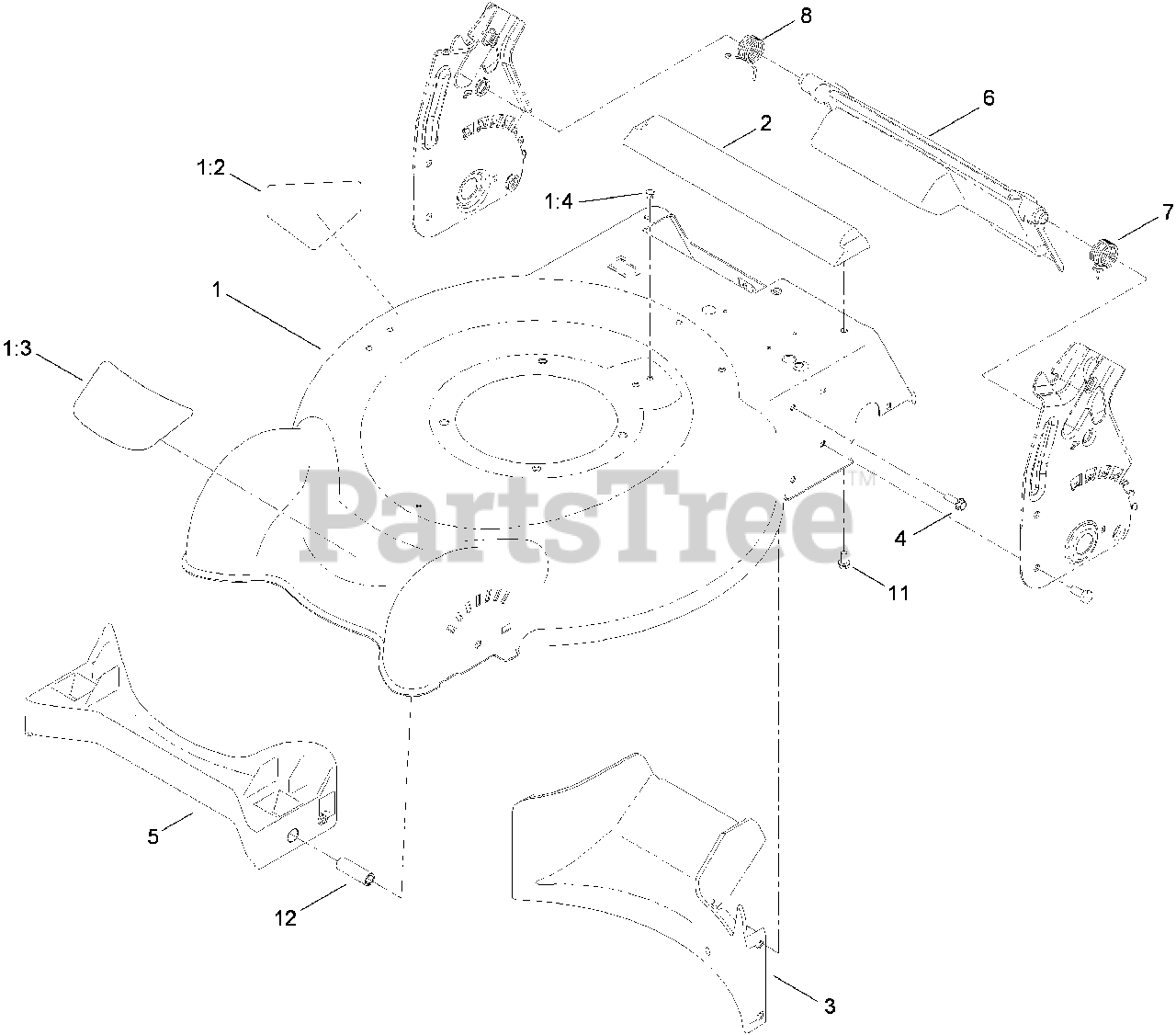

HOUSING AND REAR DOOR ASSEMBLY Parts Diagram
Lawn-Boy 117-4153
HOUSING ASM
$
$
Not available
Lawn-Boy 94-8072
DECAL-DANGER
$6.49
$
In Stock, Qty 12
Lawn-Boy 117-4131
DECAL
$7.49
$
Usually ships in 3-6 days
Lawn-Boy 104-9373
Plug-Dome
$1.99
$
In Stock, only 3 left!
Lawn-Boy 112-8845
CHUTE-REAR
$12.99
$
Usually ships in 3-6 days
Lawn-Boy 112-8814
BAFFLE-REAR
$33.99
$
Usually ships in 3-6 days
Lawn-Boy 46-8091
SCREW-HWH
$3.99
$
In Stock, Qty 20+
Lawn-Boy 115-1471
BAFFLE-FRONT
$
$
Not available
Lawn-Boy 119-7029
Rear Deflector ASM
$22.99
$
In Stock, only 1 left!
Lawn-Boy 112-8848
SPRING-TORSION, LH
$5.99
$
In Stock, only 1 left!
Lawn-Boy 112-8849
SPRING-TORSION, RH
$5.99
$
In Stock, only 2 left!
Lawn-Boy 46-8093
SCREW-PLASTITE
$1.49
$
Usually ships in 3-6 days
Lawn-Boy 117-5992
SPACER-BAFFLE, FRONT
$2.99
$
Usually ships in 3-6 days
