10647 - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE AND BLADE ASSEMBLY Parts Diagram

20" Walk-Behind Mower

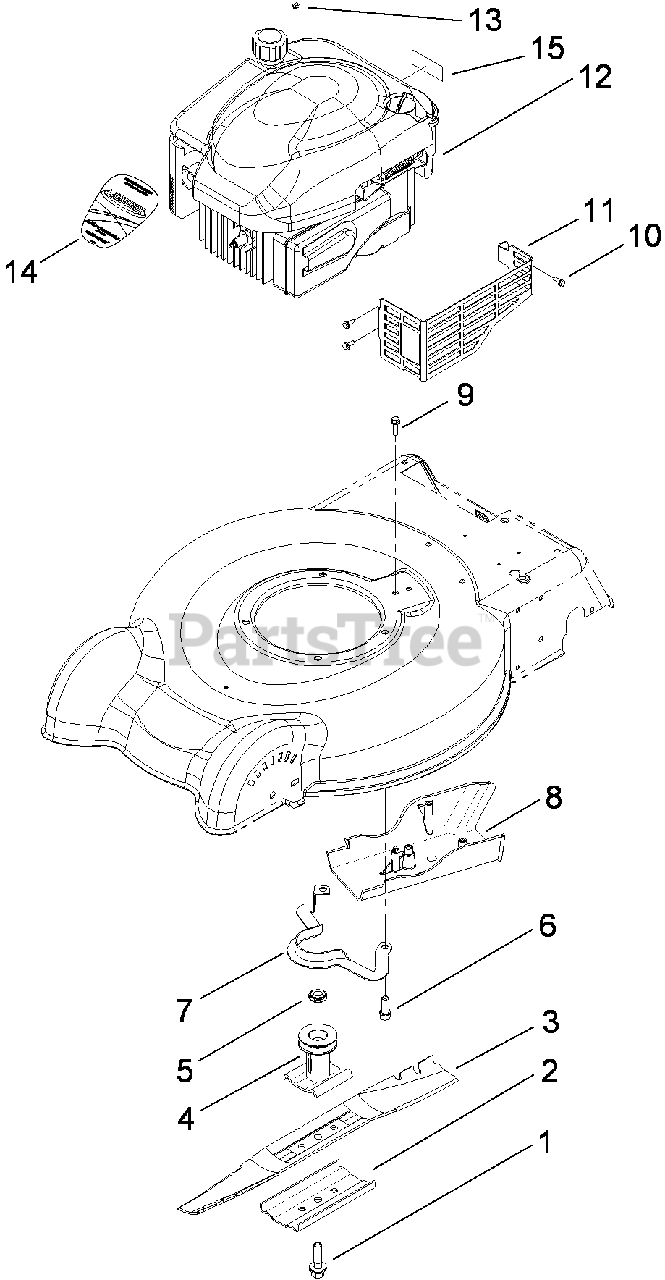

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 105-8579

BOLT-BLADE
(Superseded to 125-2466)

$3.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 108-3766-03

SUPPORT-BLADE

$10.99

$

In Stock, Qty 9

0

3

Lawn-Boy 112-8841-03

BLADE-20 INCH
(Superseded to 133-8181-03)

$28.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 106-3987

BLADE DRIVER ASM

$31.99

$

In Stock, only 2 left!

0

5

Lawn-Boy 106-3999

Spacer-Driver

$3.49

$

In Stock, only 4 left!

0

6

Lawn-Boy 95-1726

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 105-3030-03

Guide-Belt

$14.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 112-8829

COVER-BELT

$19.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 104-7577-03

SHIELD-MUFFLER

$26.99

$

Usually ships in 3-6 days

0

12

ENGINE-BRIGGS, 124L05-0128-F1

Note: Not serviced separately Obtain parts from www.briggsandstratton.com

$

$

Not available

13

Lawn-Boy 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 112-8844

DECAL

$

$

Not available

15

Lawn-Boy 117-2718

DECAL-ARRESTER, SPARK

$7.99

$

In Stock, only 1 left!

0
