10642 - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 124T05-0216-B1 Parts Diagram

20" Walk-Behind Mower

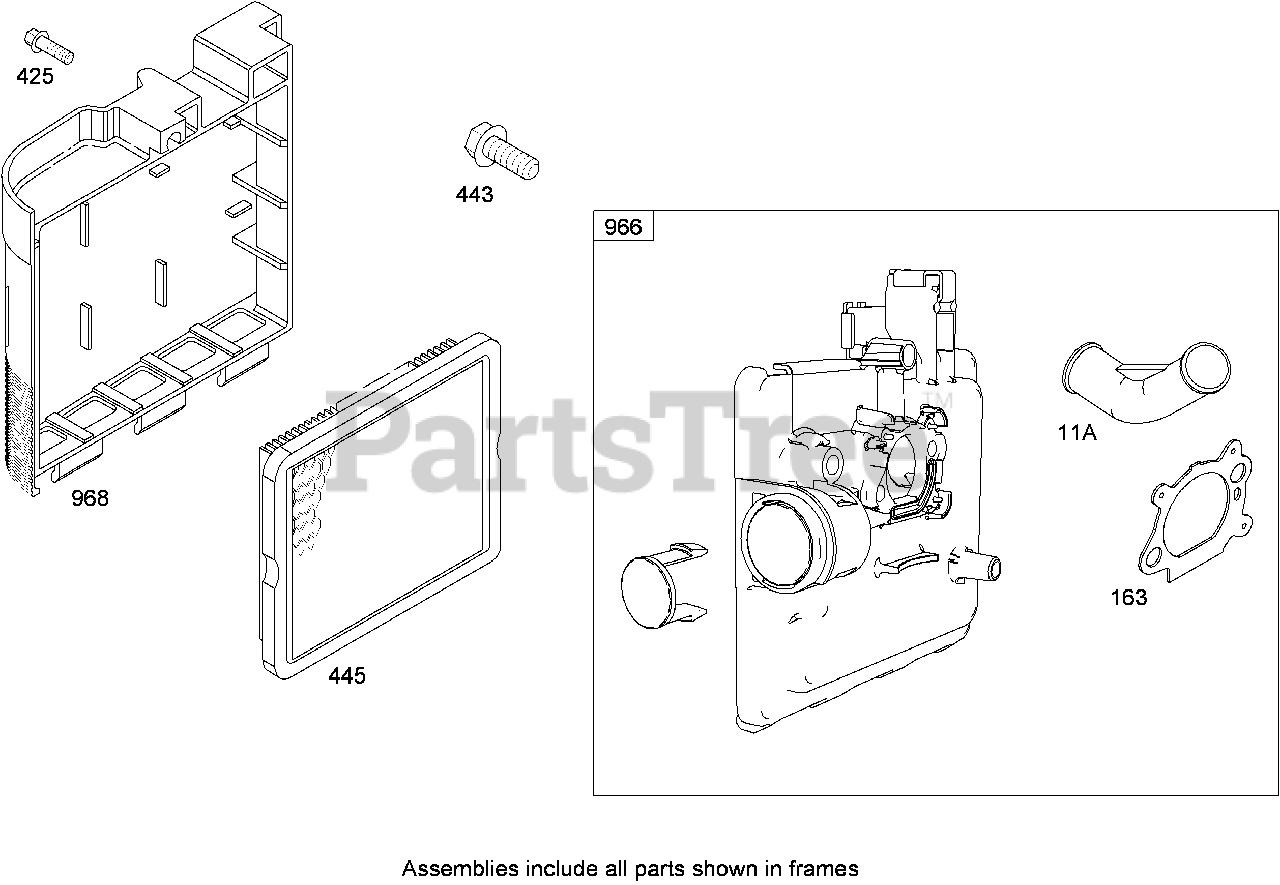

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 124T05-0216-B1 Parts Diagram

  • Title
11A

Lawn-Boy 691923

Tube-Breather (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 795629

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

425

Lawn-Boy 690670

Screw (Air Cleaner Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

443

Lawn-Boy 692523

Screw (Air Cleaner Primer Base)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

445

Lawn-Boy 491588s

Filter-Cartridge, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

966

Lawn-Boy 795259

Base-Primer, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

968

Lawn-Boy 692298

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
