10642 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) HANDLE ASSEMBLY Parts Diagram

20" Walk-Behind Mower

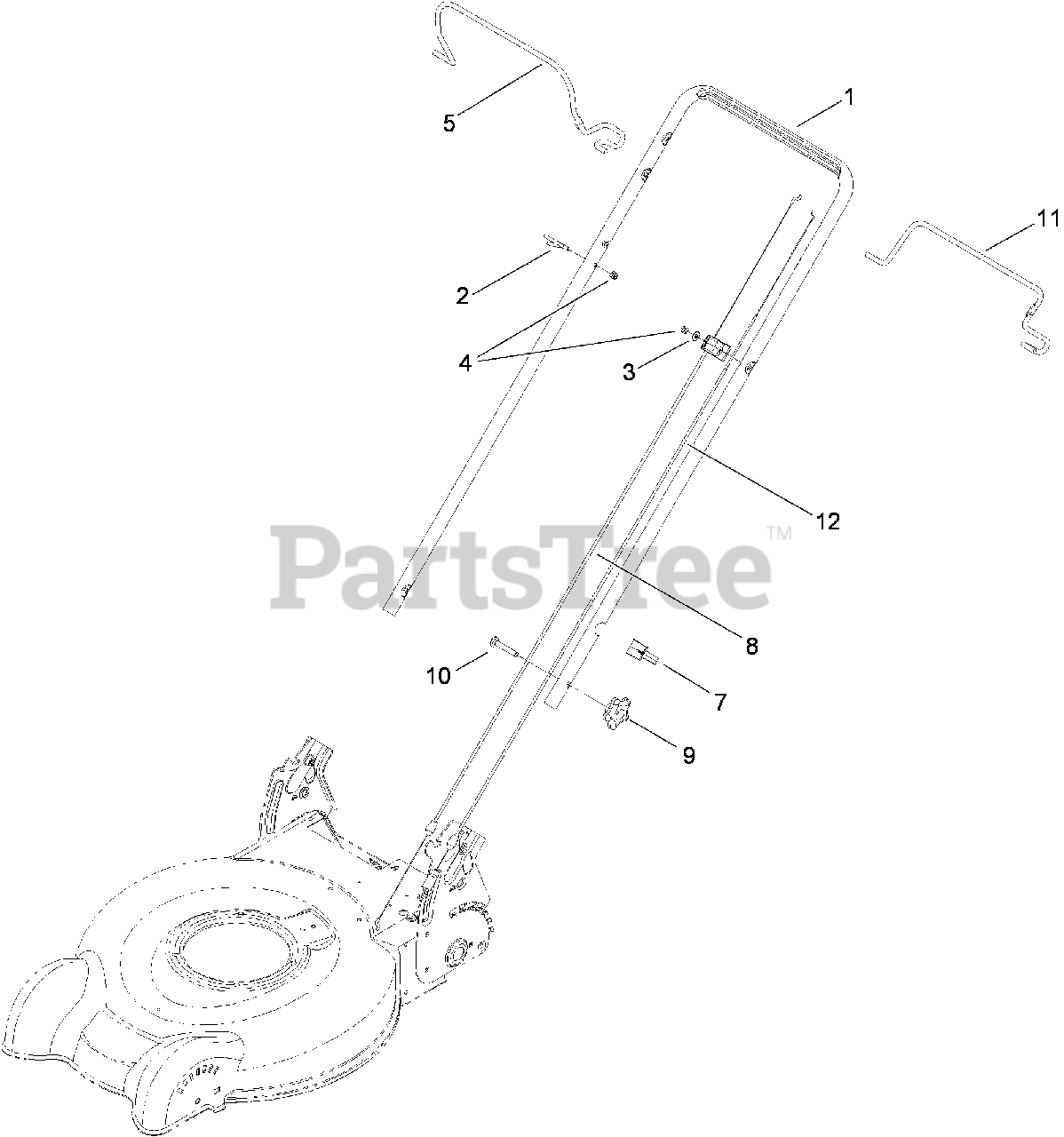

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 112-8833-05

HANDLE
(Superseded to 120-9528-05)

$56.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 86-9671

GUIDE-ROPE

$4.49

$

In Stock, Qty 5

0

3

Lawn-Boy 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 6

0

5

Lawn-Boy 112-8834-02

BAIL-BRAKE, 2-BAIL FLAT
(Superseded to 117-5940-02)

$

$

Not available

7

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 12

0

8

Lawn-Boy 112-8818

CABLE-BRAKE

$33.99

$

In Stock, Qty 9

0

9

Lawn-Boy 117-5976

KNOB-HANDLE, LOCKING

$2.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 3230-6

Screw-CARR

$1.49

$

In Stock, Qty 11

0

11

Lawn-Boy 112-8835-02

BAIL-TRACTION, 2-BAIL FLAT

$28.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 112-8817

CABLE-TRACTION

$33.99

$

In Stock, Qty 7

0
