10642 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) BATTERY AND ELECTRIC START ASSEMBLY Parts Diagram

20" Walk-Behind Mower

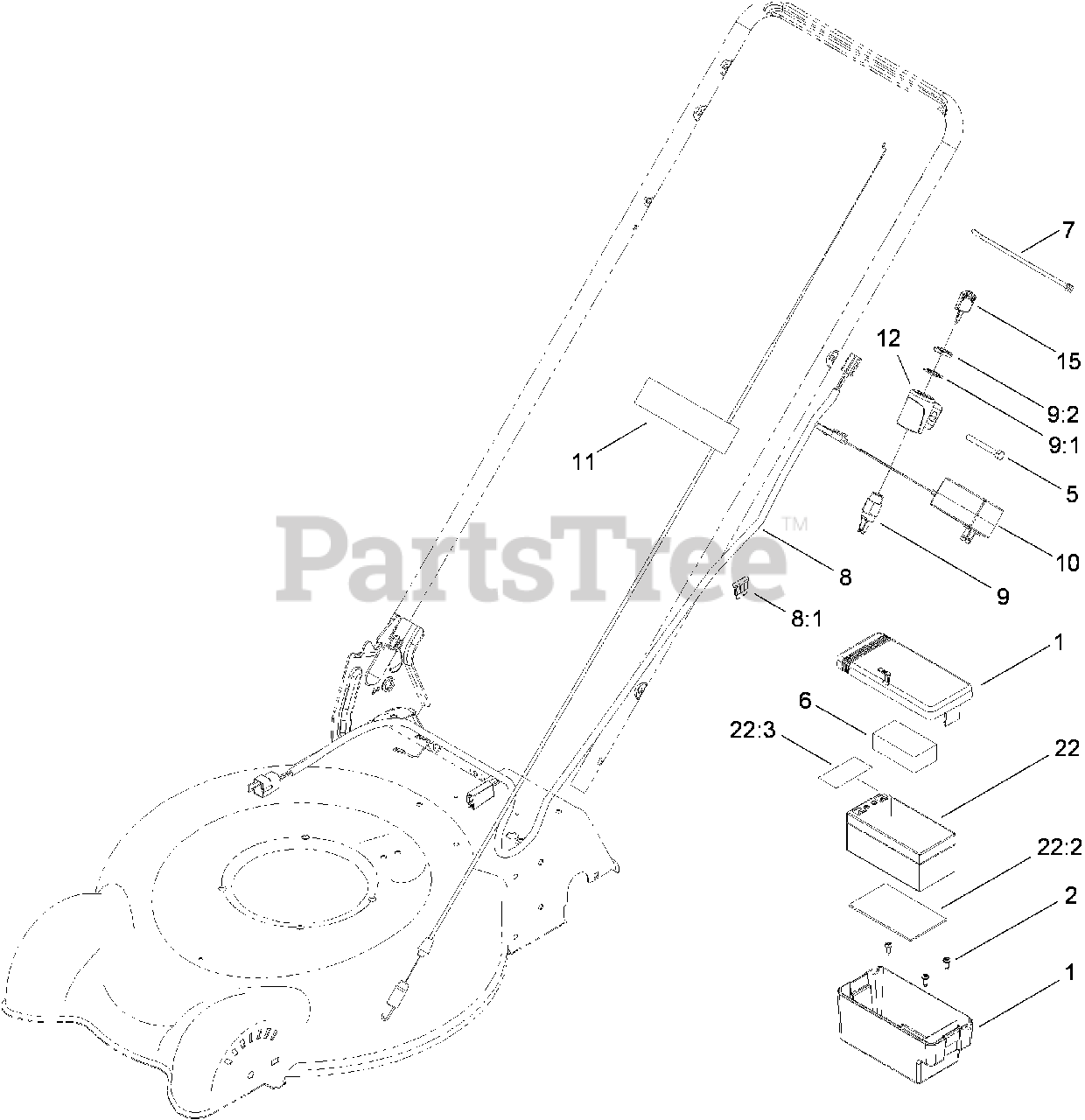

BATTERY AND ELECTRIC START ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 108-4844

BATTERY BOX ASM

$23.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 105-6849

SCREW-THREAD FORMING

$1.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 321-57

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 107-3774

FOAM-BATTERY, TOP

$4.99

$

In Stock, Qty 9

0

7

Lawn-Boy 614249

STRAP-TIE

$1.49

$

In Stock, only 2 left!

0

8

Lawn-Boy 106-8378

HARNESS-WIRE

$104.99

$

In Stock, only 2 left!

0

8:1

Lawn-Boy 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 8

0

9

Lawn-Boy 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 7

0

9:1

Lawn-Boy 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 20+

0

9:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 9

0

10

Lawn-Boy 114-1588

CHARGER-BATTERY
(Superseded to 136-9126)

$41.99

$

In Stock, Qty 18

0

11

Lawn-Boy 104-7953

DECAL-HARNESS

$9.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 108-9760

MOUNT-SWITCH

$5.99

$

In Stock, Qty 11

0

15

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 10

0

22

Lawn-Boy 108-9358

BATTERY

$115.99

$

In Stock, only 2 left!

0

22:2

Lawn-Boy 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 3 left!

0

22:3

Lawn-Boy 112-8763

DECAL-TERMINAL, BATTERY

$3.99

$

Usually ships in 3-6 days

0
