10641 - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) BLOWER HOUSING, FLYWHEEL AND IGNITION ASSEMBLY BRIGGS AND STRATTON 124T02-0205-B1 Parts Diagram

20" Walk-Behind Mower

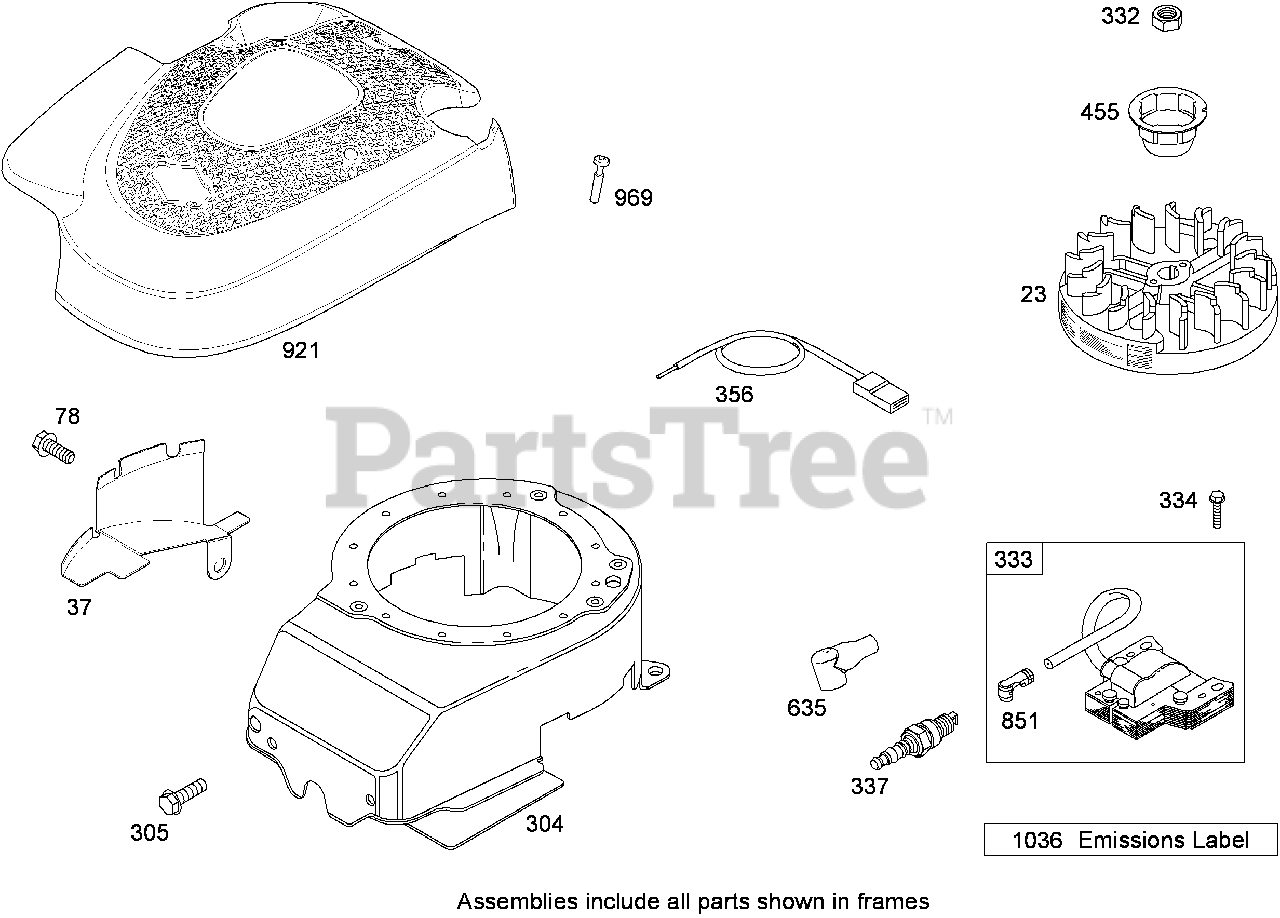

BLOWER HOUSING, FLYWHEEL AND IGNITION ASSEMBLY BRIGGS AND STRATTON 124T02-0205-B1 Parts Diagram

  • Title
23

Lawn-Boy 691987

Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

37

Lawn-Boy 793756

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

78

Lawn-Boy 691108

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

304

Lawn-Boy 790826

Housing-Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

305

Lawn-Boy 691108

Screw (Blower Housing)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

332

Lawn-Boy 690662

Nut (Flywheel)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

333

Lawn-Boy 802574

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

334

Lawn-Boy 691061

Screw (Magneto Armature)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

337

Lawn-Boy 802592s

Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

356

Lawn-Boy 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

455

Lawn-Boy 791960

Cup-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

635

Lawn-Boy 66538s

Boot-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

851

Lawn-Boy 483880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

921

Lawn-Boy 792652

Cover-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

969

Lawn-Boy 691138

Screw (Blower Housing Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1036

Label-Emissions

Note: Not illustrated Not serviced separately Obtain parts from www.briggsandstratton.com

$

$

Not available
