10640 - Lawn-Boy 20" Walk-Behind Mower (SN: 290000001 - 290999999) (2009) ENGINE AND VALVE GASKETS AND CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 124T02-0205-B1 Parts Diagram

20" Walk-Behind Mower

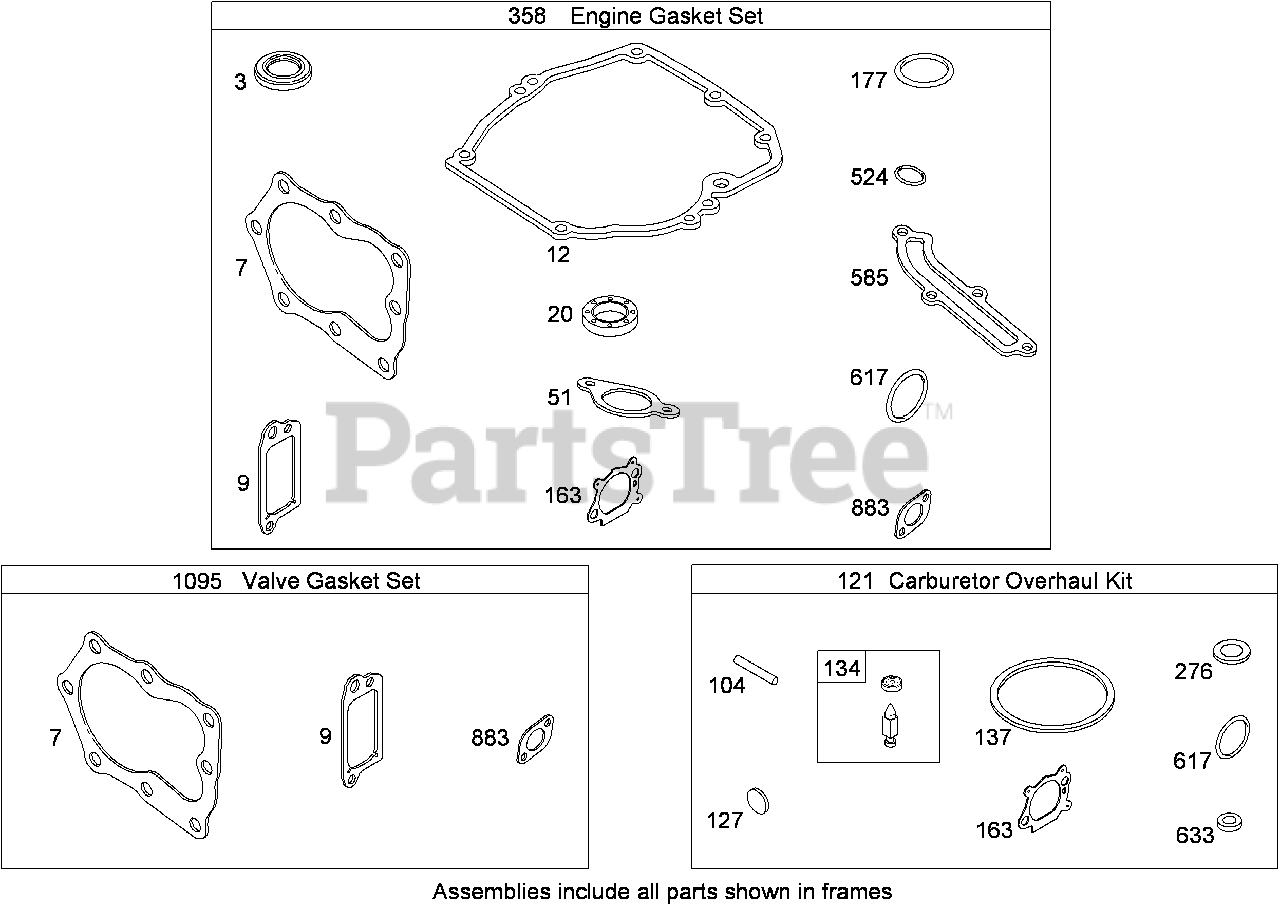

ENGINE AND VALVE GASKETS AND CARBURETOR OVERHAUL KIT BRIGGS AND STRATTON 124T02-0205-B1 Parts Diagram

  • Title

3

Lawn-Boy 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Lawn-Boy 692249

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358) Included in Valve Gasket Set (Ref. No. 1095) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Lawn-Boy 699472

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358) Included in Valve Gasket Set (Ref. No. 1095) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

12

Lawn-Boy 692232

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

20

Lawn-Boy 399781s

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Lawn-Boy 272199s

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104

Lawn-Boy 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

121

Lawn-Boy 498260

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Lawn-Boy 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

134

Lawn-Boy 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Lawn-Boy 796610

Gasket-Bowl, Float (Used After Date Code 08120100)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Lawn-Boy 693981

Gasket-Bowl, Float (Used Before Date Code 08120200)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Lawn-Boy 795629

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

177

Lawn-Boy 691031

Seal-O Ring (Dipstick)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276

Lawn-Boy 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

358

Lawn-Boy 497316

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Lawn-Boy 692296

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

585

Lawn-Boy 691879

Gasket-Passage, Breather

Note: Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Lawn-Boy 270344s

Seal-O Ring (Intake Manifold)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Included in Engine Gasket Set (Ref. No. 358) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

633

Lawn-Boy 691321

Seal-Shaft, Choke Throttle (Throttle Shaft)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

883

Lawn-Boy 691881

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358) Included in Valve Gasket Set (Ref. No. 1095) Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1095

Lawn-Boy 498528

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
