10640 C - Lawn-Boy 20" Walk-Behind Mower (SN: 310000001 - 310999999) (2010) REAR AXLE ASSEMBLY Parts Diagram

20" Walk-Behind Mower

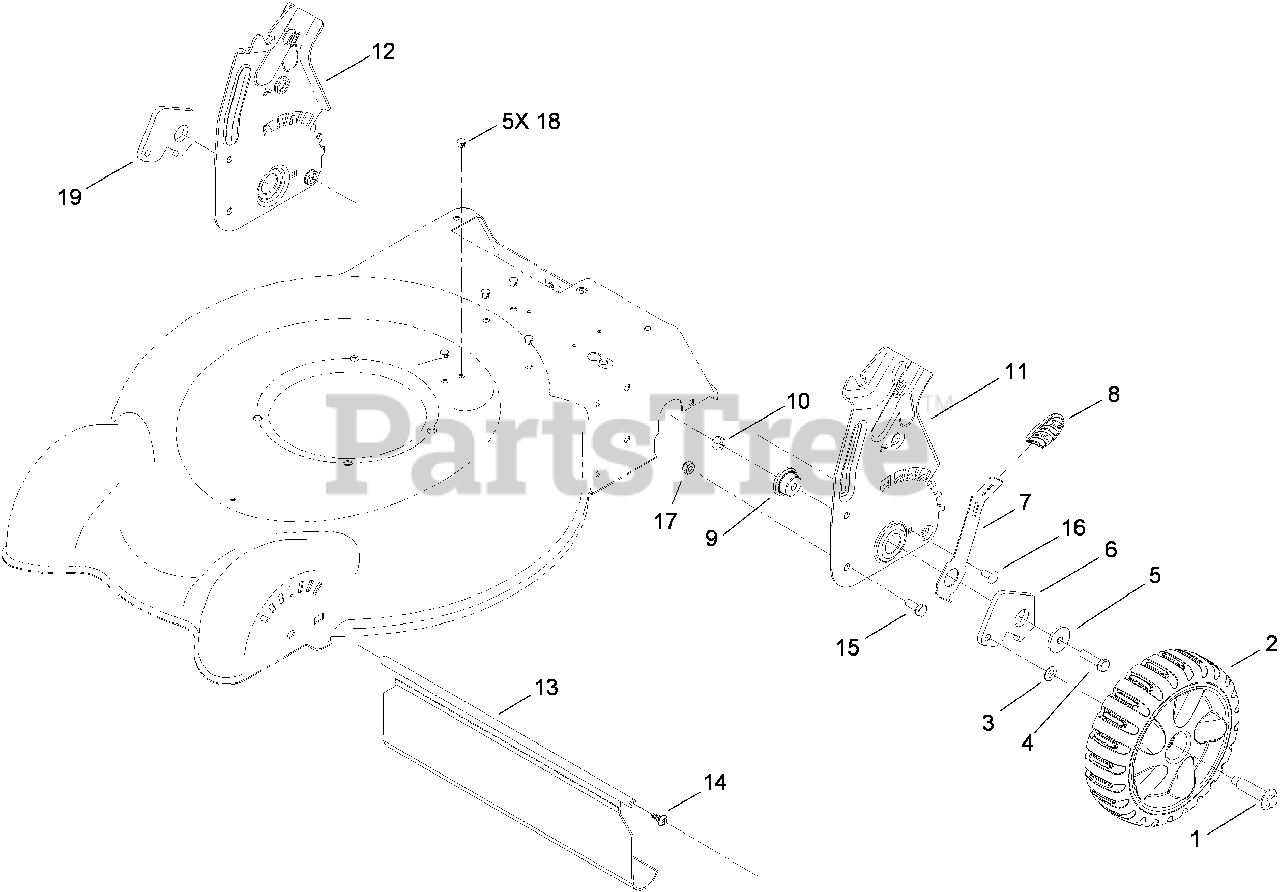

REAR AXLE ASSEMBLY Parts Diagram

  • Title
1

Lawn-Boy 614650

BOLT-SHOULDER

$4.49

$

In Stock, Qty 20+

0

2

Lawn-Boy 107-3898

8 INCH WHEEL ASM
(Superseded to 117-4103)

$36.99

$

In Stock, only 2 left!

0

3

$2.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Lawn-Boy 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 105-1819

Arm-Pivot, Rear (LH)

$12.99

$

In Stock, only 4 left!

0

7

Lawn-Boy 105-1809

Arm-Spring

$11.99

$

In Stock, Qty 13

0

8

Lawn-Boy 105-3042

Knob-Lever, HOC

$4.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 105-1818

Bushing-Mount, HOC

$5.49

$

In Stock, Qty 9

0

10

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 112-8822-03

PLATE-HOC, LH

$

$

Not available

12

Lawn-Boy 112-8823-03

PLATE-HOC, RH

$27.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 112-8768

SHIELD-TRAILING
(Superseded to 120-7010)

$41.99

$

In Stock, Qty 6

0

14

Lawn-Boy 117-1092

SCREW-PTH

$1.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 104-9373

Plug-Dome

$1.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 108-4816

ARM-PIVOT, REAR (RH)
(Superseded to 105-1819)

$12.99

$

In Stock, only 4 left!

0
